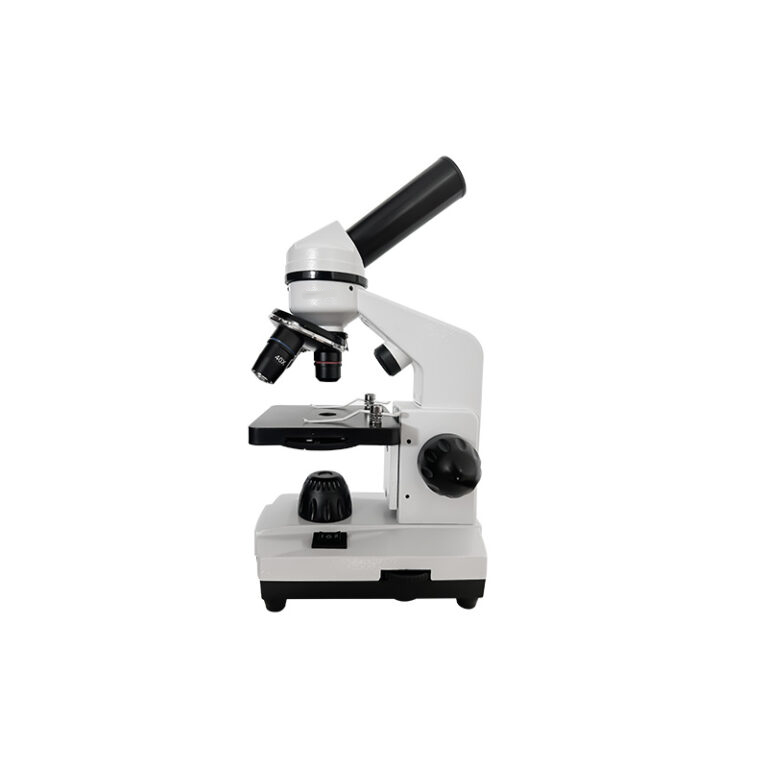

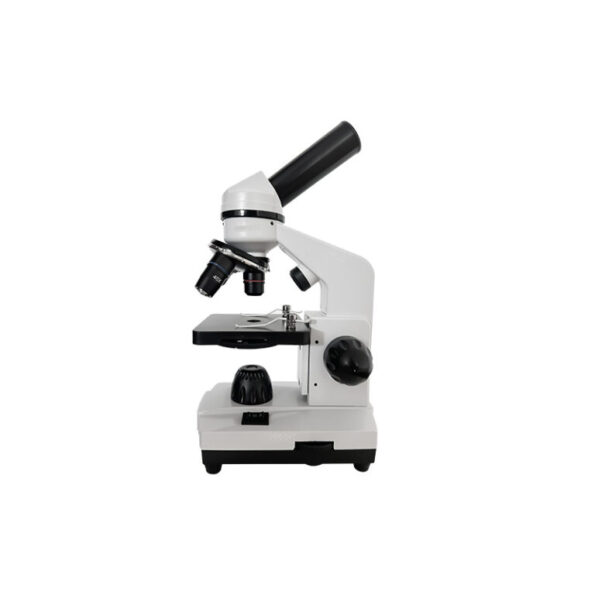

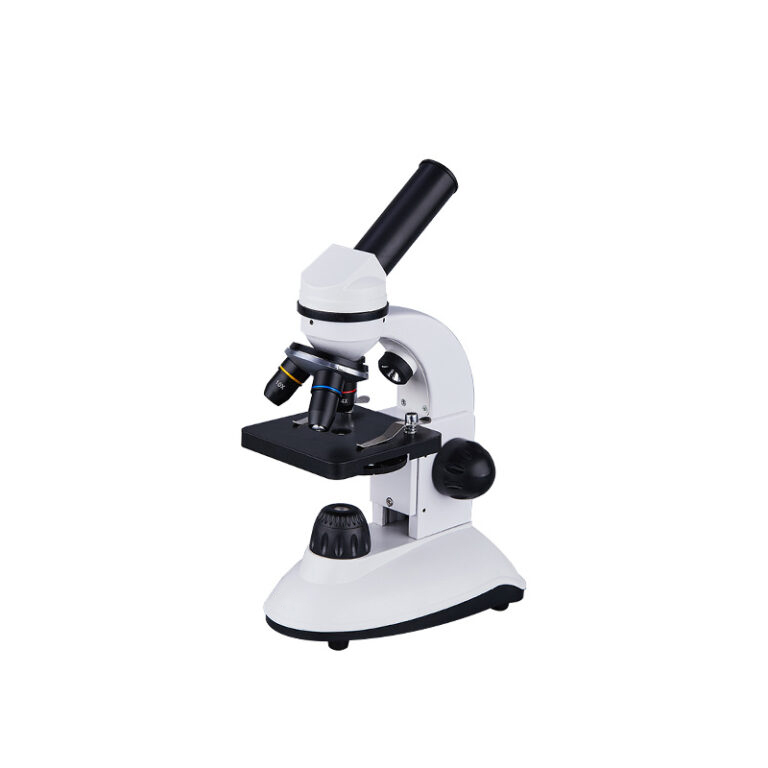

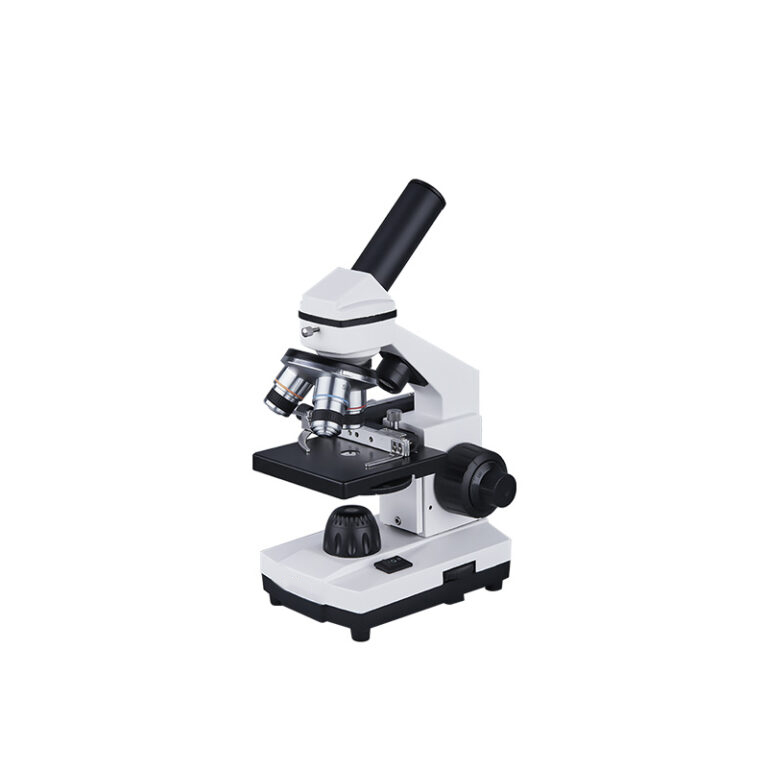

Biological Microscope BM-A106 BM-A118 BM-A206
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BM-A106 BM-A118 BM-A206 BM-T300 BM-T310
Introduction:
The Biological Microscope is a sophisticated optical instrument designed for the detailed examination of biological specimens. Ideal for use in educational institutions, research laboratories, medical facilities, and clinical settings, this microscope offers high-resolution imaging and advanced features to support a wide range of applications.
Biological Microscope BM-A106 BM-A118 BM-A206
Technical Parameters:
| Model | BM-A106 | BM-A118 | BM-A206 | |
| Objective | 4X, 10X, 40X(spring) | √ | √ | √ |
| Eyepiece | Wide field eyepieces WF10X(WF25X or WF20X, WF16X or H16X optional) | √ | √ | √ |
| Viewing Head | Monocular | √ | √ | √ |
| Nosepiece | Triple | √ | √ | √ |
| Stage | Plain stage with paired clips | √ | √ | √ |
| Plain stage with moving scale | ● | / | ● | |
| Focusing | Coarse adjustment focusing | √ | √ | √ |
| Coaxial coarse and fine adjustment focusing | / | / | / | |
| Illumination&Condenser | Rotating disc diaphragm | √ | / | √ |
| N.A=0.65 abbe condenser&rotating disc diaphragm | / | √ | / | |
| Flat concave reflector | / | / | / | |
| Electric light source top LED (incandescent optional) | / | / | / | |
| Electric light source bottom LED(incandescent optional) | / | / | / | |
| Electric light source top and bottom LED(incandescent optional) | √ | √ | √ | |
| Power | Power: battery | √ | √ | √ |
| AC Input 100~230V, DC output 5V | / | √ | √ | |
| Package Size(mm) | 160*220*300 | 160*220*300 | 160*220*300 | |
| Gross Weight(kg) | 1.8 | 2.5 | 2 | |
| Model | BM-T300 | BM-T310 | |
| Objectives | Achromatic Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | √ | √ |
| Plan Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | ● | ● | |
| Infinite Achromatic Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | ● | ● | |
| Infinite Plan Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | ● | ● | |
| Eyepiece | Wide Field Eyepiece: WF10X(18mm), (WF16X optional) | √ | √ |
| Viewing Head | Compensation Free Binocular Head, Inclined at 30° | √ | / |
| Compensation Free Trinocular Head, Inclined at 30° | / | √ | |
| Nosepiece | Quadruple | √ | √ |
| Stage | Double Layer Mechanical Stage Size 140*205mm, Moving Range 77*50mm | √ | √ |
| Focusing | Coaxial Coarse and Fine Adjustment, Focusing Range 30mm, Focusing Interval 0.002mm | √ | √ |
| Condenser | Abbe NA=1.25 with Iris Diaphragm&Filter | √ | √ |
| lllumination | High LED light source | √ | √ |
| Power | AC Input 100~230V, DC output 12V | √ | √ |
| Package Size(mm) | 485*335*255 | 485*335*255 | |
| Gross Weight(kg) | 7.5 | 8 | |
Related Products
Brand: Kazkaz Technologies
Trinocular Inverted Microscope BMI-37XC BMI-37XE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Introduction:
Trinocular head Inverted microscope equipped with full series of objectives that covers most applications. The head implements an extremely innovative design, that permits adjustments to compensate for operator height. Every control is easy to reach and each component has been designed with ease of use in mind. The focusing and specimen translation controls are designed to allow the user to rest wrists on the table. The light intensity regulation is placed very close to the focusing knobs.
Brand: Kazkaz Technologies
Computer continuous zoom stereo microscope XTL-BM-8TD(6.3-50X)
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Purpose
A phase contrast microscope is developed based on the principles of micro optical imaging and the theory of phase contrast microscopy technology. It is suitable for the observation and study of low contrast, unstained live sample specimens in cytology, bacteriology, fresh blood specimens, and aquatic plankton, among others.
The BM-PH three lens phase contrast microscope uses an electric light source, with continuously adjustable brightness. The hinge
d barrel is tilted at 30 ° and can rotate freely 360 degrees.
Brand: Kazkaz Technologies
KAZKAZ XS-208 Digital Laboratory Biological Microscope
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
A microscope (from Ancient Greek: μικρός mikrós ‘small’ and σκοπεῖν skopeîn ‘to look (at); examine, inspect’) is a laboratory instrument used to examine objects that are too small to be seen by the naked eye. Microscopy is the science of investigating small objects and structures using a microscope. Microscopic means being invisible to the eye unless aided by a microscope.
Brand: Kazkaz Technologies
KAZKAZ SZM-45 SZM-45T Binocular Trinocular Stereo Zoom Microscope
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
A microscope (from Ancient Greek: μικρός mikrós ‘small’ and σκοπεῖν skopeîn ‘to look (at); examine, inspect’) is a laboratory instrument used to examine objects that are too small to be seen by the naked eye. Microscopy is the science of investigating small objects and structures using a microscope. Microscopic means be
ing invisible to the eye unless aided by a microscope.
Brand: Kazkaz Technologies
Fluorescence Biological Microscope BFM-100
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Fluorescence Biological Microscope BFM-100
Brand: Kazkaz Technologies
KAZKAZ XY-1 Trinocular Stereo Fluorescence Microscope Manufacturers
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Note: 110V/220V for LED lamp, 220V only for Halogen lamp
Optional: 2.0,3.0 or 5.0 Megapixel, COMOS electronic eyepiece, Ultraviolet, Violet exciting light filter system and ordinary light system. Auxiliary exciting filter EX450-490.
Brand: Kazkaz Technologies
Atomic Force Microscopy
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-AFM1000
Introduction:
Atomic Force Microscopy(AFM) is a high-resolution imaging technique used for analyzing surface characteristics at the nanometer scale. AFM is widely used in materials science, biology, physics, and nanotechnology for studying surfaces and thin films, allowing researchers to capture topographical maps with atomic precision.
Brand: Kazkaz Technologies
Stereo Zoom Microscope
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Introduction:
A microscope (from Ancient Greek: μικρός mikrós ‘small’ and σκοπεῖν skopeîn ‘to look (at); examine, inspect’) is a laboratory instrument used to examine objects that are too small to be seen by the naked eye. Microscopy is the science of investigating small objects and structures using a microscope. Microscopic means being invisible to the eye unless aided by a microscope.
Brand: Kazkaz Technologies

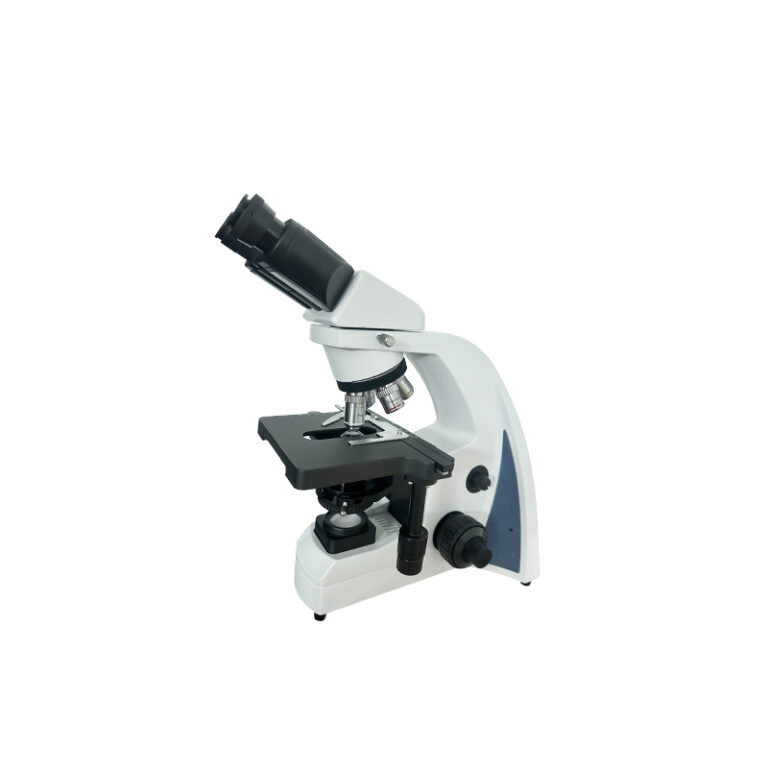

Biological Microscope BM-B100 BM-B101 BM–B102 BM-B103 BM-B104 BM-B105 BM-B106 BM-B108
