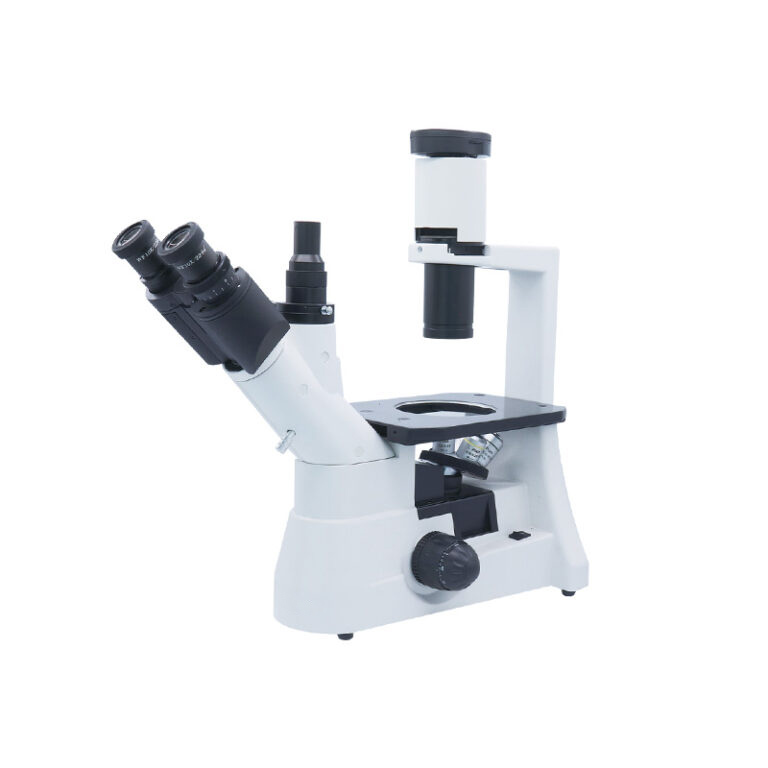

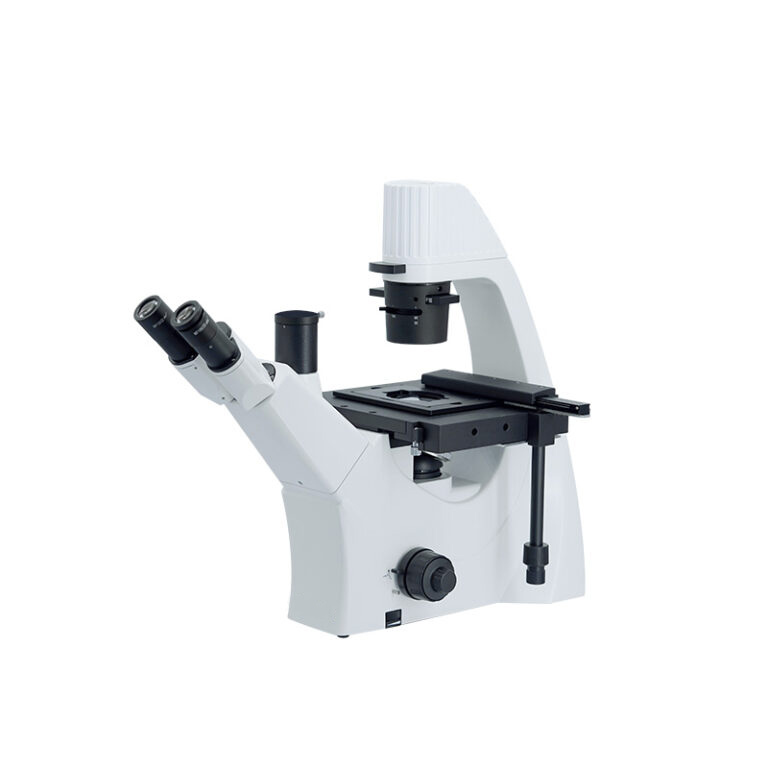

Trinocular Inverted Microscope BMI-37XC BMI-37XE
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Introduction:
Trinocular head Inverted microscope equipped with full series of objectives that covers most applications. The head implements an extremely innovative design, that permits adjustments to compensate for operator height. Every control is easy to reach and each component has been designed with ease of use in mind. The focusing and specimen translation controls are designed to allow the user to rest wrists on the table. The light intensity regulation is placed very close to the focusing knobs.
Trinocular Inverted Microscope BMI-37XC BMI-37XE
Technical Parameters:
| Model | BMI-37XC | BMI-37XE | ||
| Optical System | Infinite optical system | |||
| View Head | Compensation free trinocular head, Inclined at 45°, 360° rotatable, Interpupillary 48~75mm | |||
| Eyepiece | WF10X/22mm, P16X/20mm | P10X/20mm | ||
| Objective | Infinite LWD Plan Achromatic Objective | 4X N.A=0.10 WD=25.00mm 40X N.A=0.60 WD=3.30mm | 10X N.A=0.25 WD=4.27mm 20X N.A=0.40 WD=8.00mm 40X N.A=0.60 WD=3.50mm | |
| Infinite LWD Plan Phase Objective Contrast Objective | 10X N.A=0.25 WD=8.10mm 20X N.A=0.40 WD=4.80mm 40X(Optional) | 10X N.A=0.25 WD=4.27mm 20X N.A=0.40 WD=8.00mm(Optional) 40X N.A=0.60 WD=3.50mm(Optional) | ||
| Focusing | Coaxial coarse&fine adjustable system, pinion and rack adjustable, fine division 0.002mm | |||
| Stage | 242*172mm, glass slide ø110mm, moving range 120*75mm | Culture dish plate 1: 86*129.5mm, Ф87.5mm round culture dish is adaptive Culture dish plate 2: 34*77.5mm, Ф68.5mm round culture dish is adaptive Culture dish plate 3: 57*82mm, Ф60mm round culture dish is adaptive | ||
| Condenser | ELWD condenser with iris diaphragm＆filter, LWD 75mm | |||
| Illumination | Halogen lamp 12V/30W, brightness adjustable | LED lamp, 9W, brightness adjustable | ||
| Power Supply | AC85~265V, 50/60Hz | |||
| Package Size | 655*305*630mm | 650*430*600mm | ||
| Gross Weight | 14kg | 16kg | ||
