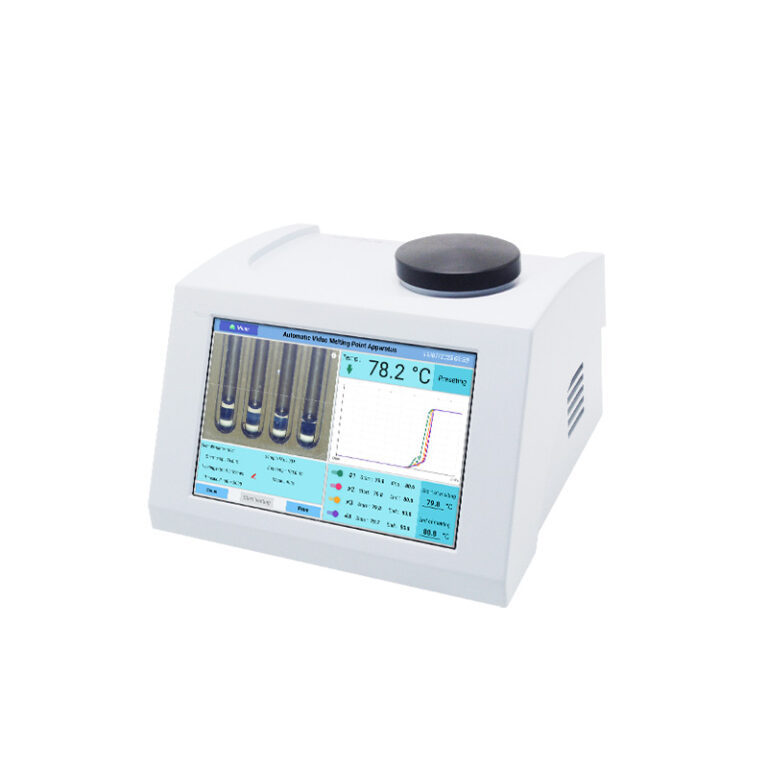

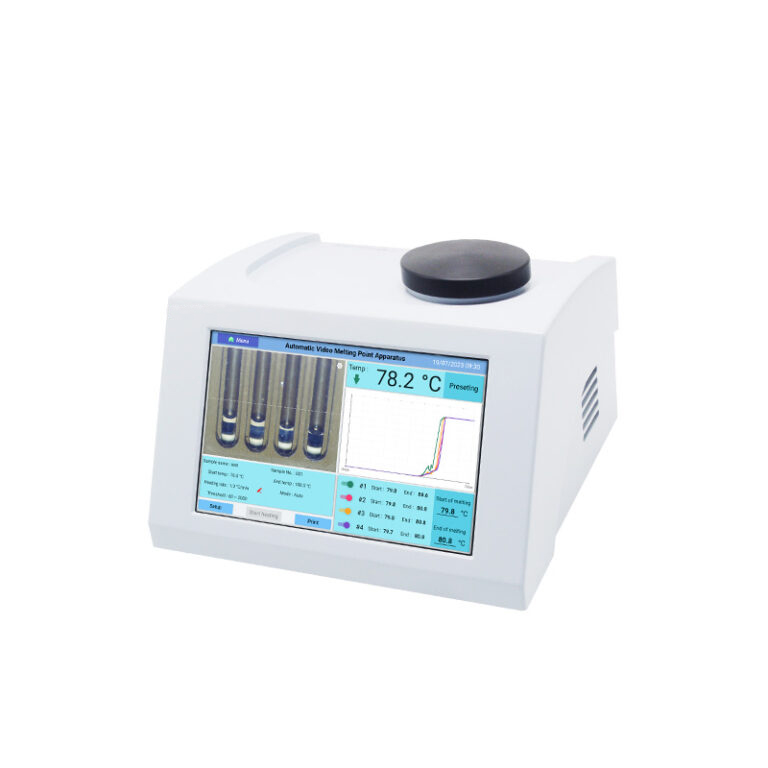

Video Melting Point Apparatus BK-P685 BK-P682
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Introduction:
* Android system with 10.1 inch touch screen, provides melting videos playback.
* 720P HD camera for clear observation.
* Use PID & PWM to control temperature.
* The light source brightness and detection sensitivity can be adjusted to better measure dark color samples.
* It can measure 4 samples at the same time.
Video Melting Point Apparatus BK-P685 BK-P682
Features:
| Model | BK-P685 | BK-P682 |
| Measurement Range | R.T.~400℃ | R.T.~360℃ |
| Measurement Mode | Automatic/visual (high-definition carnera, video caplure, playback monitoring) | |
| Measurement Methods | 200 | 150 |
| User name/password hierarchical management | 200 | 150 |
| Audit Trail | Optional (FDA) | |
| Electronic Signature | YES | |
| Minimum Digital Display | 0.1℃ | |
| Linear Heating-up Rate | 0.1℃/min~20℃/min | |
| Accuracy | ≤200℃±0.3℃; >200℃±0.5℃ | |
| Repeatability | 0.3℃ (heating rate: 1.0℃/min) | |
| Linear Heating Rate Error | ±10% | |
| Number of Capillary | 4 | |
| Capillary Dimensions | Outer diameter: Φ1.4mm, Inner diameter:Φ1.0mm, Height:90mm | |
| Height of Sample | 3mm | |
| Operation System | Android | |
| Date Storage | 128G | 64G |
| Display | 10.1 inches capacitive touch screen | |
| Graph Storage | 40000 | 20000 |
| Interface | 1*RS232, 3*USB, 1*RJ-45, WIFI | |
| Power Supply | 100~240V, 50/60Hz, 150w | |
| Package Size | 495*493*350mm | |
| Gross Weight | 5kg | |
