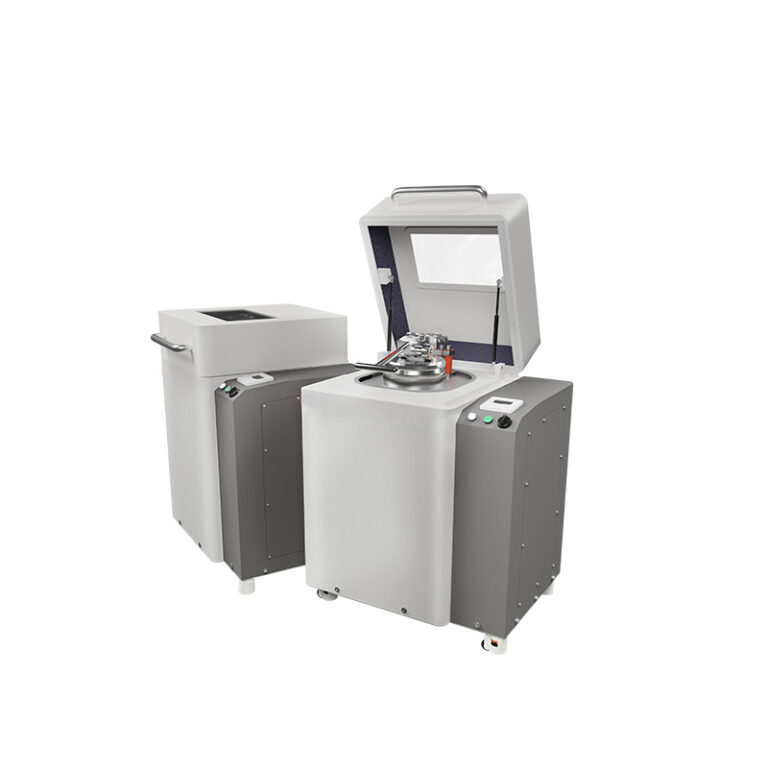

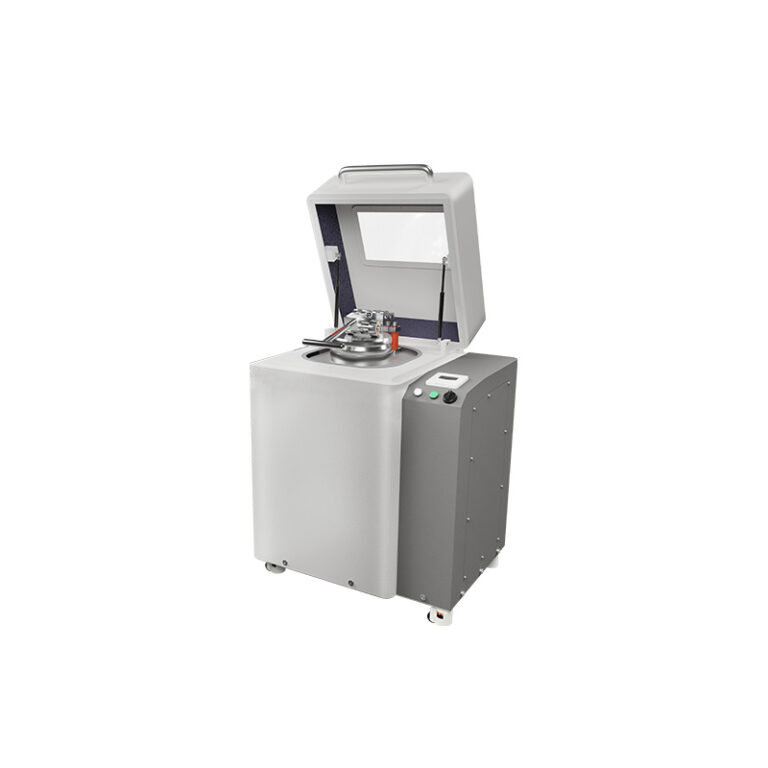

Vibration Mill BK-VBM01
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
It has good horizontal grinding force, high grinding efficiency, comfortable control button feel, simple operation, and a clamping device that achieves fast pressing, sturdy and durable.
Vibration Mill BK-VBM01
Features
1. It has good horizontal grinding force, high grinding efficiency, comfortable control button feel, simple operation, and a clamping device that achieves fast pressing, sturdy and durable.
2. The appearance and posture are generous, and the feet are equipped with pulleys, making it easy to move.
Technical Parameters
| Model | BK-VBM01 |
| Grinding Disc Speed | 1480r/min |
| Control Device | Master switch/button switch/digital time controller |
| Motor Phase Loss/Overcurrent Protection | Have |
| Cover opening and shutdown | Have |
| Grinding Disc Seat | Single |
| Clamping Device | Quick clamping |
| Grinding Disc Material | Tungsten carbide Outsourced steel sleeve |
| Grinding Disc Specifications | 100ml（1-50g） |
| Optional Grinding Disc Material | High chromium steel, agate, zirconia, corundum, and high manganese steel |
| One Grinding Time | 60-180S |
| Feed Particle Size | ≤8mm |
| Grinding Particle Size | ≤0.074mm |
| Equipment support feet | 4 fixed and sliding feet |
| Power Supply | AC 380V±5%, 50Hz, three-phase, external air switch, no plug |
| External Dimensions (mm） | 680*620*915 |
| Net Weight(kg) | 160 |
| Packing Size(mm) | 840*740*1090 |
| Gross Weight(kg) | 185 |
