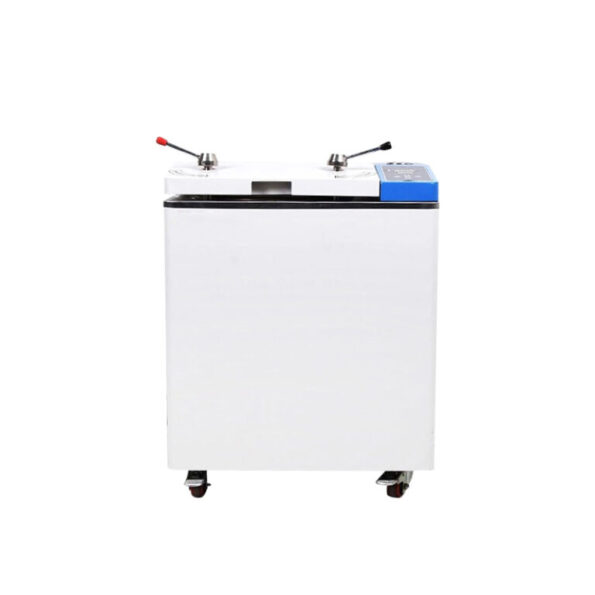

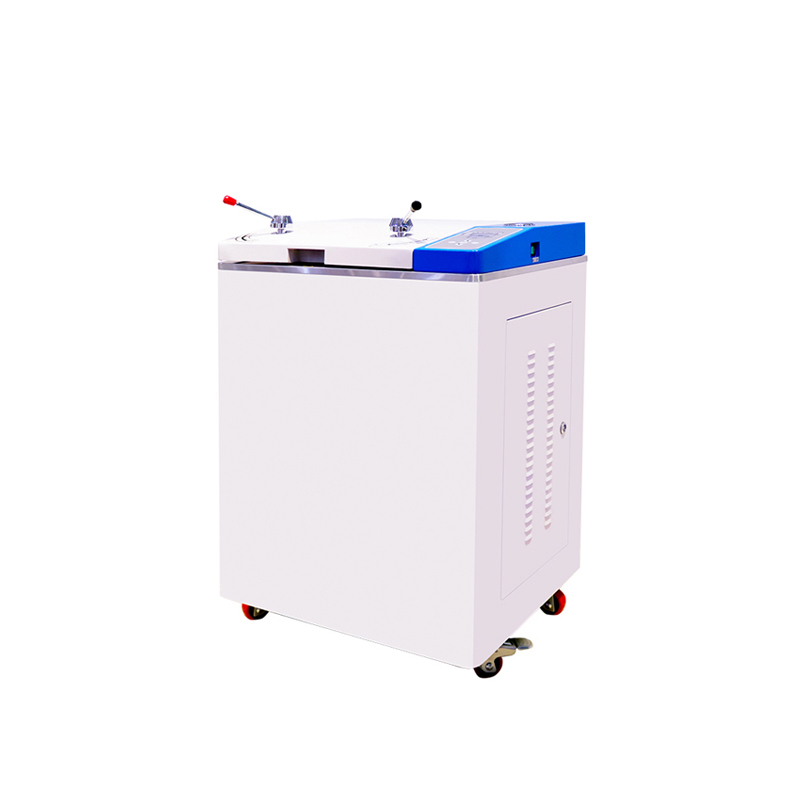

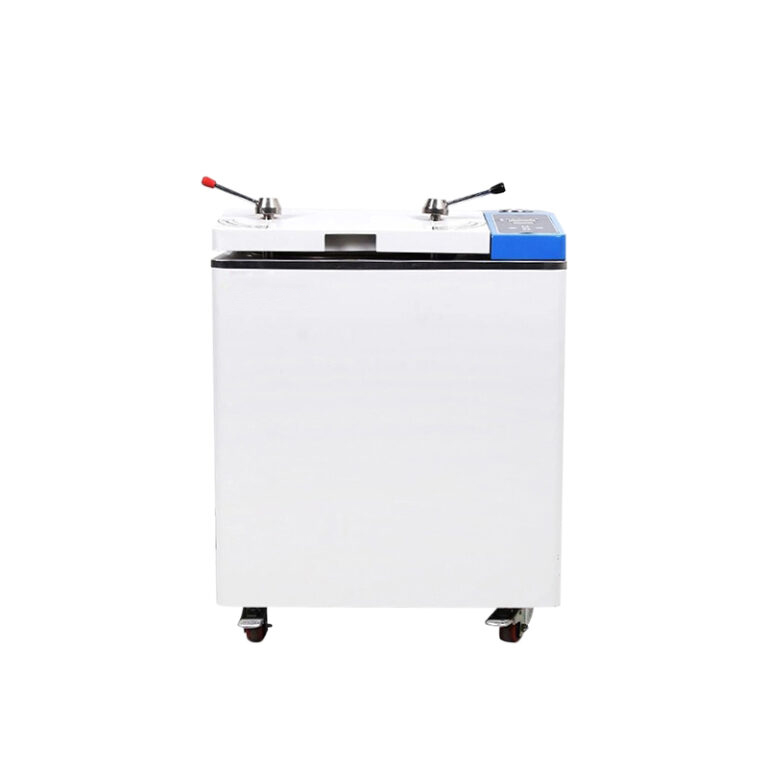

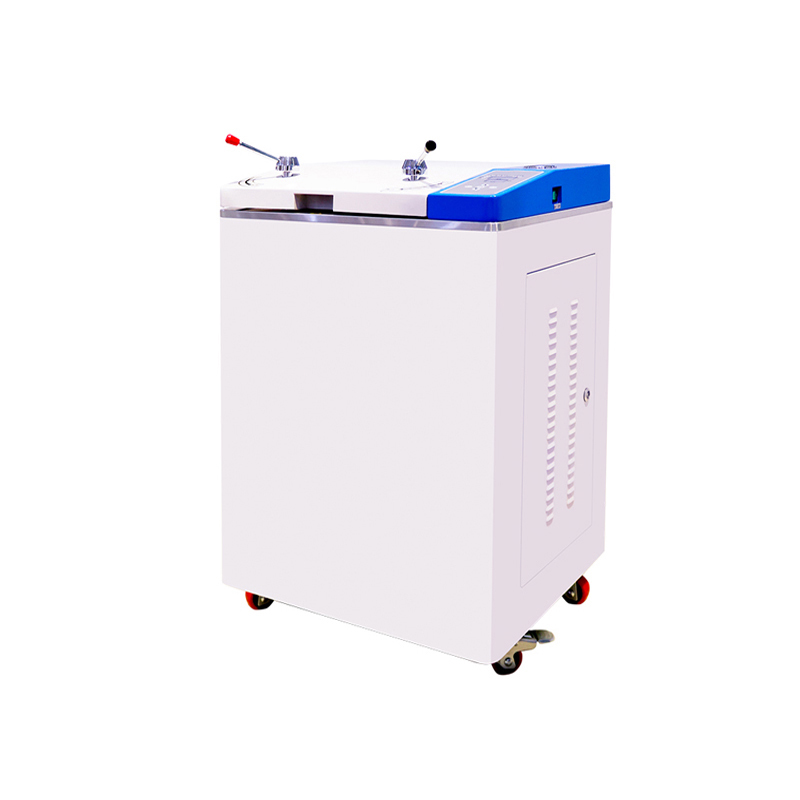

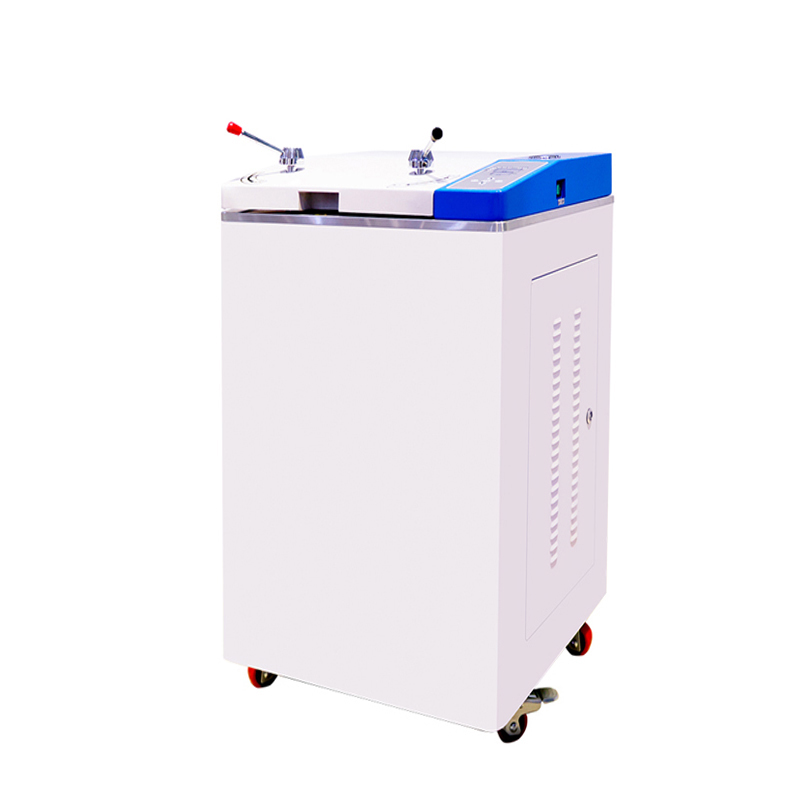

Vertical Sterilization Autoclave BKQ-Z30I
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Application Range：
Vertical Autoclave is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.
Safety Features:
1. Over pressure, safety valve can automatically open to release pressure.
2. Over temperature, the system will stop heating automatically and start alarm.
3. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.
4. Over current, over voltage or electric leakage protection apparatus-air switch.
Technical Features:
1. Complete protection system.
2. Flip-open door structure with spring booster, easy to open.
3. LED displays inner temperature, time and error codes.
4. Automatic exhausting steam function.
5. Reliable mechanical safety interlock feature.
6. External material: Cold rolled steel with anti-bacteria powder coating.
7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.
8. Door cover is wrapped completely, to prevent scald effectively.
9. Radial self-expanding silicone rubber seals with high effect and long using life.
10. Optional printer for recording sterilization data.
11. Optional stainless steel bucket.
Technical Parameters:
Note: It is applicable to the altitude below 3,000m
| Model | BKQ-Z30I | BKQ-Z50I | BKQ-Z75I | BKQ-Z100I |
| Capacity | 30L | 50L | 75L | 100L |
| Chamber Size(mm) | φ385*412 | φ385*515 | φ385*715 | φ385*915 |
| Basket | φ365*265mm, 1pc | φ365*360mm, 1pc | φ365*265mm, 2pcs | φ365*360mm, 2pcs |
| Chamber Material | S30408 | |||
| Designed Pressure | 0.28MPa | |||
| Rated Working Pressure | 0.23MPa | |||
| Max Temperature | 150℃ | |||
| Working Temp Range | 105～136℃ | |||
| Temp. Display Accuracy | 0.1℃ | |||
| Timing Range | 0~999min | |||
| Dynamic Pulse Exhaust Time | 0~9 times | |||
| Water Requirement | Distilled water or demineralized water | |||
| Standard Accessories | SS basket*1pc, SS tray*1pc | SS basket*2pcs, SS tray*1pc | ||
| Consumption | 4KW | |||
| Power Supply | AC110/220V±10%, 50/60Hz | |||
| External Size(W*D*H)mm | 645*610*710 | 645*610*810 | 645*610*945 | 645*610*1150 |
| Packing Size(W*D*H)mm | 750*745*950 | 750*745*1100 | 750*745*1240 | 750*745*1450 |
| Gross Weight(kg) | 100 | 103 | 114 | 122 |
