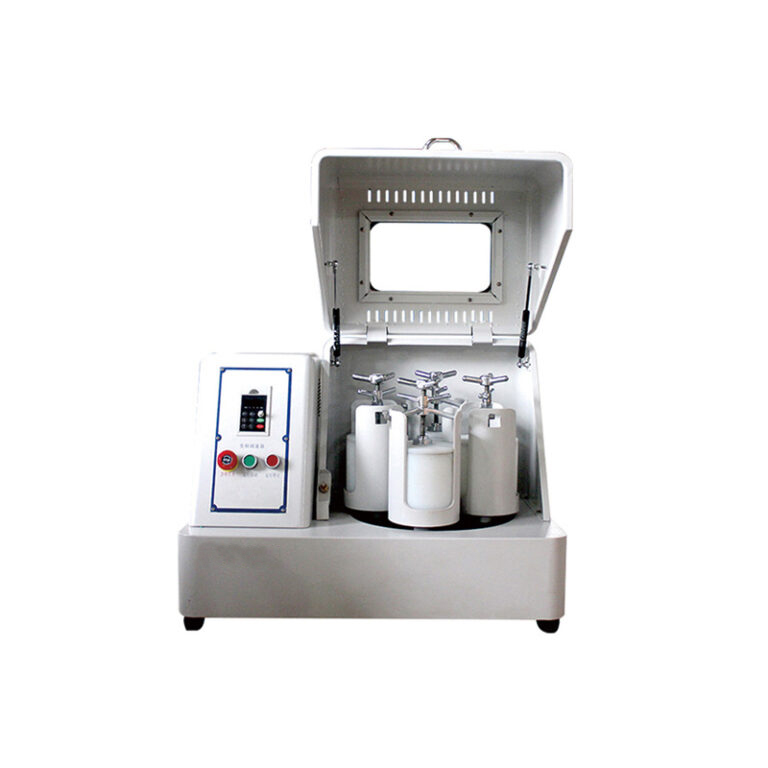

Vertical Planetary Ball Mill(Square Type)
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*3D curve shape design.
*Special gear with low noise.
Vertical Planetary Ball Mill(Square Type)
Technical Parameters:
| Model | BKBM-V2S | |
| Capacity | 2L | |
| Volume of Each Capacity | 50~500ml | |
| Pot Quantity | 4pcs | |
| Running Time Range | 1~9999min | |
| Reciprocal Running Time | 1~999min | |
| Adjustable Speed Revolution | Revolution | 35~335rpm |
| Rotation | 70~670rpm | |
| Noise | 60±5dB | |
| Speed Control Mode | Frequency Control | |
| Transmission Mode | Gear Drive | |
| Working Mode | 2 or 4 pots can be used each time | |
| Maximum Sample Volume (material + grinding ball) | 2/3 of the volume of the ball mill tank | |
| Feed Size | Soft and Crispy material<10mm, Other materials<3mm | |
| Out-put Granularity | Minimum Granularity can be reached to 0.1um | |
| Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation | |
| Consumption | 0.75KW | |
| Power Supply | AC110/220V±10%, 50/60HZ | |
| External Size(W*D*H)mm | 770*470*570 | |
| Package Size(W*D*H)mm | 820*540*680 | |
| Net Weight(kg) | 93 | |
| Gross Weight(kg) | 113 | |
| Note: Both pot and ball are optional. Fora ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. | ||
