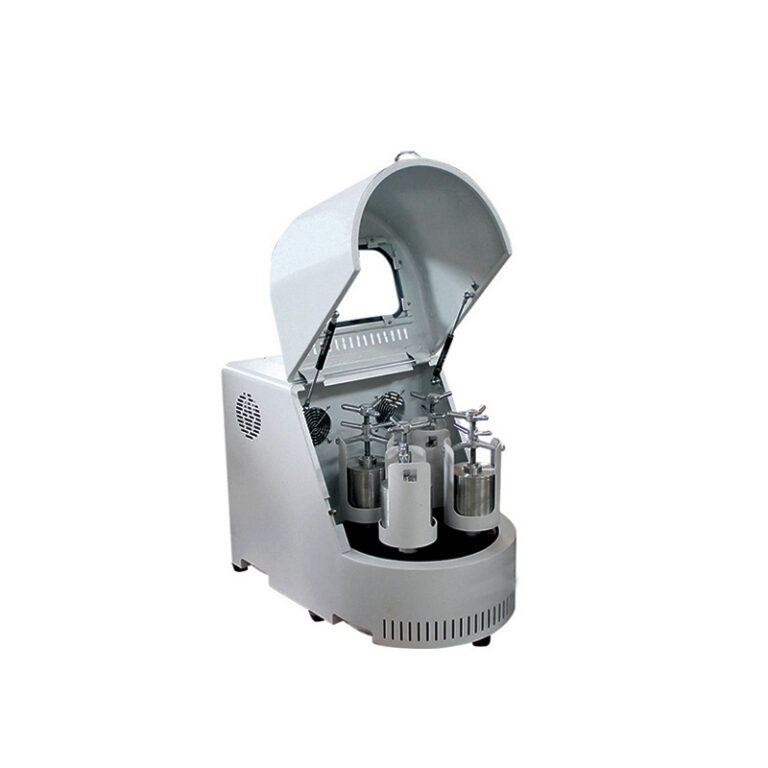

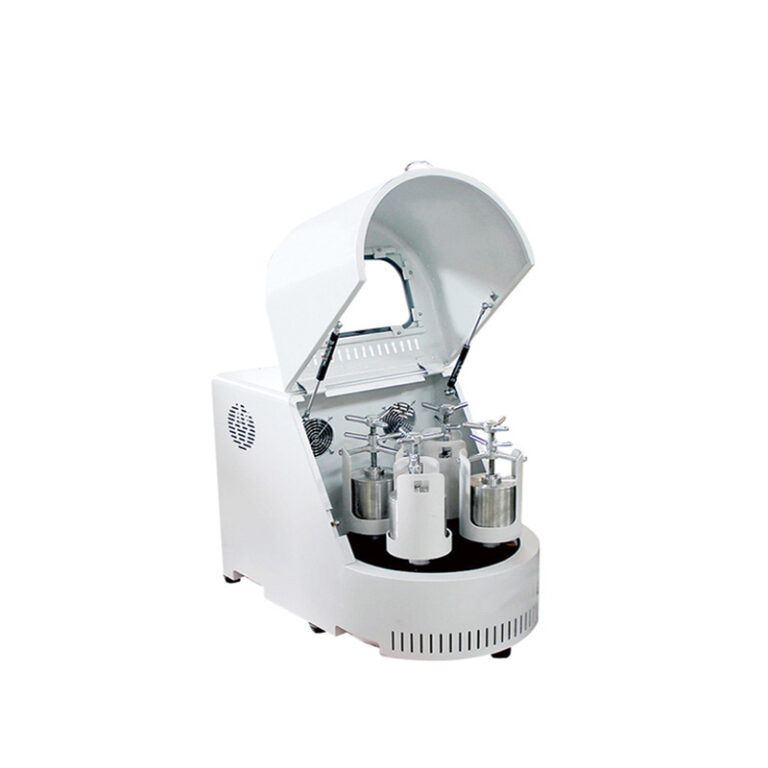

Vertical Planetary Ball Mill(Semi-circle Type)
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Application:
Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as
Vertical Planetary Ball Mill(Semi-circle Type)

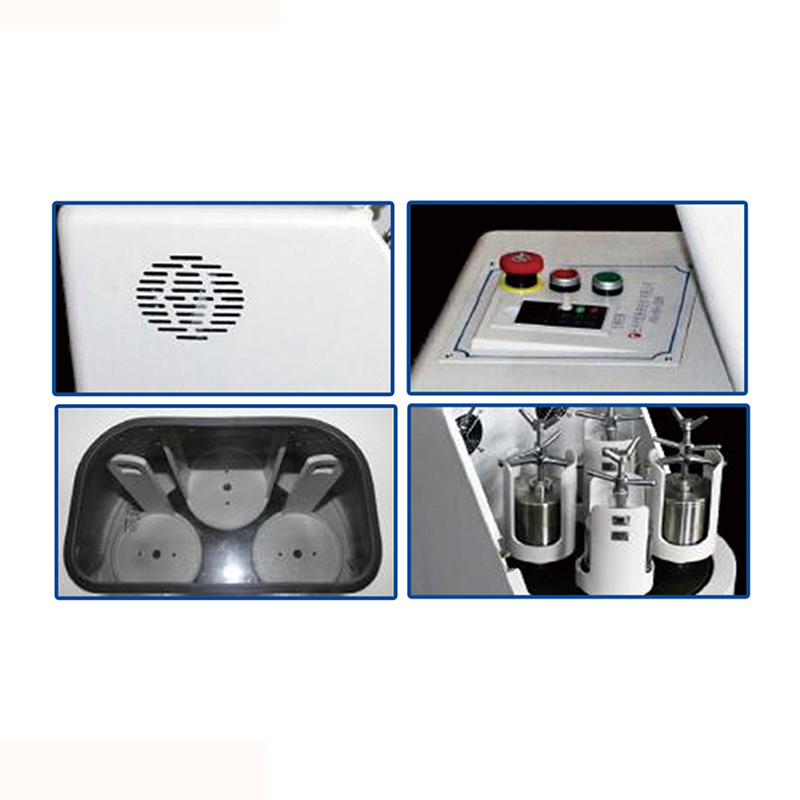

Features:
* 3D curve shape design.
* Special gear with low noise.
Technical Parameters:
| Model | BKBM-V0.4 | BKBM-V2 |
| Capacity | 0.4L | 2L |
| Volume of Each Capacity | 50-100ml | 50~500ml |
| Pot Quantity | 4 pcs | |
| Running Time Range | 1~9999min | |
| Reciprocal Running Time | 1~999min | |
| Adjustable, Revolution | 45~435rpm | 35~335rpm |
| SpeedRotation | 90~870rpm | 70~670rpm |
| Noise | 58±5dB | 60±5dB |
| Speed Control Mode | Frequency Control | |
| Transmission Mode | Gear Drive | |
| Working Mode | 2 or 4 pots can be used each time | |
| Maximum Sample Volume (material + grinding ball) | 2/3 of the volume of the ball mill tank | |
| Feed Size | Soft and Crispy material<10mm, Other materials<3mm | |
| Out-put Granularity | Minimum Granularity can be reached to 0.1um | |
| Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation | |
| Consumption | 0.25KW | 0.75KW |
| Power Supply | AC110/220V±10%, 50/60HZ | |
| External Size(W*D*H)mm | 530*300*340 | 750*470*565 |
| Package Size(W*D*H)mm | 595*360*485 | 820*530*720 |
| Net Weight(kg) | 29 | 80 |
| Gross Weight(kg) | 50 | 100 |
| Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. | ||
