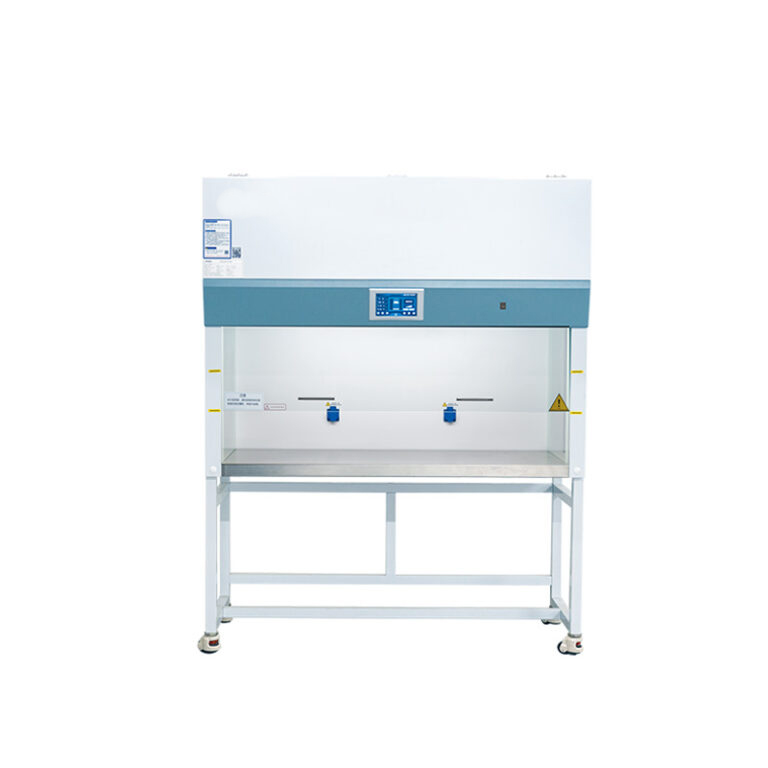

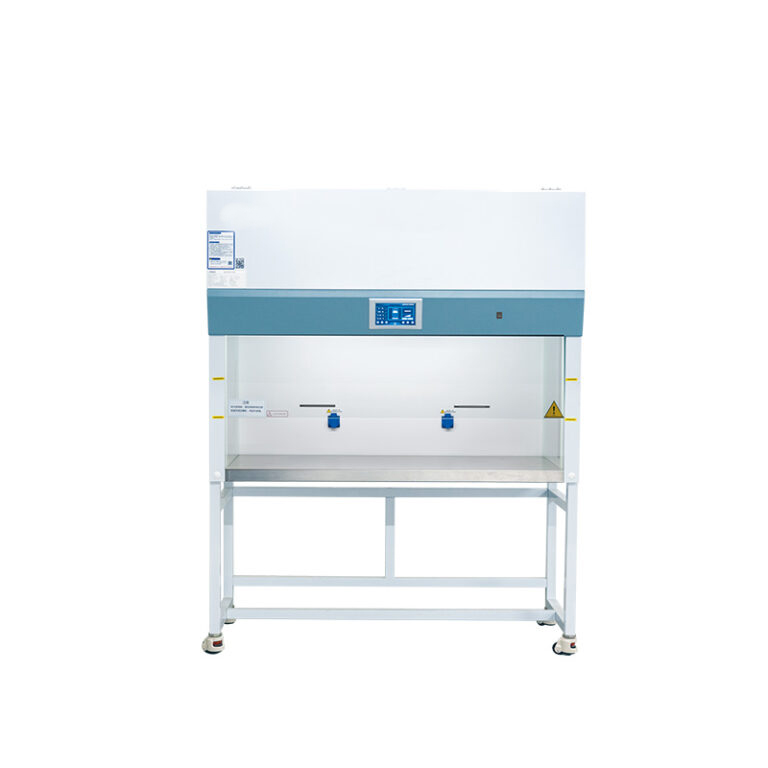

Vertical Laminar Flow Cabinet BBS-DDC-S BBS-SDC-S
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BBS-DDC-S BBS-SDC-S
Introduction:
Laminar flow cabinet is an equipment which creates partial particles-free environment. Air flow pattern includes horizontal and vertical type, this laminar flow cabinet is vertical type.
Features:
1. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.
2. Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter.
3. Work zone is made of SUS304 material, beautiful and corrosion resistance.
4. The front and side Windows are made of 5mm thick tempered glass.
5. The base stand and casters are integrated design, which can be moved safely through the casters and can also be fixed and leveled.

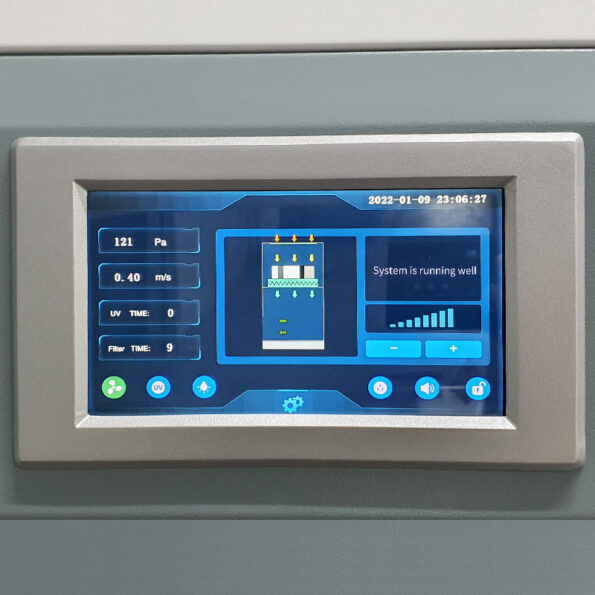

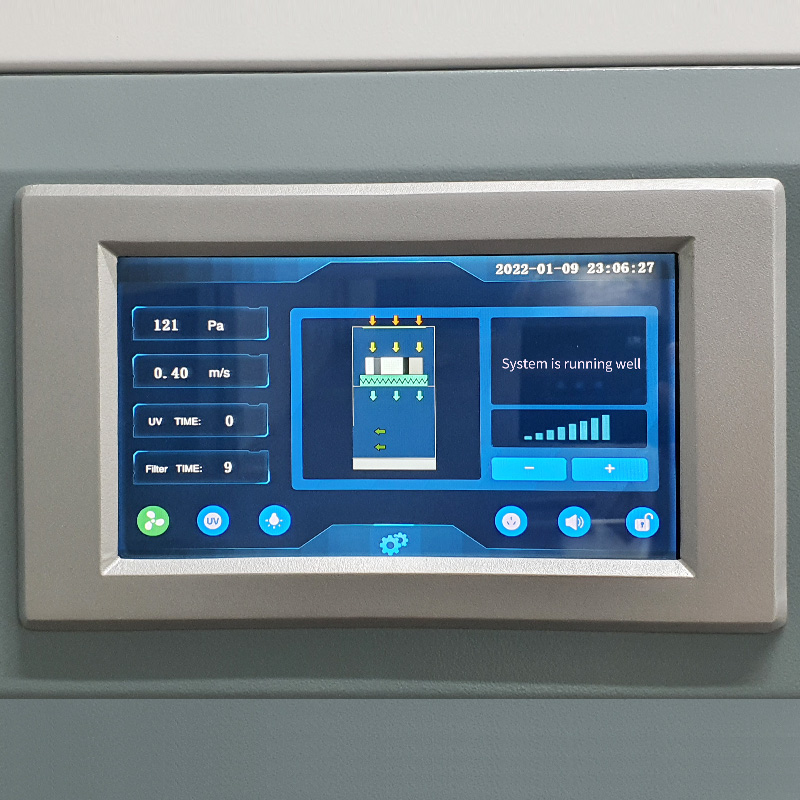

6. 7-inch color touch screen, password configurable, real-time display of running status (air velocity, pressure, timer, UV lamp time, HEPA filter running time, running state).
7. With ultraviolet lamp, fan appointment timing function.

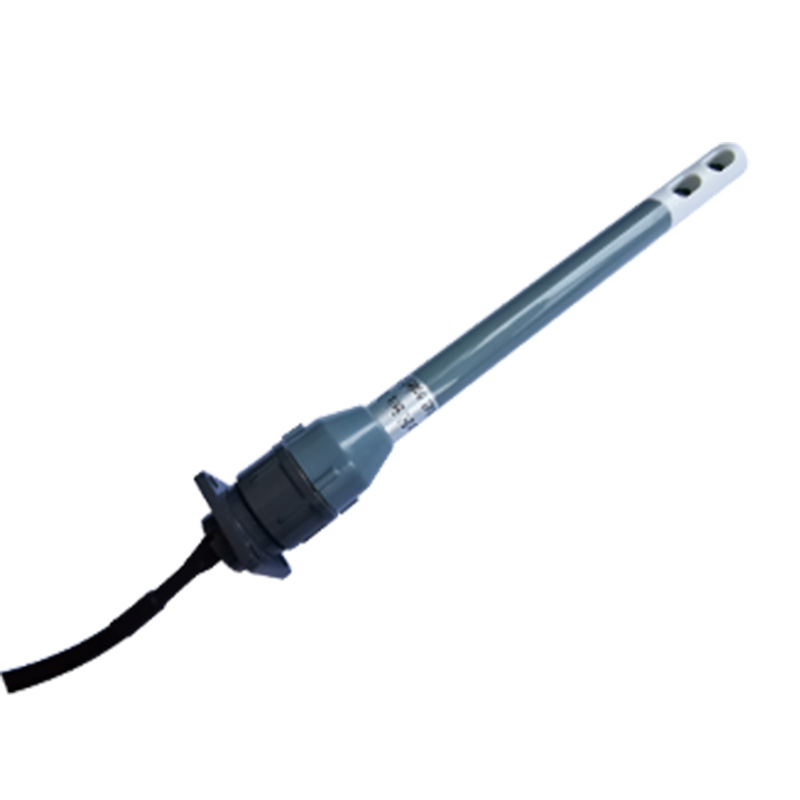

8. Equipped with wind speed sensor, display real-time wind speed, more accurate.
9. Perfect alarm system:
(1) Ultra-high filter pressure alarm
(2) Filter failure replacement alarm
(3) Front window opening safe height alarm
(4) Low wind speed alarm
10. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.
Technical Parameters:
| Model | BBS-DDC-S | BBS-SDC-S |
| External Size(W*D*H) | 1060*620*1850mm | 1460*620*1850mm |
| Internal Size(W*D*H) | 935*530*650mm | 1335*530*650mm |
| Work Surface Height | 750mm | |
| Safety Height | 200~350mm | |
| Max Opening | 400mm | |
| Display | 7-inch color touch screen | |
| Airflow Velocity | 0.30~0.45m/s | |
| Material | Working Area: 304 stainless steel; Main Body: 1.0mm cold-rolled steel with anti-bacteria powder coating; Front Window: 5mm toughened glass, anti-UV. | |
| Pre-filter | Polyester fiber | |
| HEPA Filter | One, 99.995% efficiency at 0.3μm | |
| Front Window | Manual | |
| Noise | ≤65dB(A) | |
| Illumination | ≥300lx | |
| Vibration | ≤5μm(rms) | |
| Safety | Colonies number≤0.5CFU/30min | |
| Clean Level | ISO level 5(Class 100) | |
| Waterproof Sockets | Two sockets, Max. Power: 1000W | |
| Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) | |
| Consumption | 1150W | 1250W |
| LED Lamp | 12W*1 | 16W*1 |
| UV Lamp | 20W*1 | 40W*1 |
| Standard Accessories | Base stand, LED lamp, UV lamp, Waterproof socket*2 | |
| Package Size(W*D*H) | 1240*900*1350mm | 1640*900*1350mm |
| Gross Weight | 185kg | 231kg |
