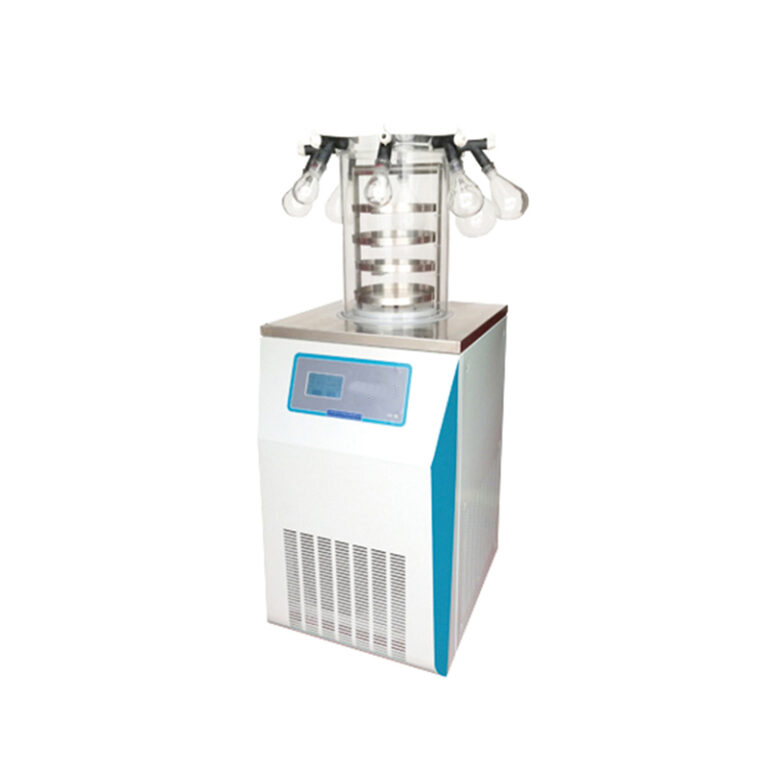

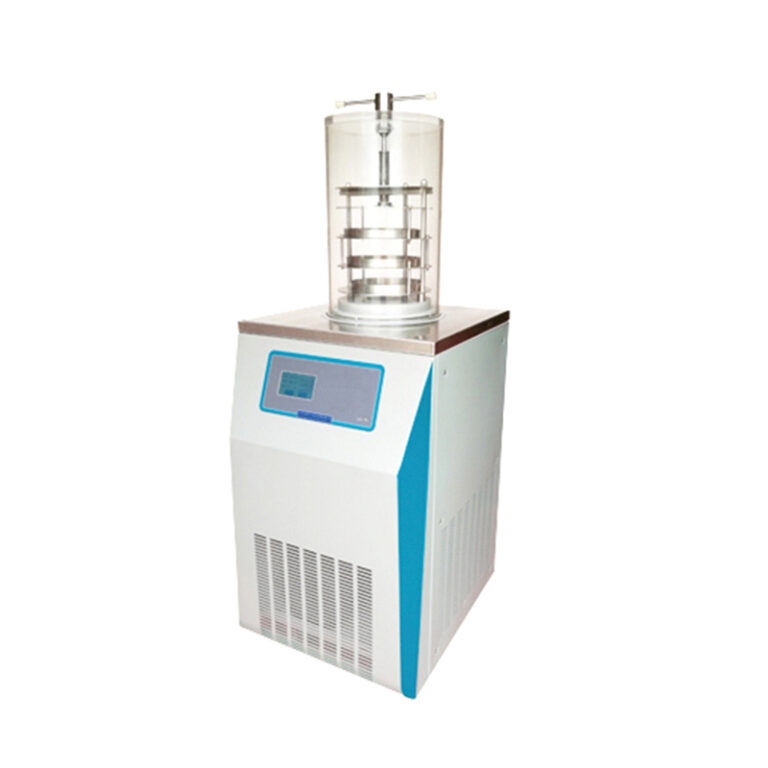

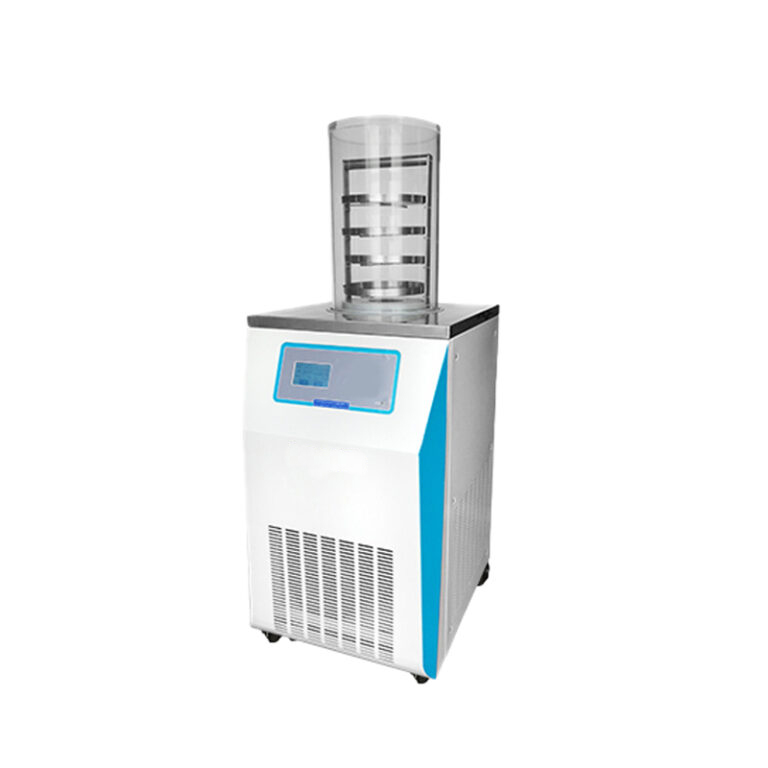

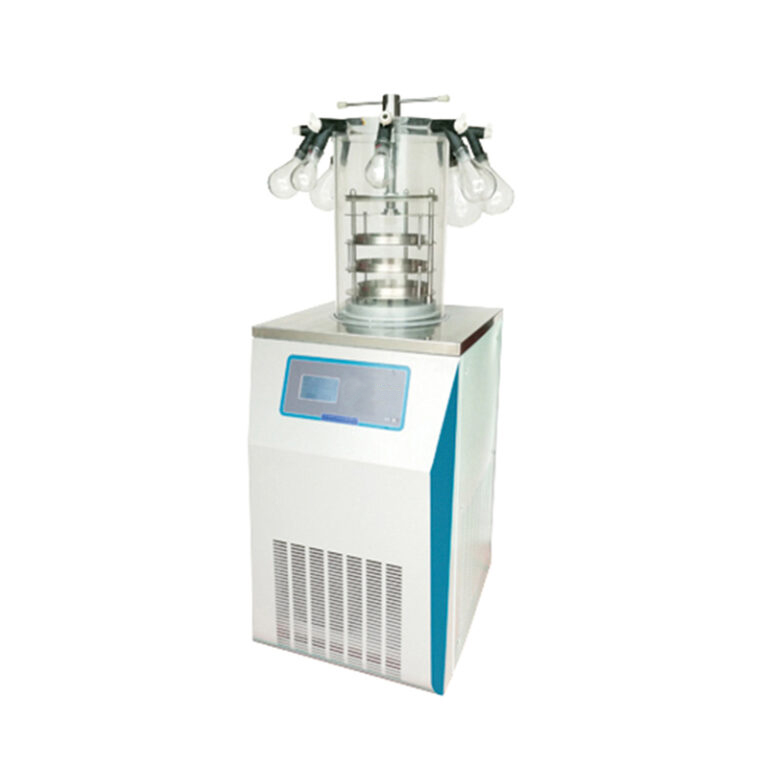

Vertical Freeze Dryer
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Models:
| Model | BK-FD18S(-56/-80) | BK-FD18P(-56/-80) | BK-FD18T(-56/-80) | BK-FD18PT(-56/-80) | |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |
| Freeze Drying Area | 0.18m² | 0.09m² | |||
| Tray | 4pcs | 3pcs | |||
| Height Between Trays | 70mm | ||||
| Cold Trap Temperature | ≤-56℃/-80℃(Optional) | ||||
| Cold Trap Capacity | 23L | ||||
| Cold Trap Size (Dr*H) | Φ270*400mm | ||||
| Vacuum Degree | <5Pa | ||||
| Water Capture Capacity | 6kg/24h | ||||
| Tray Size (D*H) | Φ240*18mm | Φ200*18mm | |||
| Freeze Drying Time | 18-36h | ||||
| Loading Capacity/Shelf (Liquid) | 0.45L | 0.3L | |||
| Total Loading Capacity (Liquid) | 1.8L | 0.9L | |||
| Drying Chamber Size (D*H) | Φ300*445mm | Φ300*465mm | Φ300*540mm | Φ300*570mm | |
| Can Load Vials Qty | Φ22mm | / | 270 | ||
| Φ16mm | / | 555 | |||
| Φ12mm | / | 990 | |||
| Refrigerant | R404+R23 | ||||
| Cooling System | Air cooling | ||||
| Consumption | -56℃: 1.4KW; -80℃: 2.1KW. | -56℃: 1.4KW; -80℃: 2.1KW. | |||
| Power Supply | AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase) | ||||
| Standard Accessory | -56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) | ||||
| Optional Function & Accessory | -80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) | ||||
| External Size (W*D*H) | 630*580*970/1415mm | 630*580*970/1435mm | 630*580*970/1510mm | 630*580*970/1810mm | |
| Package Size(W*D*H)mm / Gross Weight | Main Body | 790*690*1200(148kg) | |||
| Drying Chamber | 420*420*560(14kg) | 430*430*660 (26kg) | |||
| Vacuum Pump | 620*370*450 (32kg) | ||||
