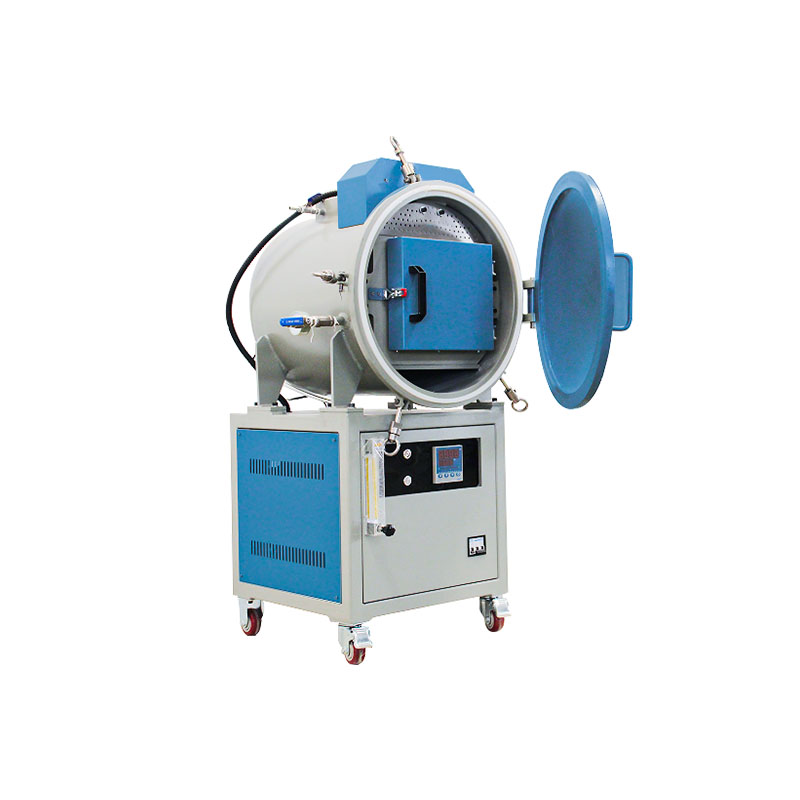

Vacuum Atmosphere Furnace MXV6-10TP
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
The quick-install flange is easy to use, equipped with standard vacuum spare parts and atmosphere spare parts
Vacuum Atmosphere Furnace MXV6-10TP
Features：
1. The quick-install flange is easy to use, equipped with standard vacuum spare parts and atmosphere spare parts
2. Double furnace door design structure, flange sealing, PTFE sealing ring, can ensure sealing
3. The top cover and furnace door are both squeezed and sealed with silicone O-rings, which are easy to remove, can be removed repeatedly, and have good air tightness.
4. The air inlet and air outlet are designed on one side of the furnace body, and inert protective gas can be introduced
5. Energy-saving performance, light weight, fast heating, saving time and effort
6. Modular structure of the control system, long-life design of key components of the equipment, simple and reliable process, good stability and high precision
Technical Parameters：
| Model | MXV6-10TP |
| Short-term Maximum Temperature | 1000℃ |
| Long-term Maximum Temperature | 950℃ |
| Capacity | 6L |
| Temperature stability | ±1℃ |
| Display Accuracy | ±1℃ |
| Heating Speed | 1-20℃/min can be freely set |
| Furnace Material | Using polycrystalline alumina ceramic fiber material |
| Power Supply | Standard: 220V 50/60Hz, optional: 110V 50/60Hz |
| Packing Size | 1250*1100*1400mm |
| Gross Weight | 250kg |
