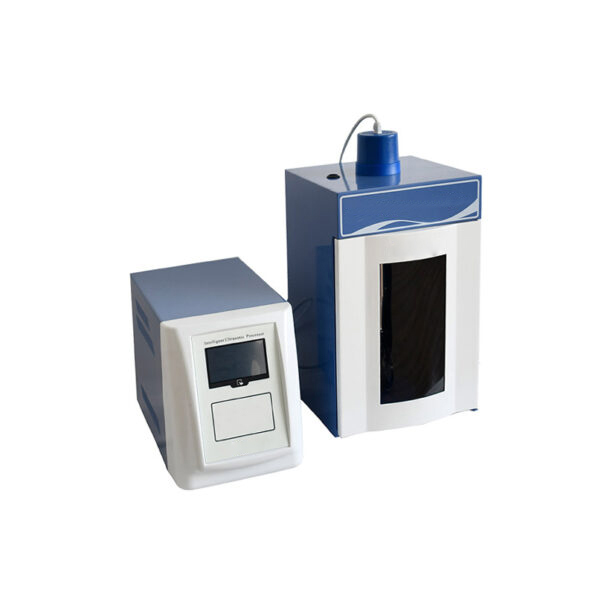

Ultrasonic Cell Disruptor UCD Series
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Application:
Widely used in the field such as biology, chemistry, microbiology, pharmacology, physics, zoology, agronomy, medical science, pharmacy for teaching, scientific research and production.
Ultrasonic Cell Disruptor UCD Series
Features:
* LCD touch screen display.
* Storage capacity: 20 groups of program data.
* Temp, monitor: over-temperature protection.
* Other functions: automatic tracking the frequency, fault alarm.
Technical Parameters:
| Model | UCD -150 | UCD -250 | UCD -500 | UCD -650 | UCD -950 | UCD -1200 | UCD -1500 | UCD -1800 | UCD -2000 |
| Frequency(KHz) | 20 〜25 | 20 〜25 | 20 〜25 | 20 〜25 | 20 〜25 | 19.5 〜20.5 | 19.5-20.5 | 19.5-20.5 | 19.5-20.5 |
| Crushing Capacity(ml) | 0.1-150 | 0.1-300 | 0.1 〜400 | 0.1-500 | 0.1-700 | 1〜1000 | 1-1500 | 1〜1200 | 50〜2000 |
| Standard Amplitude-change Pole 0 (mm) | 6 | 20 | 22 | 22 | 25 | ||||
| Optional Amplitude-change Pole 0(mm) | 2, 3, 6, 8,10 | 2, 3, 6, 8, 10 | 2, 3, 6, 8, 10, 12 | 2, 3, 6, 8, 10, 12 | 2,3,6,8,10, 12,15 | 10.15,20, 22,25 | 10,15,20, 22,25 | 10,15,20, 22, 25 | 10,15,20, 25 |
| Consumption (W) | 1.5-150 | 2.5-250 | 5-500 | 6.5-650 | 10-1000 | 12-1200 | 15-1500 | 18〜1800 | 0〜2000 |
| Power Supply | AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) | ||||||||
| Package Size (W*D*H) | 350*350*550mm(acousticchamber) 470*305*430mm(main body) | ||||||||
| Gross Weight | 26kg | 29kg | |||||||
| Size | Crushing Capacity(m | Recommended power ratio | Frequency (KHz) | UCD -150 | UCD-250 | UCD-500 | UCD-650 | UCD-950 | UCD-1000 | UCD-1200 | UCD-1500 | UCD-1800 | UCD-2000 |
| φ2mm | 0.1-5ml | 1~35% | 20~25 | √ | v | √ | √ | √ | v | x | x | x | x |
| φ3mm | 3-10ml | 1~45% | 20~25 | v | v | √ | v | v | v | v | √ | √ | x |
| φ5mm | 5-100ml | 1~60% | 20~25 | x | x | x | x | x | x | x | x | x | x |
| φ6mm | 10-100ml | 1~70% | 20~25 | √ | √ | √ | √ | v | √ | √ | √ | √ | √ |
| φ8mm | 20-200ml | 1~85% | 20~25 | √ | √ | √ | √ | v | √ | √ | √ | v | √ |
| φ10mm | 30-300ml | 1~90% | 20~25 | v | √ | √ | √ | √ | √ | x | x | x | x |
| φ10mm | 30-300ml | 1~60% | 19.5~20.5 | x | x | x | x | x | x | √ | v | √ | √ |
| φ12mm | 50-600ml | 10~90% | 20~25 | x | x | √ | √ | v | √ | x | x | x | x |
| φ15mm | 200-750ml | 10~95% | 20~25 | x | x | x | x | √ | √ | x | x | x | x |
| φ15mm | 50-500ml | 5~80% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
| φ20mm | 100-1000ml | 10~90% | 19.5~20.5 | x | x | x | x | x | x | v | √ | √ | √ |
| φ22mm | 200-1200ml | 20~95% | 19.5~20.5 | x | x | x | x | x | x | √ | v | √ | √ |
| φ25mm | 300-1500ml | 30~95% | 19.5~20.5 | x | x | x | x | x | x | x | √ | √ | √ |
