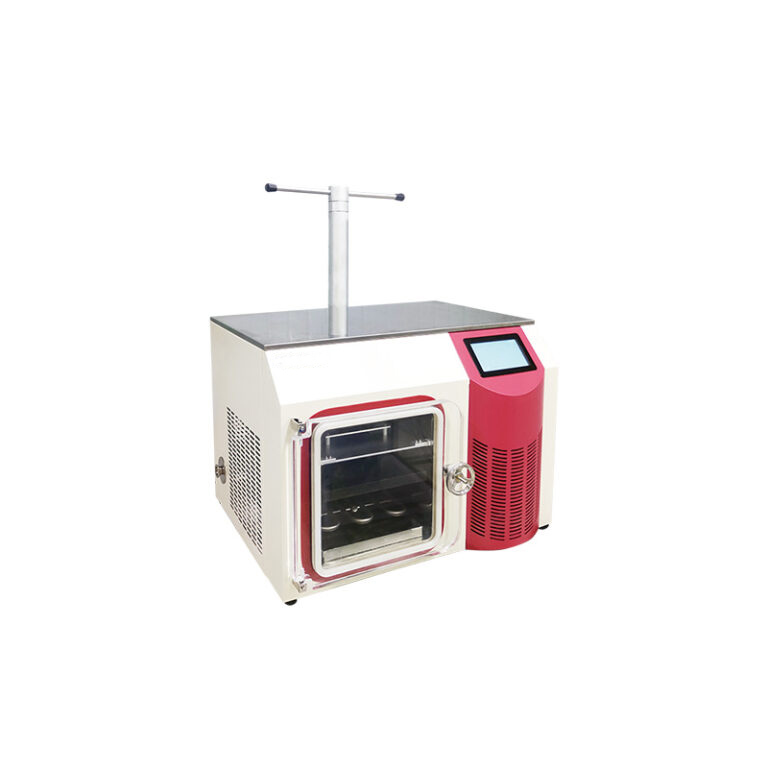

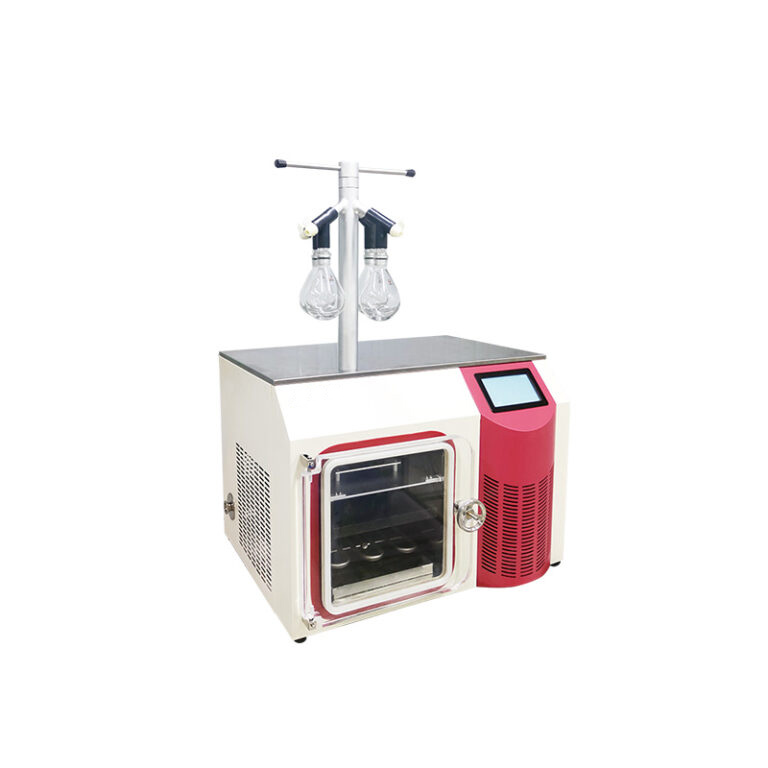

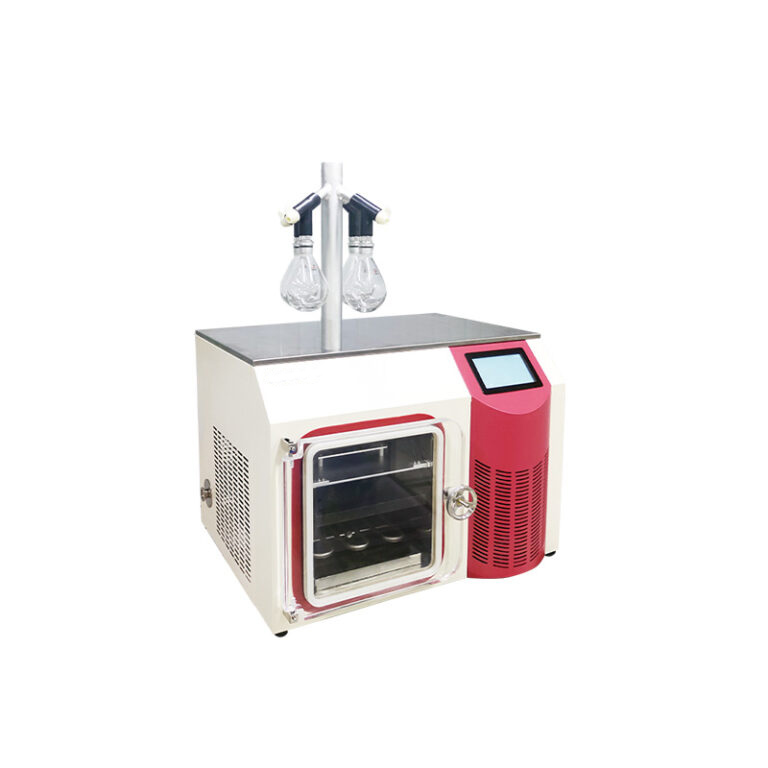

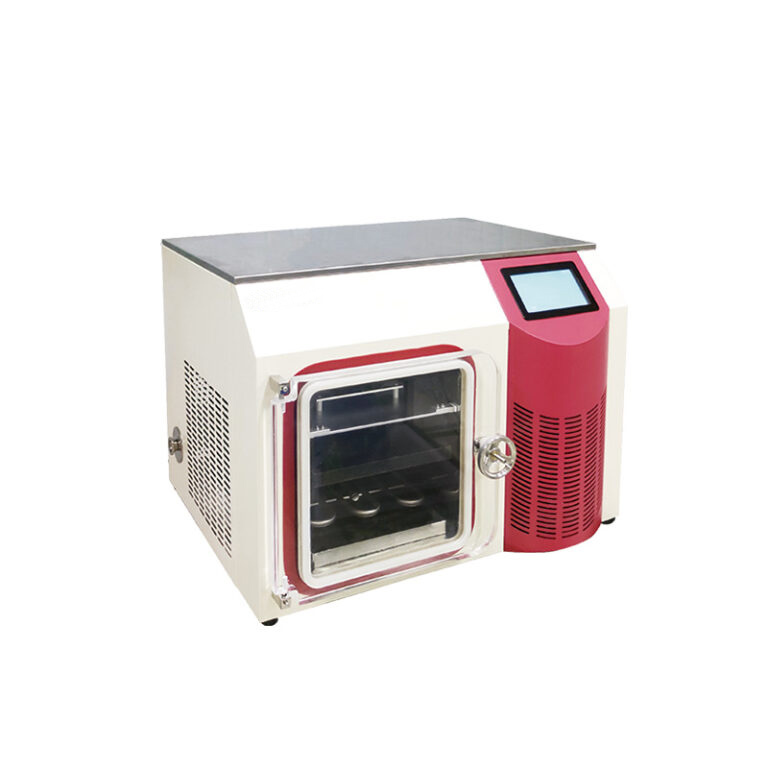

Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

The Tabletop Pilot Freeze Dryer is a compact, high-performance solution designed for small-scale freeze-drying applications. Ideal for research and development, as well as small batch production, this versatile freeze dryer offers precise control and reliability in a convenient tabletop design.

  • Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT

    Request a Call Back

    •  Ask a Question

      Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT

      Ask a Question


        Share
      Technical Parameters:
      Model BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT
      Type Standard chamber 4 port manifold Stoppering chamber Stopping chamber with 4 port manifold
      Cold Trap Temp. -88℃
      Shelf Temp. -60~+70℃
      Temp. Uniformity ±1℃
      Vacuum Degree ≤0.1Pa
      Cold Trap Volume 11L
      Freezer Drying Area 0.1m2
      Condensing Capacity 3kg/h
      Qty. Of Shelf 1
      Drying Chamber Size 40L
      Material Loading Capacity 3000ml
      Total Qty. of Vial Φ22mm 216
      Φ16mm 400
      Φ12mm 726
      Manifold / 4 pieces / 4 pieces
      USB Interface Yes
      Drying Chamber(Standard) Transparent Acrylic
      Vacuum Pump Standard
      Control System Microprocessor, touch screen
      Power Supply 220/110V, 50/60Hz
      Power 2.3kW
      Cold Trap Size(Φ*Hmm) 215*190mm
      Shelf Size(W*D*H) 270*400*150mm 270*400*120mm
      External Size(W*D*H) 820*695*600/995mm 820*695*875/1075mm
      Host Package Size(W*D*H) 940*840*990mm
      Vacuum Pump Package Size(W*D*H) 600*230*300mm
      Gross Weight 180kg 210kg 210kg 220kg
