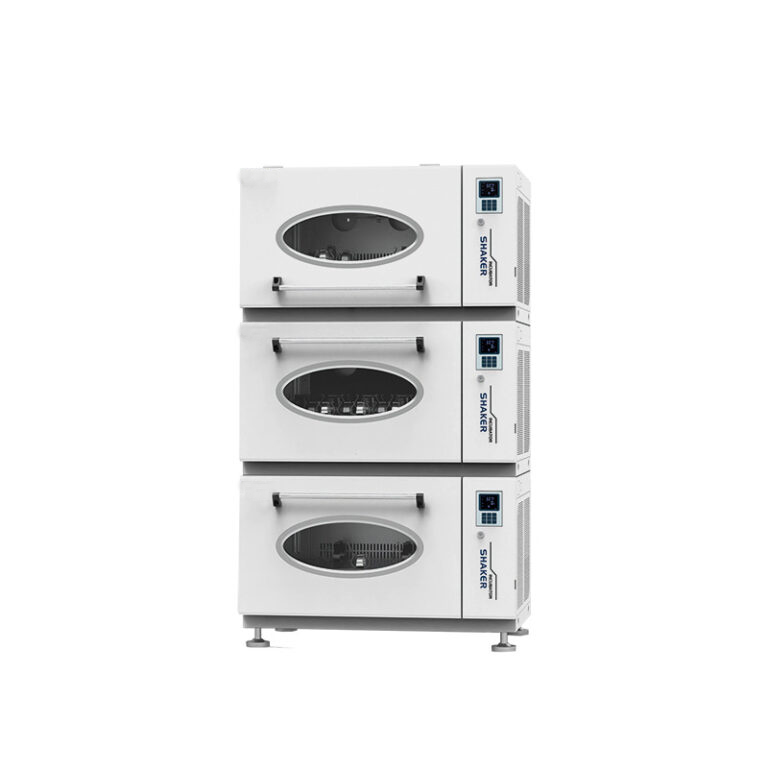

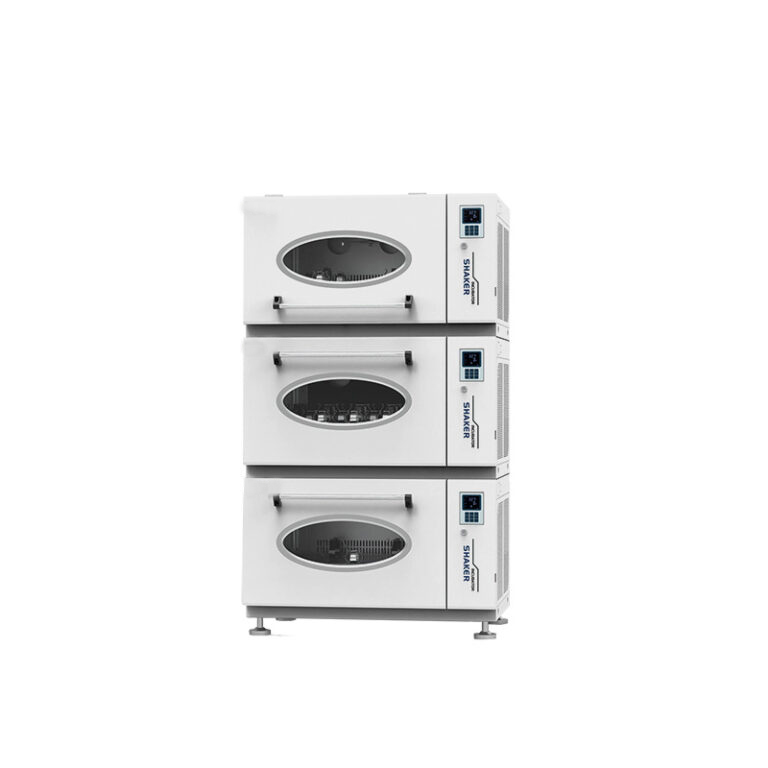

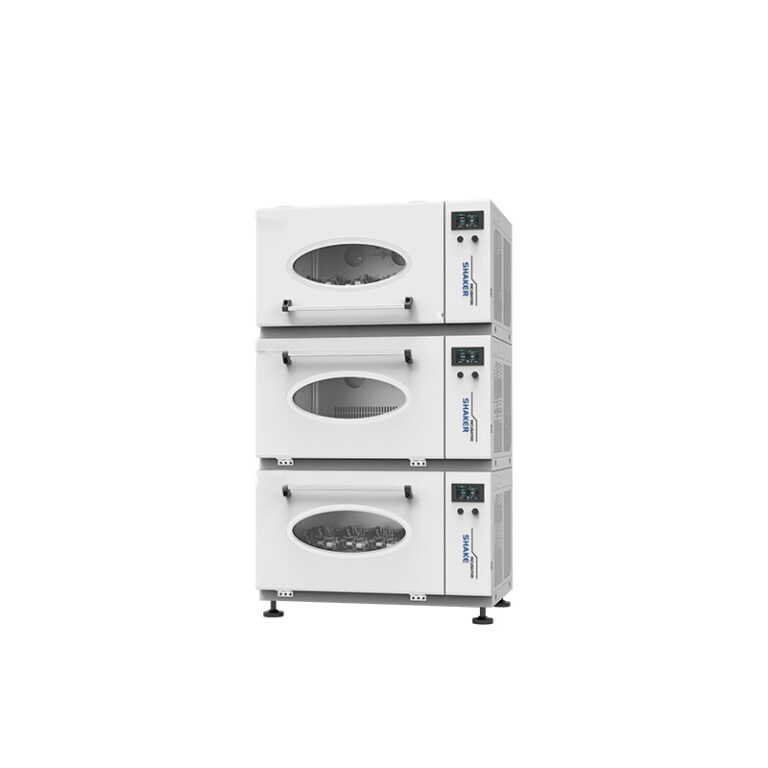

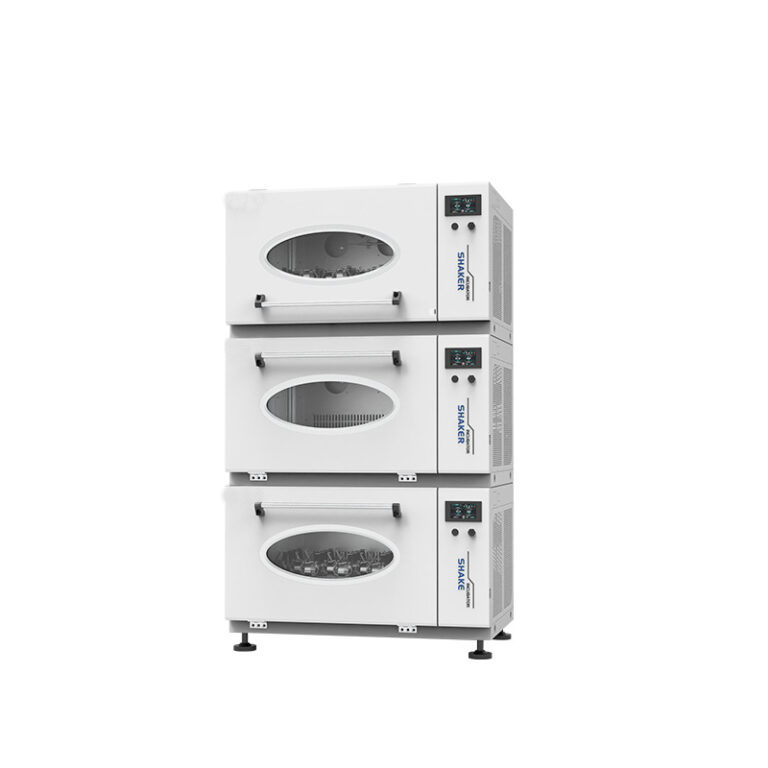

Stacked Large Capacity Shaking Incubator(BJPX-SDT)

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Multiple methods to monitor equipment temperature, complete recording of information and traceability of quality control data.

  • Stacked Large Capacity Shaking Incubator(BJPX-SDT)

    Request a Call Back

    •  Ask a Question

      Stacked Large Capacity Shaking Incubator(BJPX-SDT)

      Ask a Question


        Share
      Stacked Large Capacity Shaking Incubator
      Features: * Multiple methods to monitor equipment temperature, complete recording of information and traceability of quality control data. * High quality brushless DC motor, low vibration, low noise, high efficiency, maintenance free, energy saving, lasting operation. * 5 inch touch screen /LCD screen, clear and intuitive interface, easy to operate. * With UV disinfection function, the cavity to maintain a clean and sterile environment. * LED lighting function, open the door and turn on the light automatically. * With power failure recovery function, the equipment can automatically resume operation according to the original program. * Electric heating toughened glass perspective window, easy to observe, good temperature insulation effect, anti condensation. Stacked Large Capacity Shaking Incubator Technical Parameters:
      Model BJPX-SDW10 BJPX-SDW20 BJPX-SDW10-L BJPX-SDW20-L
      Controller PID
      Display 5 inch touch screen LCD
      Circulation Mode Forced convection
      Shaking Mode Rotary shaking
      Drive Mode Single axis balanced drive type
      Vibration Range Φ26mm
      Rotating Speed 30~300r/min
      Rotating Accuracy ±1r/min
      Temp. Range RT+5~60℃ 4~60℃ RT+5~60℃ 4~60℃
      Temp. Control Accuracy 0.1℃
      Temp. Uniformity ≤±1℃(37℃)
      Temp. Fluctuation ≤±0.5℃
      Timing Range 0~999min
      Shaking Plate Size 720*490mm
      Shaking Plate Quantity 1pc
      Capacity 190L
      Max. Capacity 250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp) tube rack*4 96-well plate*21 clamping rod shaking plate*2(For 3000ml, 1.Install a wide-mouth flask, height s310mm; 2. When the universal spring clamp is selected, it can not be placed)
      Standard. Capacity 500ml*24 flask clamp
      Lighting Mode LED lamp*1
      Sterilization Mode UV lamp*2
      Refrigerant / R290 / R290
      Ambient Temp. 15~35℃
      Internal Material 304 stainless steel
      External Material Cold rolled steel sheet
      Data Storage USB data storage and output function
      Standard Optional
      Printer built-in micro printer(Optional) (Need to be matched with USB data storage and output function)
      Safety Function Upper and lower limit overtemperature audible and visual alarm Upper and lower limit overspeed alarm Sensor fault identification Independent overtemperature protector Independent leakage or over-current protection Refrigerator overload protection
      Consumption 1500W 2200W 1500W 2200W
      Power Supply Standard: AC200~240V, 50/60Hz Optional: AC110V, 50/60Hz
      Internal Size 870*590*398mm
      External Size 1150*780*640mm
      Package Size 1345*970*910mm
      Net Weight 270kg 300kg 270kg 300kg
      Gross Weight 295kg 325kg 295kg 325kg
      Optional Accessory
      Model Specification Model tube rack Specification
      Flask Clamp BS-A10 50ml Tube Rack BS-A20 54-well, for 10ml centrifuge tube
      BS-A11 100ml BS-A21 54-well, for 15ml centrifuge tube
      BS-A12 150ml BS-A22 28-well, for 50ml centrifuge tube
      BS-A13 200ml BS-A23 24-well, for 100ml centrifuge tube
      BS-A14 250ml BS-A24 54-well, for 15*150mm tube
      BS-A15 500ml BS-A25 54-well, for 18*180mm tube
      BS-A16 1000ml BS-A26 54-well, for 20*200mm tube
      BS-A17 2000ml BS-A27 32-well, for 25*200mm tube
      BS-A18 3000ml BS-A28 28-well, for 30*200mm tube
      BS-A50 54-well, for 7ml sampling tube
      96-well Plate BS-A30 130*87*52mm BS-A51 54-well, for 10ml sampling tube
      Clamping Rod Shaking Plate BS-A40 320*300*70mm (for 50~2000ml conical flask) BS-A52 54-well, for 20ml sampling tube
      BS-A53 54-well, for 30ml sampling tube
