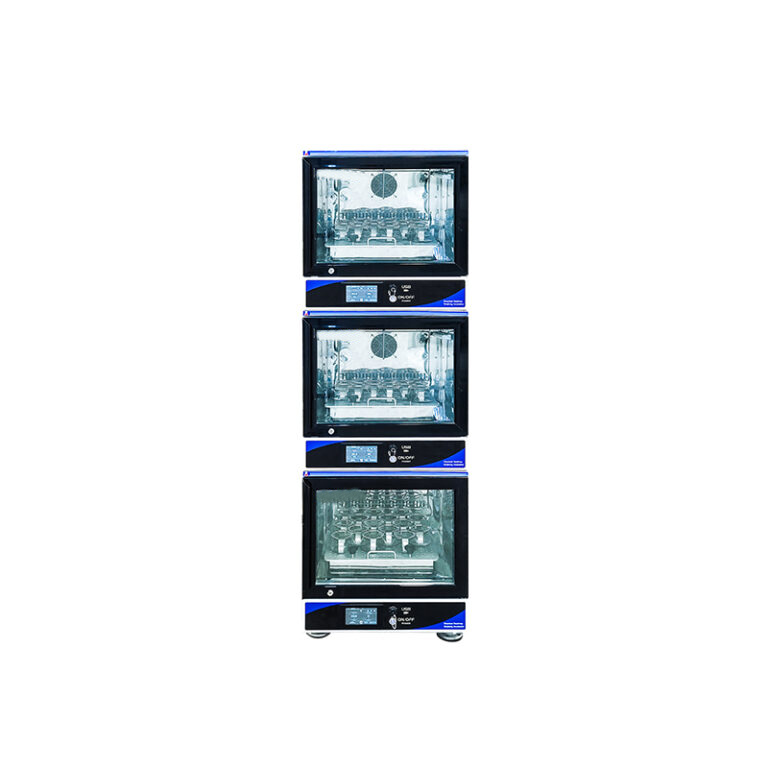

Stacked Large Capacity Shaking Incubator(BJPX-SDT)

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Motor overheat, temperature control, abnormal overtemperature instrument automatically cut off their power supply.

  • Stacked Large Capacity Shaking Incubator(BJPX-SDT)

    Request a Call Back

    •  Ask a Question

      Stacked Large Capacity Shaking Incubator(BJPX-SDT)

      Ask a Question


        Share
      Stacked Large Capacity Shaking Incubator(BJPX-SDT)
      Features: * Brushless DC motor, low noise, lasting operation. * 5 "touch screen, clear and intuitive interface. * Run parameter encryption lock, parameter memory function. * With power failure recovery function, with power failure recovery function. * Motor overheat, temperature control, abnormal overtemperature instrument automatically cut off their power supply. * With USB data export function to achieve data traceability. * With ultraviolet disinfection function. * Standard equipped with LED light, open the door of the box light automatically open. Technical Parameters:
      Model BJPX-SDT10 BJPX-SDT20
      Controller PID
      Display 5 inch touch screen
      Circulation Mode Forced convection
      Shaking Mode Rotary shaking
      Drive Mode Single axis balanced drive type
      Vibration Range Φ26mm
      Rotating Speed 30~300r/min
      Rotating Accuracy ±1r/min
      Temp. Range RT+5~60℃ 4~60℃
      Temp. Control Accuracy 0.1℃
      Temp. Uniformity ≤±1℃(37℃)
      Temp. Fluctuation ≤±0.5℃
      Timing Range 0~999min
      Shaking Plate Size 420*400mm
      Shaking Plate Quantity 1pc
      Capacity 80L
      Max. Capacity 250ml*16 or 500ml*9 or 1000ml*9 or 2000ml*5 (Flask clamp) tube rack*2 96-well plate*8 clamping rod shaking plate*1
      Standard. Capacity 250ml*16 or 500ml*9 or 1000ml*9 or 2000ml*5
      Lighting Mode LED lamp*1
      Sterilization Mode UV lamp*1
      Refrigerant / R290
      Ambient Temp. 15~35℃
      Internal Material 304 stainless steel
      External Material Cold rolled steel sheet
      Safety Function High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm.
      Consumption 1000W 1600W
      Power Supply Standard: AC200~240V, 50/60Hz Optional: AC110V, 50/60Hz
      Internal Size 495*455*370mm
      External Size 580*830*600mm
      Package Size 705*975*865mm
      Net Weight 138kg 158kg
      Gross Weight 168kg 188kg
