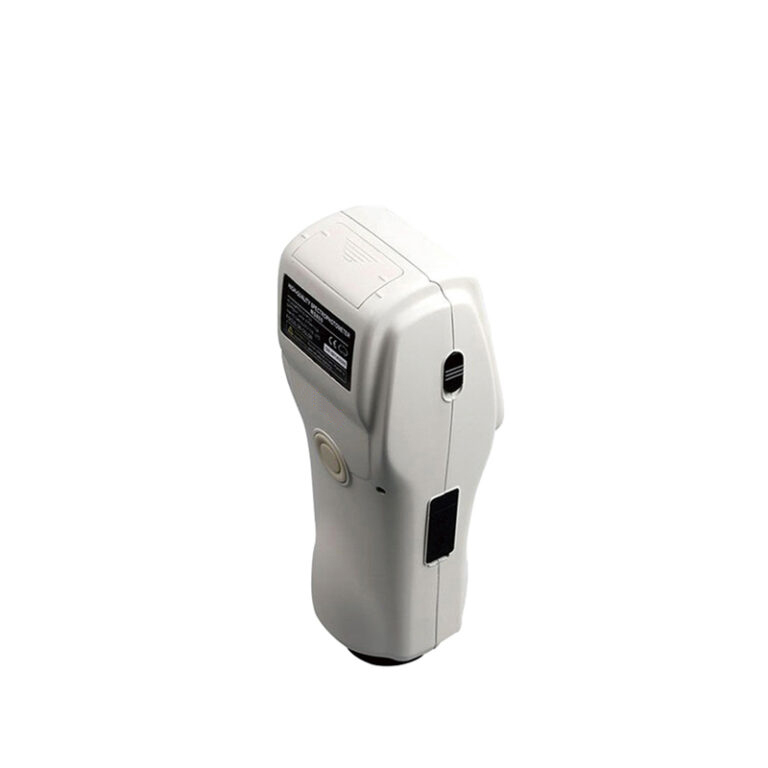

Spectrophotometric Colorimeter
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Application:
Spectrophotometric colorimeter is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Spectrophotometric Colorimeter
Application:
Spectrophotometric colorimeter is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. BCM-810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
Technical Parameters:
| Model | BCM-810 |
| Illumination/Observation System | d/8(diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978 |
| Integrating Sphere Size | φ58mm |
| Light Source | Combined LED sources |
| Sensor | Silicon photodiode array |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Reflectance Range | 0-200% |
| Measuring Aperture | φ8mm |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB&WI&YI |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h) |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), Metamerism index (Mt), Color strength color stain, Color 伯stness |
| Data | Metamerism Index (Mt), Color Strength Color Stain, Color Fastness |
| Observer | 2°/10° |
| llluminant | D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Model | BCM-810 |
| Display Data | Spectral value/Graph, Colorimetric value, Color difference value/Graph, Pass/Fail result, Color offset, Color simulation, Color index setting(ΔE*94,ΔE*cmc, ΔE2000), Tolerance prompt, Reverse prompt, Time setting, Language seting, Restore factory setting |
| Measurement Time | 1.5s |
| Repeatability | Spectral reflectance: Standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric value: Standard deviation within ΔE*ab 0.04 (Measurement conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Inter Instrument Agreement | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Battery | Li-ion battery. 2800 times within 8 hours. |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display | 3.5 inch TFT LCD, Capacitive touch screen |
| Interface | USB/RS-232 |
| Data Memory | 1000 Standards, 15000 Samples |
| Ambient Temp. | 0~40°C (32-104°F) |
| Storage Temp. | ・20~50°C («4~122牛) |
| Standard Accessory | Power adapter, Li-ion battery, Operating instruction, CD-ROM (Containing management software), Data line, White and black calibration cavity, Protective cover and wrist strap |
| Optional Accessory | Universal test components, Micro printer, Powder test box |
| External Size(W*D*H) | 90*77*230mm |
| Package Size(W*D*H) | 460*250*380mm |
| Net Weight | 600g |
| Volume Weight | 4kg |
| Notes | The specifications are subject to change without notice |
