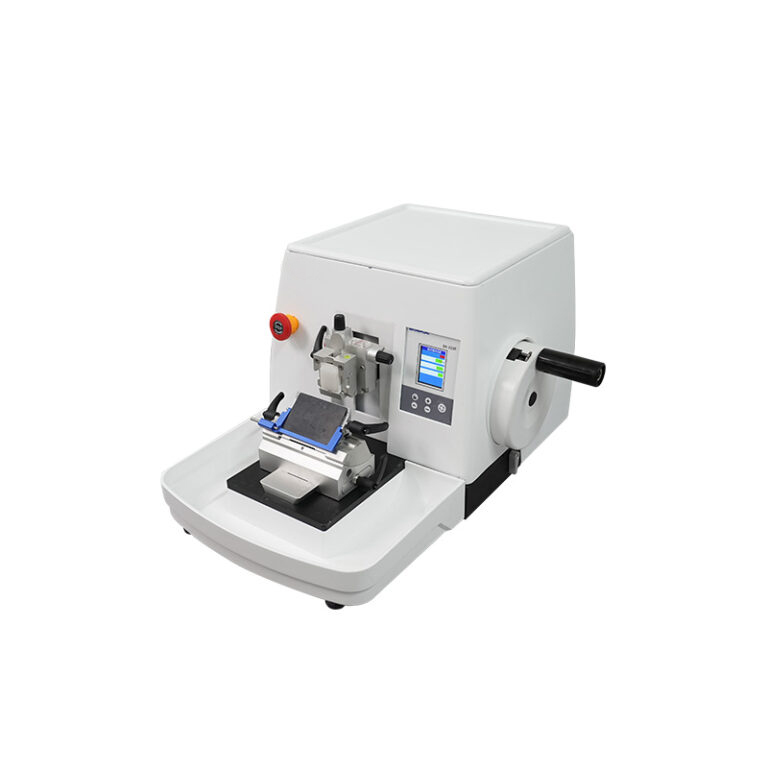

Semi-Automatic Microtome BK-2238
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-2238
Introduction:
Microtome is used for sectioning thin and uniform tissue slices. The BK-2238 Microtome can section slices between 0 and 100μm and and trimmings between 0 and 600μm with a minimum adjustable index value of 0.25μm, which enables fast and accurate slicing operations. Equipped with a lengthening blade adapter and tool post to protect the safety of the operator and enable better tool retracting.
Semi-Automatic Microtome BK-2238
Features:
1. Precision cross-roller guide, equipped with stainless steel holder, to ensure long-lasting operation of the equipment.
2. Equipped with multi-angle adjustment device and embedding chuck.
3. With sectioning/trimming, sectioning counting, retraction display(retraction range, feed travel of small hand wheel, feed direction of hand wheel) function.
4. Magnetic removable waste chute, easy to clean.
5. Two-piece storage board, which can place blade embedding box and other related disposable items.
6. Large hand wheel double lock, and can be single-locked at any point, also double-locked at the highest point and any point, to ensure the safe exchange of knives and samples.
Technical Parameters:
| Model | BK-2238 |
| Sectioning Thickness Range | 0~100μm |
| Trimming Thickness Range | 0~600μm |
| Retraction Range | 0~200μm |
| Mini. Sectioning Thickness | 0.25μm |
| Precision | ±5% |
| Velocity of small hand wheel | 100~1000μm, adjustable |
| Max Specimen Size | 50*70(mm) |
| Specimen Stroke | Horizontal: 28mm, Vertical: 70mm |
| Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm |
| Sample Adjustment Direction | Horizontal 8° Vertical 8° Rotation 360° |
| Power Supply | AC110/220V, 50/60Hz |
| Power | 100W |
| External Size(L*W*H) | 605*465*340(mm) |
| Net Weight | 35kg |
| Packing Size(L*W*H) | 725*590*590mm |
| Gross Weight | 55kg |
