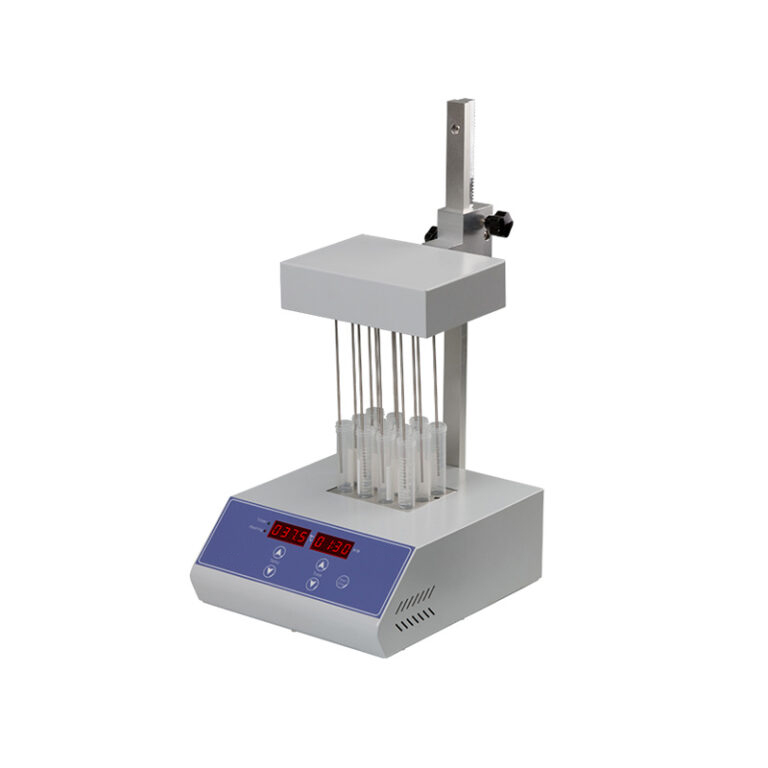

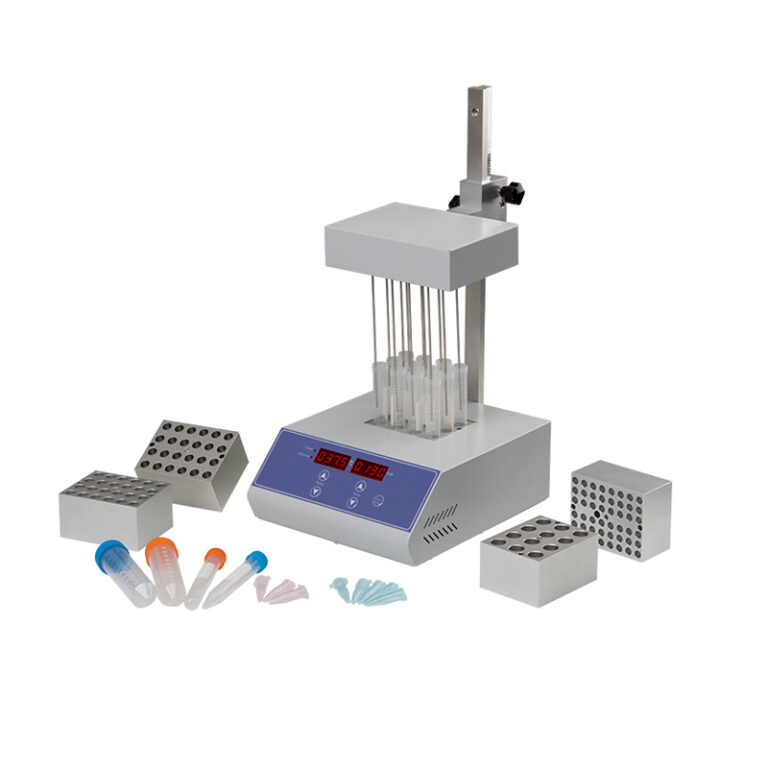

Sample Concentrator BK-SC100
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*High precision and wide range of tamp control.
*Blowing a large number of samples at one time.
*Blowing each sample independently.
*Amount of airflow can be adjusted.
*Easy operation; safe and reliable to use.
*12-month warranty.
Sample Concentrator BK-SC100
Technical Parameters:
| Model | BK-SC100 |
| Temp. Control Range | RT+5°C-160°C |
| Temp. Uniformity | ≤±0.5°C |
| Display Accuracy | 0.1°C |
| Heating Time | ≤15min (from 25°C to 160°C) |
| Max Gas Usage | 15L/min |
| Max Gas Pressure | 0.02Mpa(Gas pin≤16pcs); 0.05Mpa (Gas pin>16pcs) |
| Max Power | 300W |
| Dimension | 260*220*450mm |
| Temp. Accuracy | ±0.5°C (@40°C) |
| Temp. Accuracy | ±1°C (@120°C) |
| Timing Range | 1-99h59min/∞ |
| Max Vertical Travel | 200mm |
| Needle Length | 150mm |
| Block Quantity | 1 |
| Voltage | 220V, 50/60HZ； 110V, 60Hz |
| Packing Size(W*D*H) | 430*420*340mm |
| Weight(kg) | 7.0 |
| Gross Weight(kg) | 9.0 |
| TypeTest Tube DiameterCapacity | ||
| B03 | 10mm | 24 |
| B04 | 12mm | 24 |
| B05 | 13mm | 24 |
| B06 | 15mm | 16 |
| B07 | 16mm | 16 |
| B08 | 19mm | 12 |
| B09 | 20mm | 12 |
| B10 | 26mm | 8 |
| B11 | 28mm | 4 |
| B12 | 40mm | 3 |
| B15 | 1.5ml(centrifuge tube) | 24 |
| B16 | 2.0ml(centrifuge tube) | 24 |
