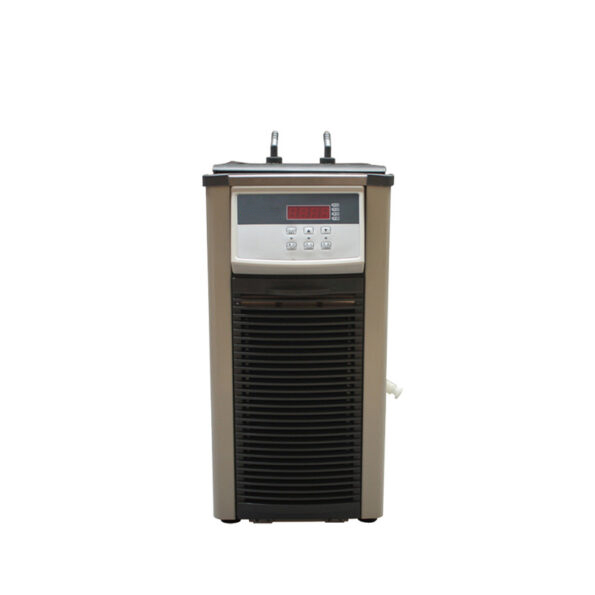

Recirculating Chiller CCA-420 DLSB-5/20 DLSB-5/20
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Recirculating Chiller is the ideal solution for precise temperature control in various industrial and laboratory applications. Designed for efficiency and reliability, this chiller provides a stable and consistent cooling source for your equipment. With a user-friendly interface, it allows for easy temperature adjustments and monitoring.
Recirculating Chiller CCA-420 DLSB-5/20 DLSB-5/20
Technical Parameters:
| Model | CCA-420 | DLSB-5/20 | DLSB-20/40 |
| Temp. Display | LED display | ||
| Tank Volume | 4L | 6.8L | 20L |
| Matching Reaction Kettle(Steam) | 1~2L | 1~5L | 20L |
| Tank Material | 304 Stainless Steel | 201 Stainless Steel | |
| Tank Size | 250*130*130mm | φ220*180mm | φ300*300mm |
| Temp. Control Accuracy | ±0.1 °C | ||
| Display Temp. Resolution | 0.1°C | ||
| Pump Lift | 1.5~2.7m | 4~6m | |
| Circulating Pump Flow | 8~16L/min | 20~40L/min | |
| Refrigerant | R134A | R22 | |
| Refrigerating Capacity | 1550-500W | 2324-735W | 6972-2205W |
| Pressure | ≤0.4Mpa | ||
| Ambient Relative Humidity | (60~80%)Ventilation | ||
| Instrument Temp. Control Range | -20°C~RT | -40°C~RT | |
| Optimum Ambient Temp. | 5~35°C | ||
| Unload Min Temp. | -20°C | -20°C | -42°C |
| Circulation Pump Power | 100W | ||
| Circulating Pump | Magnetic pump | Fully-closed &No-leaked special pump | |
| Circulating Water Mouth Interface | Outer diameterl 1 mm/ Inner diameter7mm | ||
| Sensor | PT100 | ||
| Coil Diameter | φ185mm | φ255mm | |
| Opening Size | φ200mm | φ250mm | |
| Power Supply | AC220V±10%, 50/60HZ | AC220±10%,50y60Hz； AC110±10%, 60Hz | AC220V±10%, 50/60HZ |
| Model | CCA-420 | DLSB-5/20 DLSB20/40 | |||||
| Secure Protection | Overload protection, Overheating protection, Refrigerator delay protector | Leakage,overload circuit breaker,Overload relay circuit,Refrigerator protection timer,Circulating pump thermal protector,Refrigerator high-pressure pressure switch,Temperature control self-diagnosis function | |||||
| External Size(W*D*H)mm | 520*250*560 | 485*423*(760+400) | 590*670*(975+500) | ||||
| Package Size(W*D*H)mm | 580*310*560 | 595*435*880 | 725*595*1130 | ||||
| Gross Weight(kg | 30 | 65 | 122.5 | ||||
| Accessories | In and out joint *1 silicone pipe insulation*2 | In and out joint *1,Vertical rod*1, Thermal insulation pipe*2 | |||||
| Applicable Rotary Evaporator Model | RE-2010,RE-2000A,RE-2000B, RE-2000E,RE-52A,RE-52C RE-5299,RE-201D,RE 100-Pro | RE-301,RE-501 | RE-1002,ExRE-1002, RE-2002 | ||||
Related Products
Brand: Kazkaz Technologies

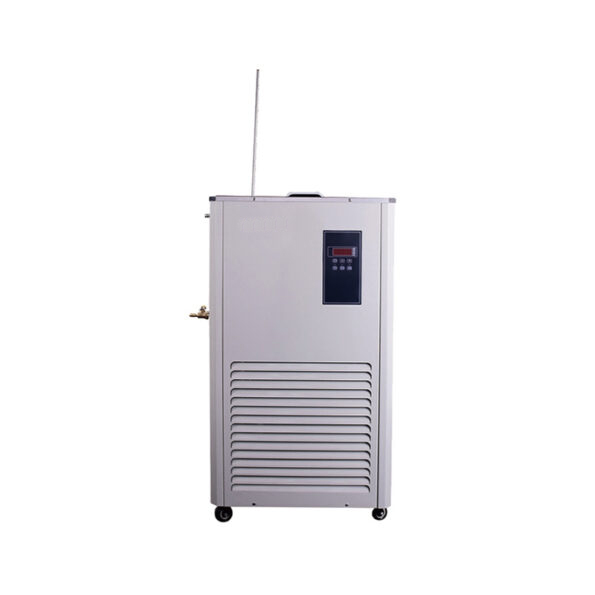

Recirculating Chiller BK-RC610
