Portable Soil Irromerter Tensiometer

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Introduction

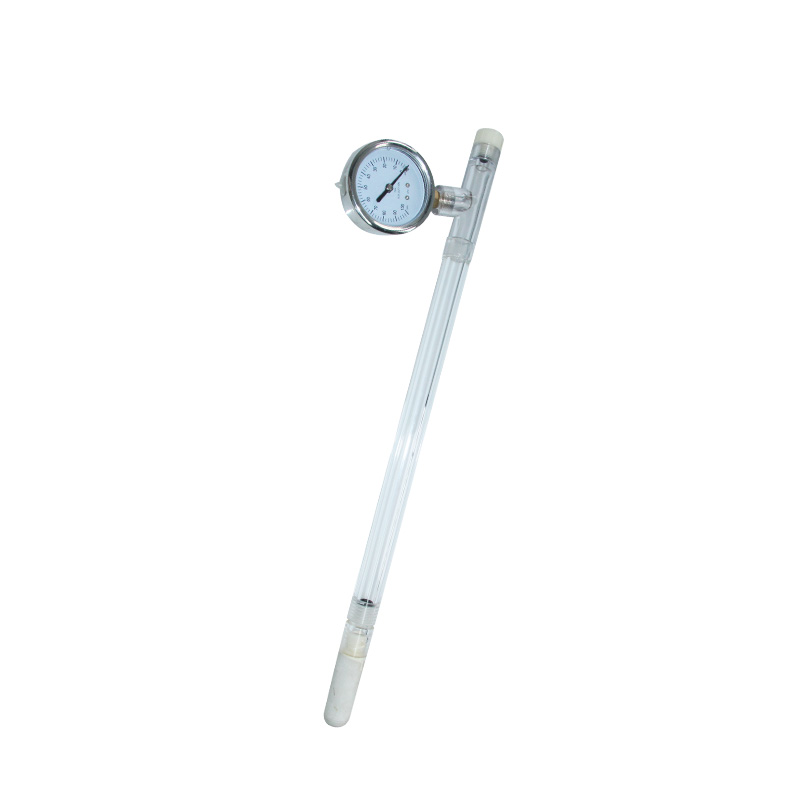

Soil Irrometer tensiometer is made up of pressure gauge, acrylic tube and ceramic probe, after the acrylic tube filled with water, ceramic probe gets wet and it can prevent outside air into the ceramic probe. When there is pressure difference between measured soil water potential and tensiometer, the water in tensiometer will infiltrate into the measured soil until the balance reached. So at that moment, the value shown on the pressure gauge is the measured soil water potential.

  • Portable Soil Irromerter Tensiometer

    Portable Soil Irromerter Tensiometer

    Request a Call Back

    •  Ask a Question
      Portable Soil Irromerter Tensiometer

      Portable Soil Irromerter Tensiometer

      Ask a Question


        Share
      Portable Soil Irromerter Tensiometer
      Technical Parameters
      Model Length(mm) Testing Range Package Size(L*W*H) mm Gross weight (kg)
      BST-15 150 0~1 Bar (1 Bar = 100 Kpa) 370*225*60 0.5
      BST-30 300 440*150*70 1.0
      BST-45 450 560*150*70 1.0
      BST-60 600 700*150*70 1.2
      BST-90 900 1000*150*70 1.5
      BST-120 1200 1335*140*90 1.5
      *Length can be made as customized. (Standard length is the length of transparent polycarbonate tube in the middle of tension meter tube)
