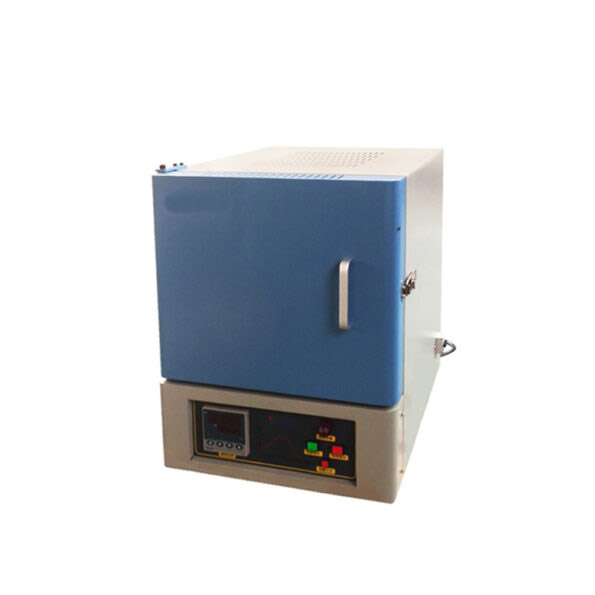

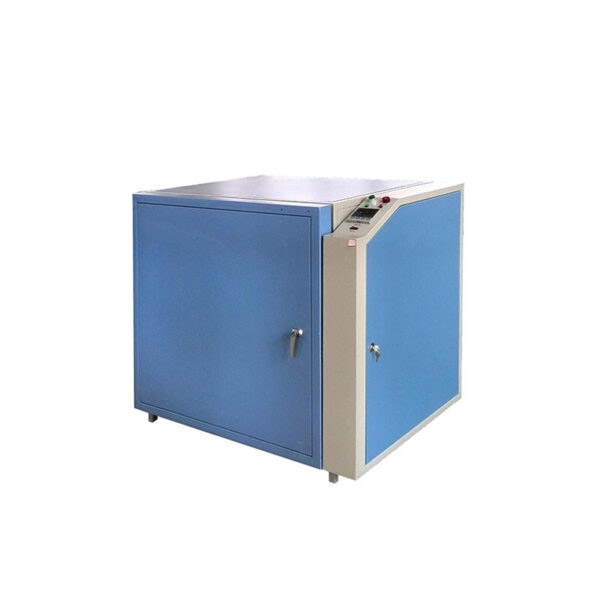

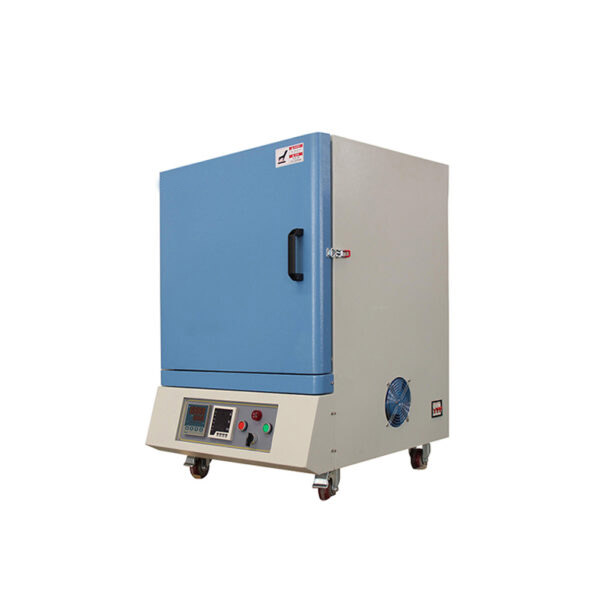

Muffle Furnace MX Series
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
*Program controlling temperature for TP series.
*Heating wire is set in four sides of the furnace, anti-corrosion, prevent contamination.
*Special insulation design, low shell temperature.
*SCR control, PID parameter self-setting;
*Low energy consumption.
*Multiple safety protection design:
Over-temperature alarm;
Power off when over-temperature/over-load. Manual or automatic switch without interference;
Built-in parameter password control function.
Muffle Furnace MX Series
Technical Parameters:
| Model | MX6-10T/TP | MX8-10T/Tp | MX16-10T/TP | MX30-10T/TP | MX6-12T/TP | MX8-12T/TP | MX30-12T/TP | |
| Max.Temp.(c) | 1000 | 1200 | ||||||
| Capacity(L) | 6 | 8 | 16 | 30 | 6 | 8 | 30 | |
| Temp.Accuracy | ±1℃ | |||||||
| Consumption(Kw) | 2.8 | 4 | 6 | 10 | 2.8 | 4 | 10 | |
| Power Supply | 220/380V±10%,50/6OHZ:(110V only suitable for MX6-10T/TP) | |||||||
| Heating Rate | 0-30℃/min | |||||||
| Rising Time(Empty) | 30 minutes | |||||||
| Temp.Uniformity | ±5℃ | |||||||
| Material | External material: Cold rolled steel carbon steel spraying lnternal material:Ceramic inner chamber | |||||||
| Heating Element | Nickel chromium alloy wire | |||||||
| Temp.Control | lntelligent tomporaturo controller | |||||||
| Optional | Accessory | Temperature measuring hole;Exhaust chimney:Furnace bottom plate | ||||||
| Functions | Automatically power off once the door is opened;30 programmable periods(only forTType) | |||||||
| lnternal Size(W'D*H)mm | 180*230*150 | 200*300*120 | 250*400*160 | 300*500*200 | 180*230*150 | 200*300*120 | 300*500*200 | |
| External Size(WD*H)mm | 500*510*540 | 500*580*660 | 550*690*700 | 770*820*580 | 480*500*660 | 500*580*660 | 770*820*580 | |
| Package Size(WD*H)mm | 630*700*870 | 630*800*870 | 680"910*870 | 870*1110*990 | 630*700*870 | 630*800*870 | 870*1110*990 | |
| Gross Weight(kg) | 82 | 84 | 111 | 146 | 82 | 84 | 146 | |
| Model | MX8-13T/TP | MX10-13T/TP | MX6-16TP | MX11-16TP | MX6-17TP | MX11-17TP | |
| Max. Temp.(°C) | 1300 | 1600 | 1700 | ||||
| Capacity(L) | 8 | 10 | 6 | 11 | 6 | 11 | |
| Temp. Accuracy | ±1℃ | ||||||
| Consumption(KW) | 4 | 6 | 8 | 5 | 8 | ||
| Power Supply | 220/380V±10%, 50/60HZ | ||||||
| Heating Rate | 0-30°C/min | ||||||
| Rising Time(Empty) | 30 minutes | ||||||
| Temp. Uniformity | ±5°C | ||||||
| Material | External material: Cold rolled steel carbon steel sprayingInternal material: Ceramic inner chamber | ||||||
| Heating Element | Nickel chromium alloy wire | ||||||
| Temp. Control | Intelligent temperature controller | ||||||
| Optional | Accessory | Temperature measuring hole; Exhaust chimney; Furnace bottom plate | |||||
| Functions | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | ||||||
| Internal Size(W*D*H)mm | 200*300*120 | 200*300*180 | 150*300*120 | 200*300*180 | 150*300*120 | 200*300*180 | |
| External Size(W*D*H)mm | 630*650*730 | 600*640*850 | 650*750*1000 | 700*750*1200 | 650*750*1000 | 700*750*1200 | |
| Package Size(W*D*H)mm | 710*910*920 | 770*860*1050 | 920*800*1150 | 1100*1050*1350 | 800*920*1150 | 1100*1050*1350 | |
| Gross Weight(kg) | 119 | 130 | 237 | 280 | 237 | 280 | |
