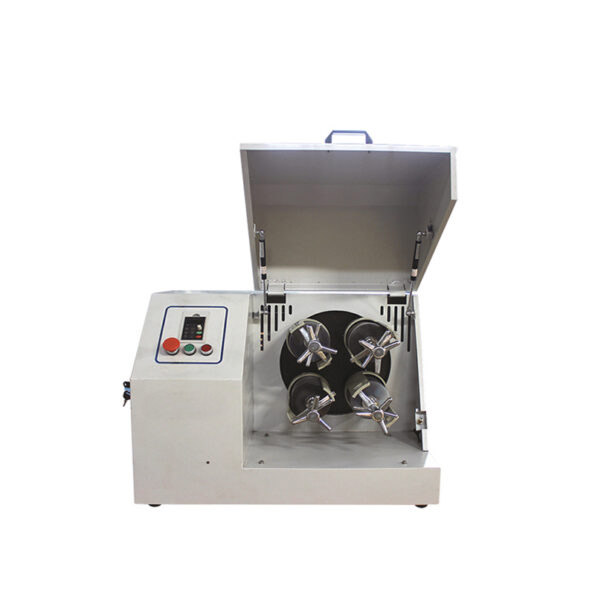

Light Horizontal Planetary Ball Mill
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*Horizontal structure of grinding pots.
*Special gear with low noise.
Light Horizontal Planetary Ball Mill
Technical Parameters:
| Model | BKBM-H2L | |
| Capacity | 2L | |
| Volume of Each Capacity | 50~500ml | |
| Pot Quantity | 4 pcs | |
| Running Time Range | 1~9999min | |
| Reciprocal Running Time | 1~999min | |
| Adjustable Speed Revolution | Revolution | 35~335rpm |
| Rotation | 70~670rpm | |
| Noise | 60±5dB | |
| Transmission Mode | Gear Drive | |
| Working Mode | 2 or 4 pots can be used each time | |
| Maximum Sample Volume (material + grinding ball) | 2/3 of the volume of the ball mill tank | |
| Feed Size | Soft and Crispy material<10mm, Other materials<3mm | |
| Out-put Granularity | Minimum Granularity can be reached to 0.1pm | |
| Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation | |
| Speed Control Mode | Frequency Control | |
| Consumption | 0.75KW | |
| Power Supply | AC110/220V±10%, 50/60HZ | |
| External Size(W*D*H)mm | 700*570*520 | |
| Package Size(W*D*H)mm | 800*610*670 | |
| Net Weight(kg) | 86 | |
| Gross Weight(kg) | 110 | |
| Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. | ||

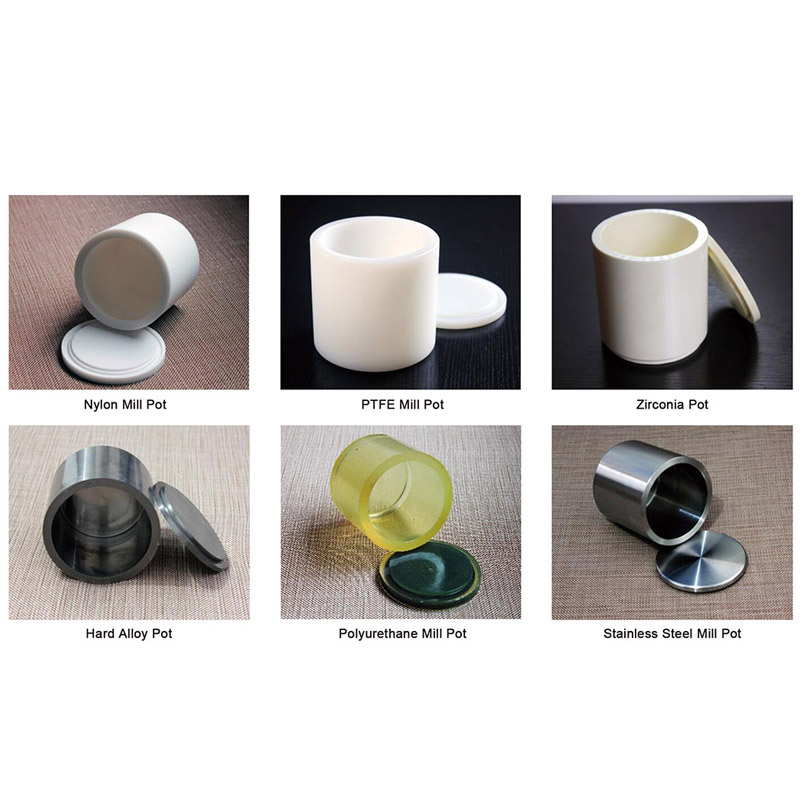

| Category & Request of Grinding Material | Reference for Mill Pots' Material Option |
| Soil and other Materials which impurities are not allowed to be brought. | Agate Pot |
| Metal and non-metal materials which impurities are not allowed to be brought. | Zirconia Pot |
| High hardness materials like diamond, hard alloy. | Hard Alloy Pot |
| Strong acid and strong alkali substances, and materials under high temperature. | PTFE Mill Pot |
| Iron and steel minerals, impurities are not highly sensitive materials. | 304 Stainless Steel Mill Pot |
| Pigment material, and materials which can be processed at high temperature. | Nylon Mill Pot |
| Containing aluminum material like ceramic glaze. | Corundum Pot |
| Electronic material like lithium battery. | Polyurethane Mill Pot |
| Easily oxidized materials which need to be protected by special gas. | Vacuum Mill Pot |
