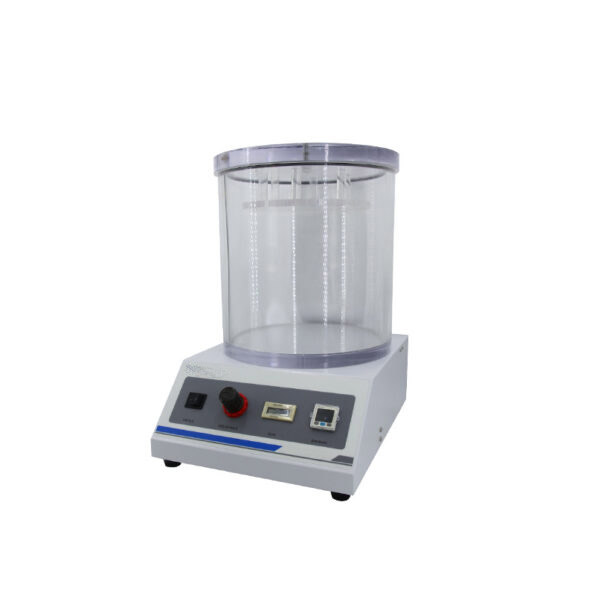

Leakage Tester-BK-ST132

Brand:
Kazkaz Technologies

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Features:
* Manually adjust the pressure and control the pressure holding.
* The performance of pneumatic components is stable and reliable.
* High quality plexiglass sealing barrel, effectively enhance the compressive strength.
* Electronic pressure holding device, reduce mechanical wear.
* PVC operation panel, LED display.
* Built-in time display, convenient for users to record and observe the pressure holding time.

  • Leakage Tester-BK-ST132

    Request a Call Back

    •  Ask a Question

      Leakage Tester-BK-ST132

      Ask a Question

        Share
      Leakage Tester-BK-ST130
      Features: * Manually adjust the pressure and control the pressure holding. * The performance of pneumatic components is stable and reliable. * High quality plexiglass sealing barrel, effectively enhance the compressive strength. * Electronic pressure holding device, reduce mechanical wear. * PVC operation panel, LED display. * Built-in time display, convenient for users to record and observe the pressure holding time.   Technical Parameter:
      Model BK-ST130
      Vacuum Degree Range -90kPa~0
      Vacuum Precision ±0.1kPa
      Resolution 0.1kPa
      Original Air Pressure 0.7Mpa(Owned)
      Original Air Connection Φ6 Polyurethane pipes
      Control Method Manual adjustment, automatic timing
      Display LED display
      Time Range 0~9999h59min59s
      Power Supply Standard: AC220V 50Hz Optional: AC110V 60Hz
      Effective Size of Vacuum Chamber Standard: Φ270*210mm(H) Optional: Φ360*585mm(H), Φ460*330mm(H), others.
      Dimensions Operation Host: 420*320*130mm(W*D*H) Vacuum Chamber: 300*350mm(H)
      Package Size Operation Host: 540*440*250mm(W*D*H) Vacuum Chamber: 380*380*420mm(W*D*H)
      Net/Gross Weight 12/18kg
      Categories

      Related Products

      Brand:
      Leakage Tester-BK-ST134

      Product origin CHINA

      Delivery time Within 7 days

      Supply capacity Factory Direct Supply

      Application:
      Seal tester is used in food industry, beverage, pharmaceuticals, personal care etc.
      By air compressor, seal tester’s negative pressure is generated to test the hermetic sealing quality and performance of packaging bags, bottles and cans etc.
      Brand:
      Leakage Tester-BK-ST132

      Product origin CHINA

      Delivery time Within 7 days

      Supply capacity Factory Direct Supply

      Features:
      * Microcomputer control, test parameters can be set, the test process is fully automated.
      * PVC operation panel, multiple parameters display at the same time.
      * High-quality plexiglass pipe, wall thickness up to 15mm.
      * Can realize the test process of one-key operation.
      * Pneumatic components sealing performance is superior, reliable quality.
      * Automatic constant pressure air supply, automatic backblowing unloading pressure.
      * External compressed air filter device, easy to drain water and clean impurities.
      * Dual power supply independent power supply
