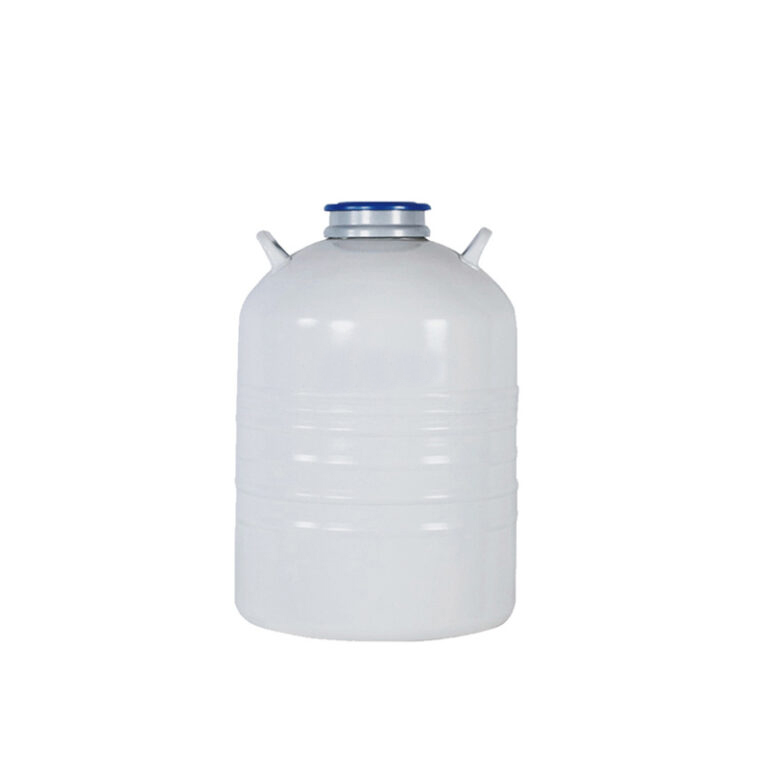

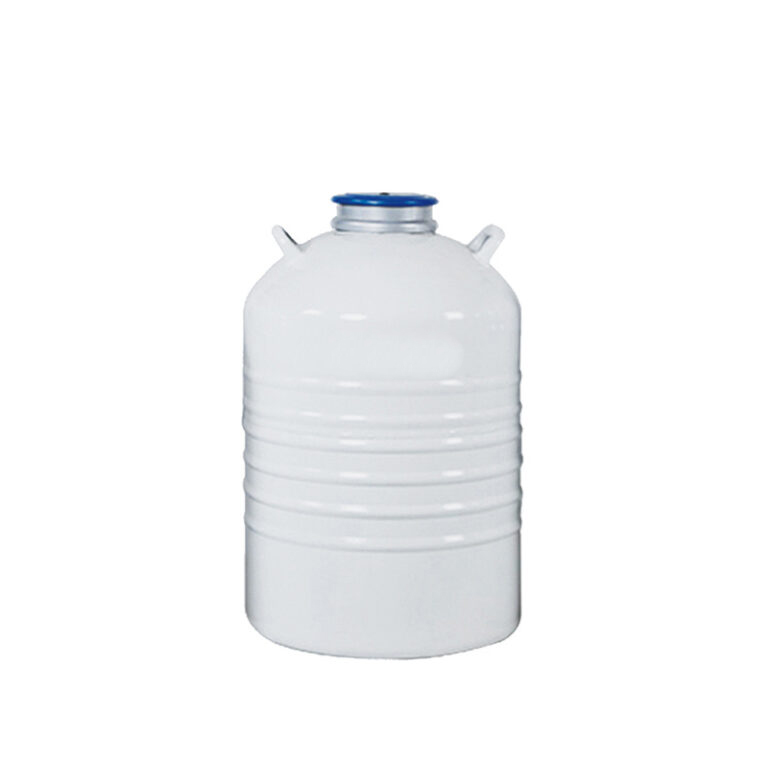

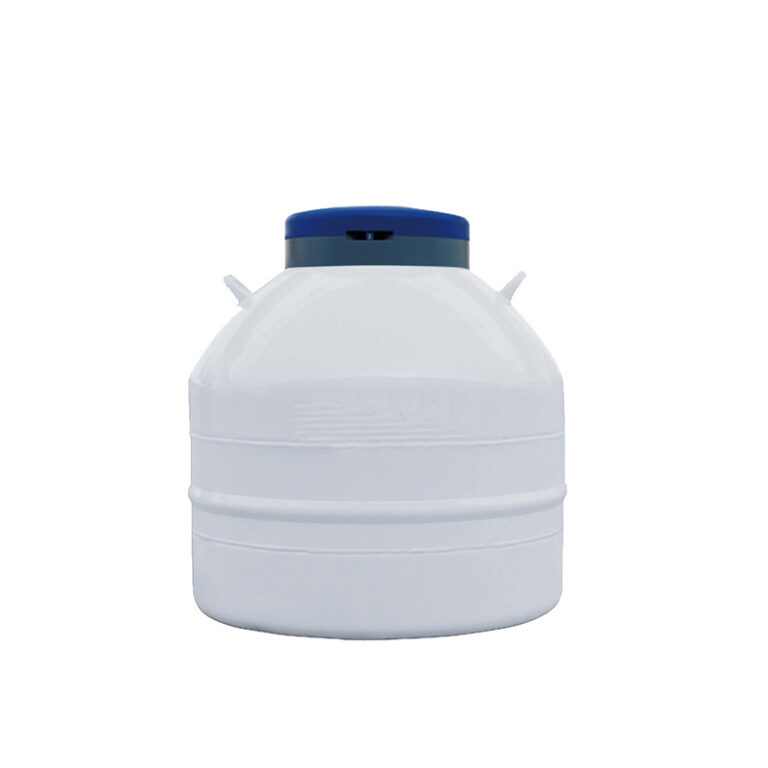

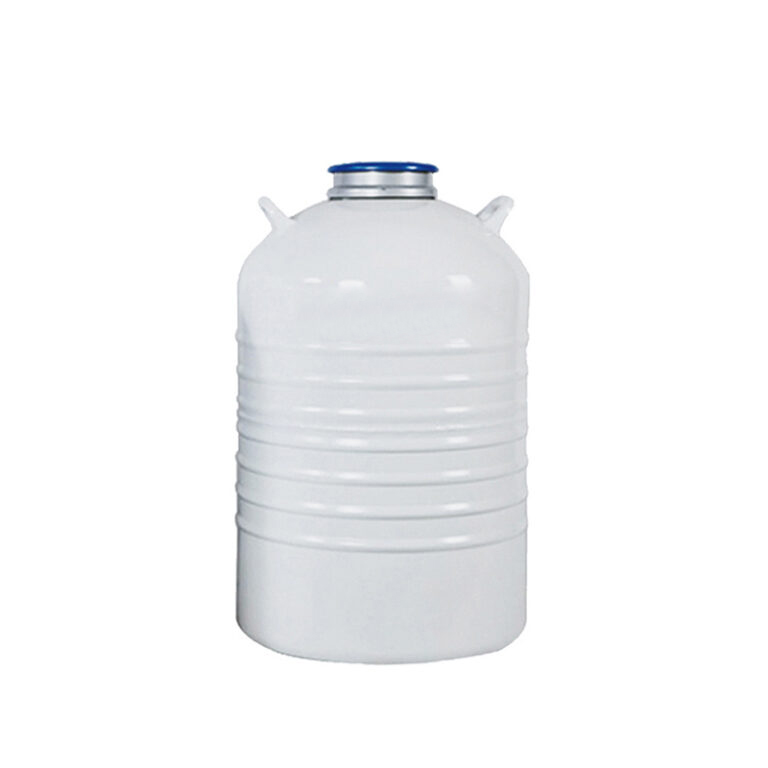

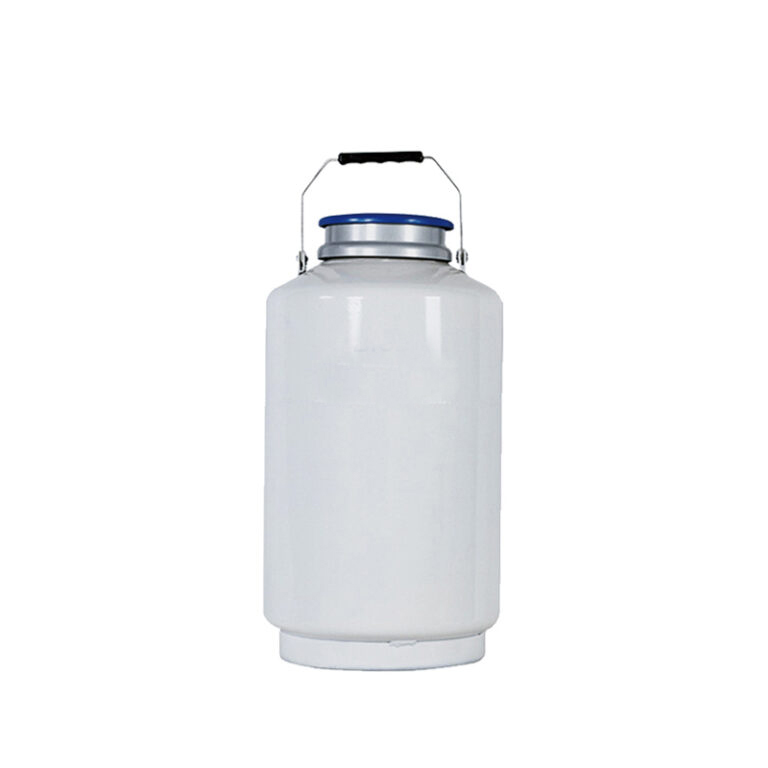

Large Caliber Liquid Nitrogen Container
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Application:
Mainly used for artificial insemination and biological samples storage and transportation.
Large Caliber Liquid Nitrogen Container
Features:
* More than five years life.
* Made of high-strength aluminium alloy.
* Adopting advanced powder coating technique.
Technical Parameters:
| Model | Unit | LNC-10 | LNC-30 -125 | LNC-30 -125F | LNC-35 -125 | LNC-35 -125L | LNC-35 -125F | LNC-47 -127L | LNC-47 -127Y | ||
| Capacity | L | 10 | 31.5 | 31.5 | 35.5 | 35.5 | 35.5 | 47 | 47 | ||
| Weight Empty | kg | 6.3 | 13 | 13 | 14.6 | 14.6 | 14.6 | 18.2 | 18.2 | ||
| Caliber | mm | 125 | 125 | 125 | 125 | 125 | 125 | 127 | 127 | ||
| Outer Diameter | mm | 300 | 462 | 462 | 462 | 462 | 462 | 508 | 508 | ||
| Height | mm | 554 | 704 | 704 | 748 | 748 | 748 | 718 | 718 | ||
| Static Evaporation Loss | L/d | 0.42 | 0.35 | 0.35 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | ||
| Static Holding Time | d | 24 | 90 | 90 | 97 | 97 | 97 | 130 | 130 | ||
| Canister Item No. | / | FTT-2M | S30-125 | FTT-2M | S35-125 | D35-125 | FTT-25-5 | D47-127 | Y47-127-5 | ||
| Rack With 2ml Freezing Tube | Rack | PC | 1 | —— | 6 | 一一 | —— | 6 | —— | 6 | |
| Rack Size | mm | 82*84 | —— | 82*84 | 一一 | —— | 82*84 | 一一 | 105*100 | ||
| Box Size | mm | 76*76 | 一一 | 76*76 | 一一 | 一一 | 76*76 | 一一 | 098 | ||
| Layers Per Rack | PC | 4 | —— | 4 | —— | 一一 | 5 | —— | 5 | ||
| Vial | PC | 100 | 一一 | 600 | 一一 | 一一 | 750 | 一一 | 1110 | ||
| Rack With 5ml Freezing Tube | Rack | pc | —— | —— | —— | —— | —— | —— | —— | —— | |
| Rack Size | mm | —— | —— | —— | 一一 | —— | —— | 一一 | 一一 | ||
| Box Size | mm | —— | —— | —— | 一一 | —— | —— | —— | —— | ||
| Layers Per Rack | pc | —— | —— | —— | 一一 | —— | —— | —— | —— | ||
| Vial | PC | —— | —— | —— | 一一 | —— | —— | —— | —— | ||
| Canister | Canister Outer Diameter | pc | 97 | 97 | —— | 97 | 97 | —— | 104 | 98 | |
| Canister Height | pc | 120 | 120 | —— | 120 | 276 | —— | 276 | 276 | ||
| Canisters No. (Standard) | pc | 1 | 6 | 一一 | 6 | 一一 | 一一 | 6 | 一一 | ||
| Straw Holding Capacity (Single) | 0.5ml | pc | 854 | 5124 | —— | 5124 | —— | —— | —— | —— | |
| 0.25ml | pc | 1940 | 11640 | 一一 | 11640 | 一一 | 一一 | 一一 | 一一 | ||
| Straw Holding Capacity (Double) | 0.5ml | pc | 一一 | —— | —— | —— | 9048 | —— | 10704 | —— | |
| 0.25ml | pc | —— | —— | —— | —— | 20760 | —— | 23604 | —— | ||
| Accessories | PU Bag | pc | —— | √ | √ | √ | √ | √ | — | — | |
| Lockable Lid | set | √ | √ | √ | √ | √ | √ | √ | √ | ||
| Transport Trolley | set | —— | • | • | • | • | • | • | • | ||
| Liquid Nitrogen Temp Monitor | set | • | • | • | • | • | • | • | • | ||
| Packing Size(W*D*H) | mm | 340*340 *615 | 480*480 *900 | 480*480 *900 | 480*480 *915 | 480*480 *915 | 480*480 *915 | 540*540 •890 | 540*540 •890 | ||
| Gross Weight | kg | 15 | 23 | 23 | 24.5 | 24.5 | 24.5 | 32 | 32 | ||
| Note:Standard:V Optional:* Without this feature:— | |||||||||||
| Model | Unit | LNC-65-216 | LNC-95-216 | LNC-115-216 | LNC-145-216 | LNC-175-216 | |
| Capacity | L | 65 | 95 | 115 | 145 | 175 | |
| Weight Empty | kg | 38.3 | 41.3 | 42.3 | 48.9 | 53.8 | |
| Caliber | mm | 216 | 216 | 216 | 216 | 216 | |
| Outer Diameter | mm | 681 | 681 | 681 | 681 | 681 | |
| Height | mm | 712 | 774 | 846 | 946 | 1060 | |
| Static Evaporation Loss | L/d | 0.78 | 0.97 | 0.94 | 0.96 | 0.95 | |
| Static Holding Time | d | 83 | 98 | 122 | 151 | 184 | |
| Canister Item No. | — | FTT-81-4 | FTT-81-5 | FTT-81-6 | FTT-81-8 | FTT-81-10 | |
| Racks With 2ml Freezing Tube | Rack(Standard/Max) | pc | 6 | 6 | 6 | 6 | 6 |
| Rack Size | mm | 142*144 | 142*144 | 142*144 | 142*144 | 142*144 | |
| Box Size | mm | 134*134 | 134*134 | 134*134 | 134*134 | 134*134 | |
| Layers Per Rack | PC | 4 | 5 | 6 | 8 | 10 | |
| Vial | PC | 1944 | 2430 | 2916 | 3888 | 4860 | |
| Accessories | PU Bag | PC | — | — | — | — | — |
| Lockable Lid | set | √ | √ | √ | √ | √ | |
| Transport Trolley | set | * | * | * | * | * | |
| Liquid Nitrogen Temp Monitor | set | * | * | * | * | * | |
| Packing Size(W*D*H) | mm | 810*810*945 | 810*810*1005 | 810*810*1065 | 810*810*1185 | 810*810*1315 | |
| Gross Weight | kg | 60 | 64 | 66 | 73 | 80 | |
| Note:Standard:√ Optional：* Without this feature:— | |||||||
