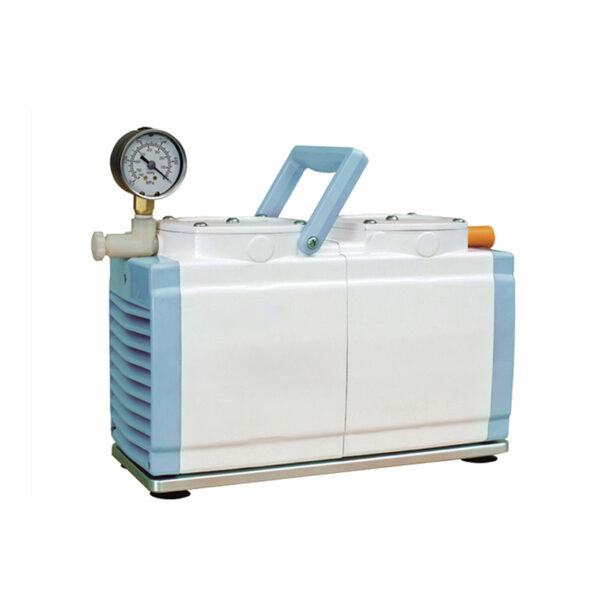

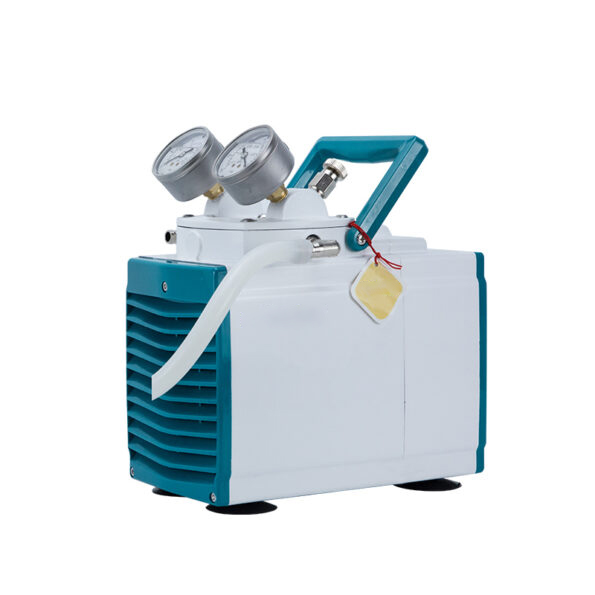

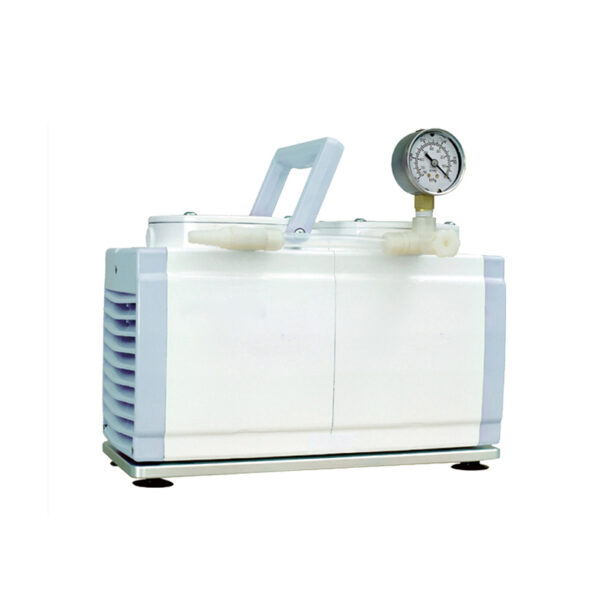

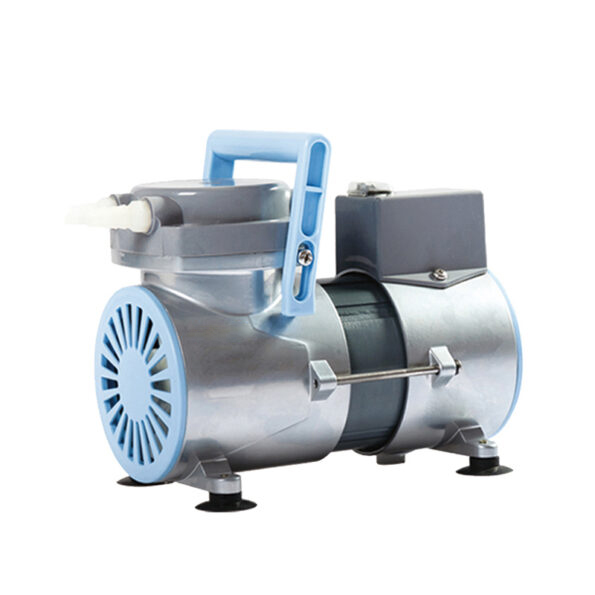

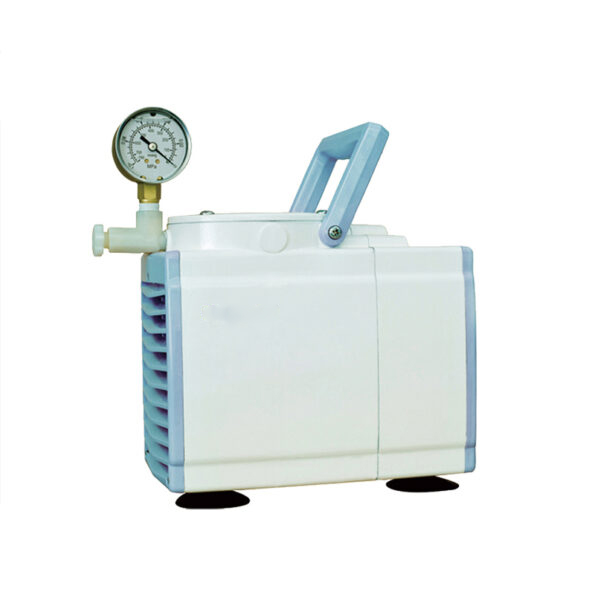

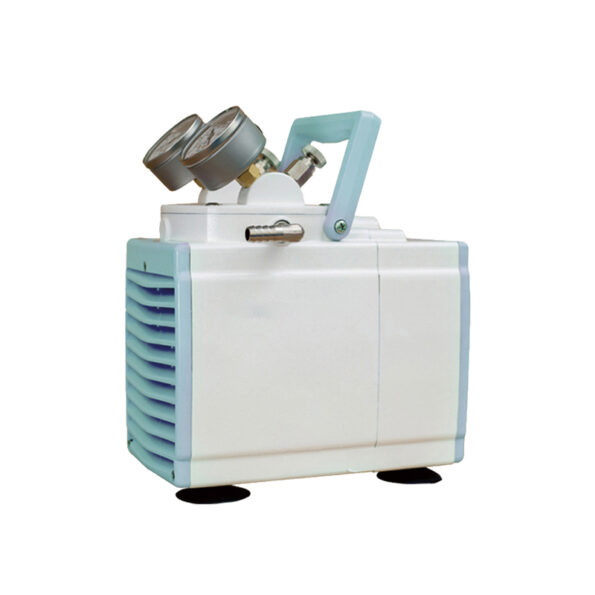

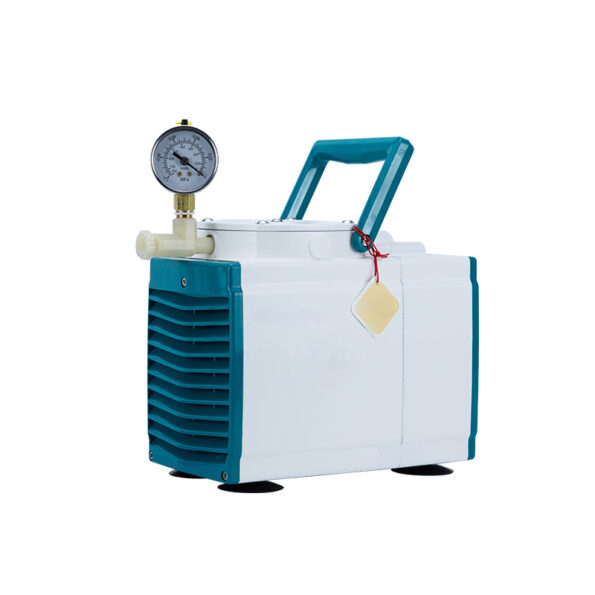

KAZKAZ GM-0.20 GM-0.5Ⅱ GM-0.5 GM-0.33Ⅱ GM-1.0 Laboratory Vacuum Pump
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
1. Oil free,clean exhausted air by built- in filter .
2. Automatic cooling exhaust system ensures 24 h operation continuously.
3. The pressure adjustable design can satisfy a certain range of vacuum and gas velocity. (This function does not apply to model GM-0.20)
4. TEFLON surface treatment, anti-gas corrosion.
5. orange look for anticorrosive vacuum pump(eg: GM-0.33IIP, GM-0.5P, GM-0.5IIP, GM-1.0P)
BIOBASE GM-0.20 GM-0.5Ⅱ GM-0.5 GM-0.33Ⅱ GM-1.0 Laboratory Vacuum Pump
Models:
| Model | GM-0.20 | GM-0.5II | GM-0.5 | GM-0.33II | GM-1.0 |
| Pump Head | 1 | 2 | 1 | 1 | 2 |
| Speed of Evacuation | 12 L/Min | 30 L/Min | 20 L/Min | 60 L/Min | |
| Ultimate pressure | 0.075 Mpa | 0.095 Mpa | 0.08 Mpa | ||
| Vacuum | 250 mbar | 50 mbar | 200 mbar | ||
| Pressure | 30 Psi Positive or negative pressure | Negative pressure | 30Positive, Positive or negative pressure | Negative pressure | 30Positive, Positive or negative pressure |
| Inlet | φ6 mm | ||||
| Outlet | φ6 mm | Silencer | φ6 mm | Silencer | φ6 mm |
| Working Temp. | 7~40℃ | ||||
| Body Temp. | <55℃ | ||||
| Noise Level | <60 dB | <50 dB | |||
| Motor Power | 75W | 160W | |||
| Power consumption | AC110/220V±10%, 50/60Hz | ||||
| Diaphragm | NBR | ||||
| Valves | / | NBR | |||
| Net Weight (kg) | 4 | 10 | 6.6 | 6.2 | 10 |
| Gross Weight(kg) | 4.5 | 11 | 7.6 | 7.5 | 11 |
| External Size (L*W*H)mm | 195*98*156 | 300*120*235 | 210*160*235 | 215*120*235 | 300*160*235 |
| Package Size (L*W*H)mm | 330*210*240 | 314*205*316 | 300*210*310 | 315*200*310 | 380*340*270 |
