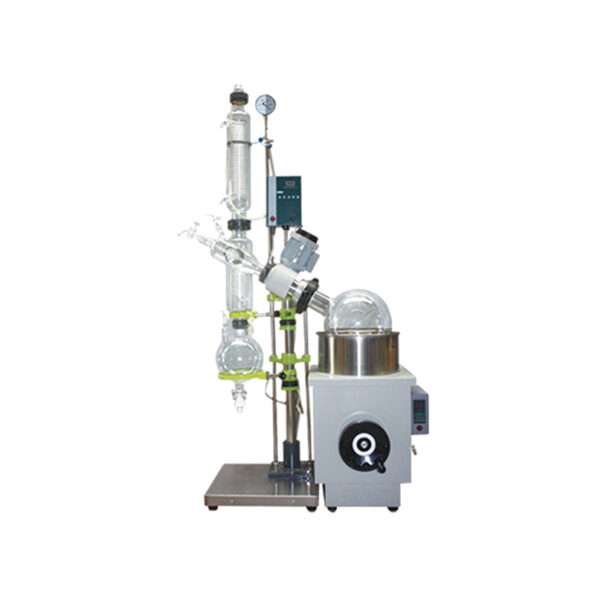

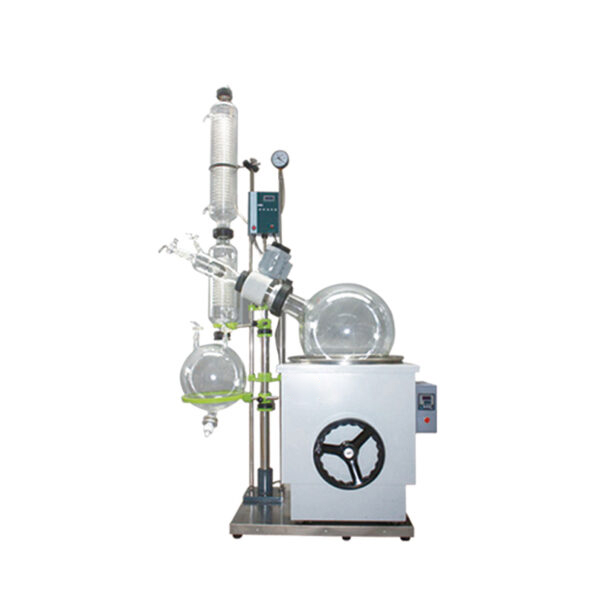

KAZKAZ ExRE-5003 10l 20l 50l Explosion-proof Rotary Evaporator
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
* LED display,
* Explosion-proof motor.
* Explosion frequency inverter.
* Explosion auto-temperature controller,
* Stepless speed controller.* Auto-ifting bath is optional
* Stainless steel and aluminium alloy structure
* Anti-corrosive PTFE sealing good performance
BIOBASE ExRE-5003 10l 20l 50l Explosion-proof Rotary Evaporator
Introduction：
This product can form film under constant temperature heating and negative pressure conditions.Owning to its efficient evaporation and condensation recovery of menstruum ,the product is employed in biological ,medical,chemical and food industries , especially for operations heat-sensitivematerial,crystallization,separation and recovery of menstruum.
Models：
| Model | ExRE-1002 | ExRE-2002 | ExRE-5003 |
| Rotary Bottle | 10L (flange ø95) | 20L(flange ø95) | 50L (flange ø125) |
| Collecting Bottle | 5L(flange φ60-50) | 10L(flange φ60-50) | 20L (flange φ60-50) |
| Condenser | Vertical three back flow, φ120*620mm(main), φ135*475mm(SUB) | Vertical three back flow, φ130*700mm(main), φ160*530mm(SUB) | Vertical three back flow. φ160*835mm(main), φ160*530mm(SUB) |
| Charging Valve | 34#(standard size) | 40#(standard size) | |
| Rotating Speed | 0~120 rpm | ||
| Vacuum | -0.095 Mpa | ||
| Temp.Range | RT~180℃ | ||
| Temp.Accuracy | ±1℃ | ||
| Rotating Power | 120W | 180W | |
| Heating Power | 3KW | 5KW | 8KW |
| Power Supply | AC220/110V±10%, 50/60 Hz | AC220V±10%, 50/60 Hz | AC220V±10%, 50 Hz or 380V, 50Hz |
| External Size(W*D*H) | 930*560*1910 mm | 1000*600*2130 mm | 1330*730*2340 mm |
| Package Size(W*D*H) | 1320*780*755 mm | 1350*670*720mm 680*680*790 mm | 1420*820*720 mm 830*730*910 mm |
| Gross Weight | 116kg | 143kg | 195kg |
| Standard Accessory | 10L rotary bottle*1, 5L collecting bottle*1, | 20L rotary bottle*1, 10L collecting bottle*1 | 50L rotary bottle*1, 20L collecting bottle*1 |
| Explosion-proof transducer,Explosion-proof motor EX120W | |||
| Optional Accessory | Double collection bottle,Auto-lifting,Vacuum pump,Recirculating chiller | ||
Related Products
Brand: Kazkaz Technologies

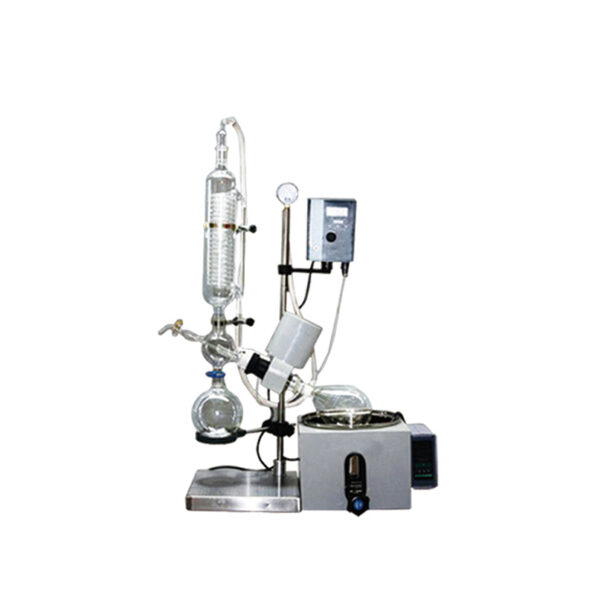

RE-2010 Rotary Evaporator
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*Double sealing rings with Teflon and Viton makes vacuum up to -0.098Mpa.
*Intelligent temperature control and digital temperature display.
*High evaporating and recovery collecting rate.
*Overloading protect function.
*Expandable module design.
*Stepless speed controller.
Brand: Kazkaz Technologies

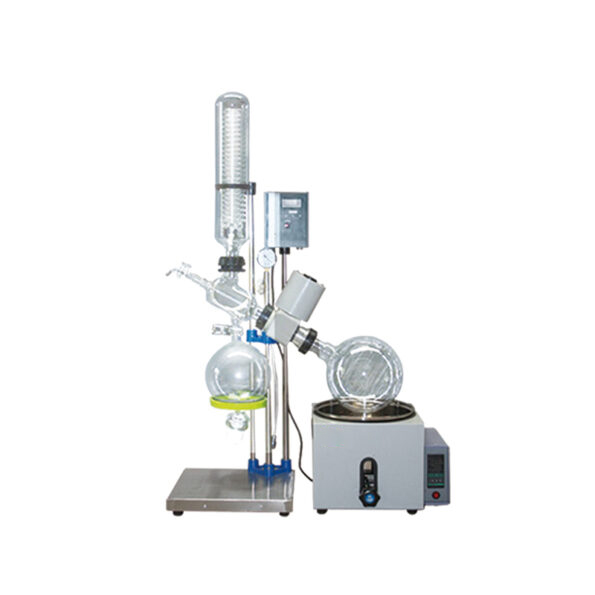

Rotary Evaporator BK-RE-1A
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*Evaporating flask with an ejector, convenient to remove.
*5L water and oil bath dual-purpose heating pot, heating temperature can reach 180°C, easy to switch between water and oil bath heating modes.
*Patented tech
nology condenser, high recovery rate, condensing effect Outstanding.
Brand: Kazkaz Technologies

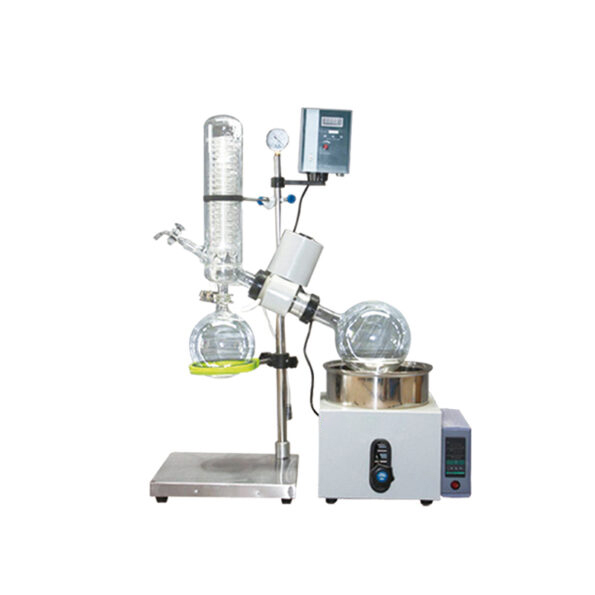

Rotary Evaporator RE-5000
