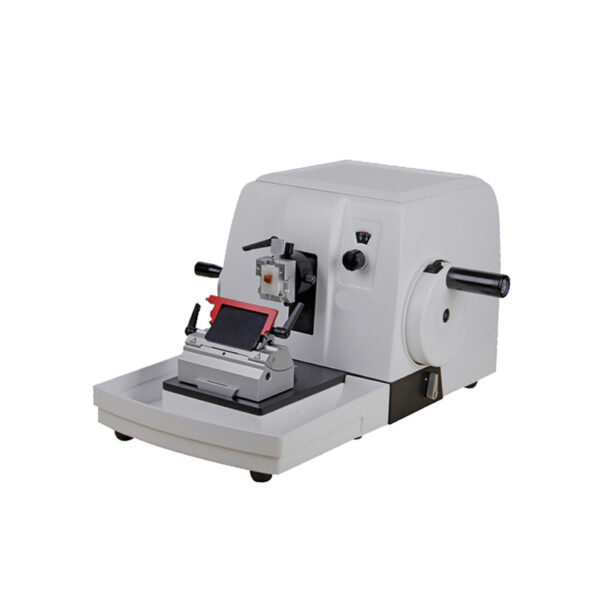

KAZKAZ BK-2218 BK-2268 Manual Rotary Microtome
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Introduction:
These rotary microtomes equipped with imported roller guide rails and high-precision roller screws. This is an ideal device for use in histology due to its ergonomic design, compact structure, high precision, and stable and reliable performance.
BIOBASE BK-2218 BK-2268 Manual Rotary Microtome
Features:
*Large-volume removable waste tray on the top of housing, convenient to use.
*Imported cross-roller guide rails and high precision screw motion mechanism.meihuatrade
*Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.
* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
*The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment
*Hand-wheel balance is precisely adjusted and locked at any position, ensuring safety and convenience of sectioning.
* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Conficuration, cassette clam is optional.
* Blade holder can be laterally moved without direct contact, enabling use of the entire length of the blade.(three different segments)
* Cassette clamp can be locked at any position along each of the three axes, enabling easy adjustment of the specimen
sectioning angle.
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade.
Models:
| Model | BK-2218 | BK-2268 |
| Function | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (Only for BK-2268). | |
| Sectioning Thickness Range | 0~60μm | |
| Section Thickness Setting Options | 0〜2μmincrement 0.5μm 2〜10μm increment 1μm 10~20μm increment 2μm 20〜60μm increment 5μm | 0 〜2μ mincrement 0.5μm 2 〜20μmincrement 1μm 20~60μm increment 5μm |
| Trimming Thickness Range | 0〜60μm | |
| Mini. Sectioning Thickness | 1pm | |
| Max. Specimen Size | 60*70mm (optional clamp) | 70*70mm (optional clamp) |
| Precision | ±1% | |
| Specimen Horizontal Stroke | 29mm | 28mm |
| Specimen Vertical Stroke | 60mm | 70mm |
| Specimen Orientation | XY-8° | |
| External Size(W*D*H) | 570*440*290mm | 590*500*330mm |
| Package Size(W*D*H) | 620*530*450mm | 690*590*500mm |
| Gross Weight | 40kg | 54kg |
