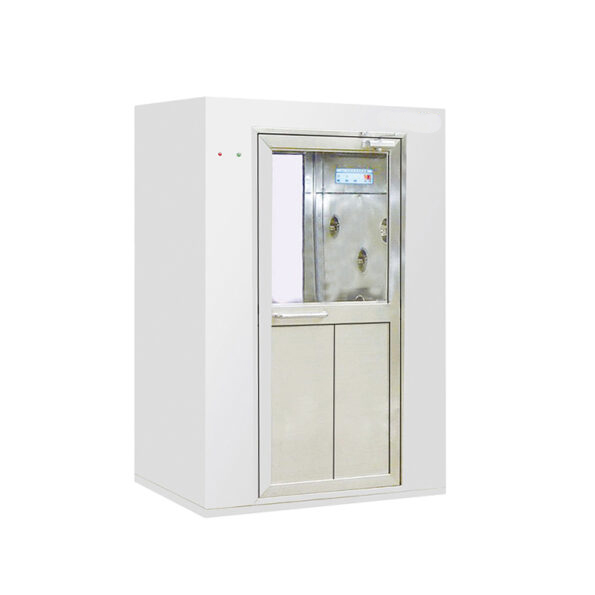

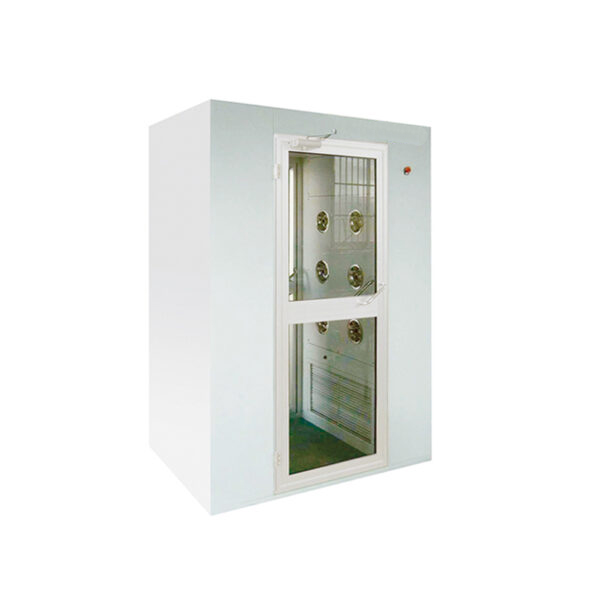

KAZKAZ Air Shower Air Clean Room
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model AS-1P1S AS-1P2S AS-2P2S
Introduction:
Air shower is a necessary passage for person entering clean room in order to minimized the amount of particulate contaminant, achieve workplace strict clean purification standards. Personnel move through the air shower while particulate contaminants are blew off by the clean high speed air. So the dust cannot be brought into clean area.
Features:
1. Photoelectric sensor, automatic blowing.
2. Adopt with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors by electric interlock.
4. LED display with adjustable blowing time(0~99s).
5. HEPA Filter, Class 100 cleanness.
Technical Parameters:
| Model | AS-1P1S | AS-1P2S | AS-2P2S |
| External Size(W*D*H) | 1300*1000*2050mm | 1500*1000*2050mm | 1500*2000*2050mm |
| Shower Area Size(W*D*H) | 800*900*1930mm | 800*900*1930mm | 800*1900*1930mm |
| HEPA Filter | 99.995% efficiency at 0.3μm | ||
| Spraying Wind Speed | 25m/s | ||
| Air Shower Time | 0~99s(adjustable) | ||
| No.of SS Nozzles | 6 | 12 | 24 |
| Fluorescent Lamp | 12W*1 | 12W*1 | 12W*1 |
| Consumption | 550W | 1100W | 2200W |
| Cabinet Material(Optional) | 1. Full cold-rolled steel with powder coating. 2. Internal stainless steel, external with cold-rolled steel. 3. Full Stainless Steel. | ||
| Door Material(Optional) | 1. Cold-rolled steel with powder coating. 2. Stainless Steel. | ||
| Chassis | Stainless Steel | ||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
| Gross Weight | 300kg | 400kg | 700kg |
| Package Size(W*D*H)mm | 1400*1200*2200 | 1600*1200*2200 | 1600*2200*2200 |
