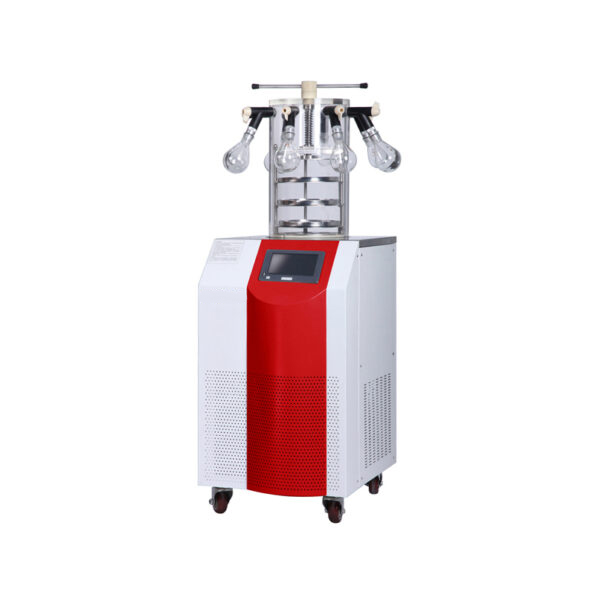

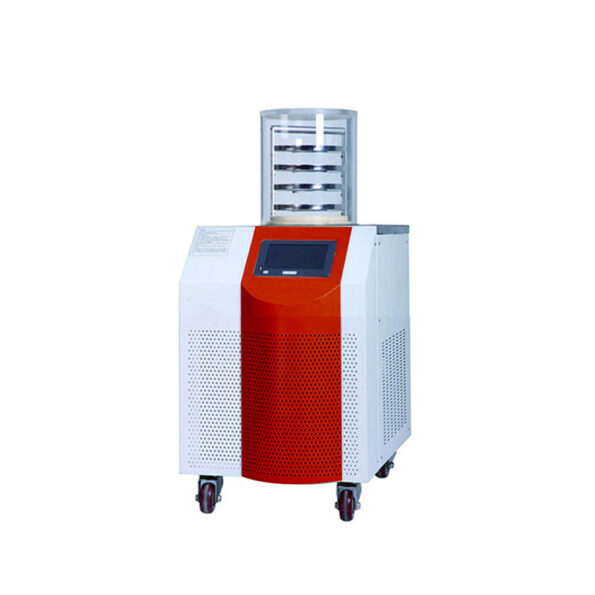

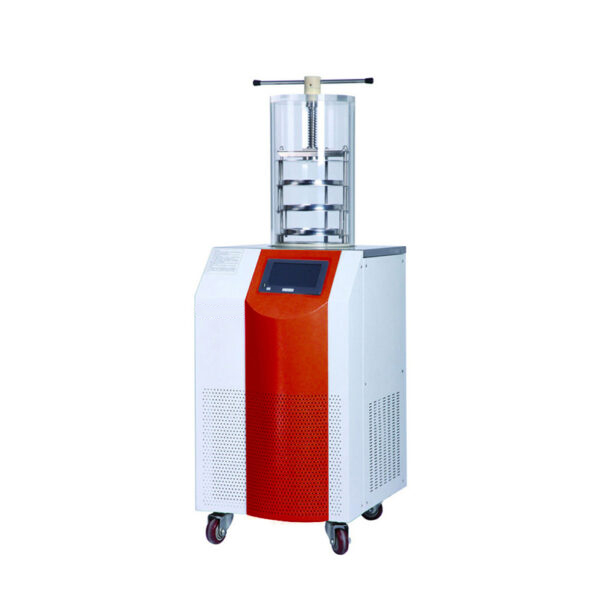

KAZKAZ -60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
KAKAZ -60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine
BIOBASE -60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine
Model
| Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |
| Freeze Drying Area | 0.12m² | 0.18m² | 0.09m² | ||
| Tray | 4/6(Optional)pcs | 3pcs | |||
| Height Between Trays | 76/50mm | 70mm | |||
| Cold Trap Temperature | ≤-60℃/-80℃(Optional) | ||||
| Cold Trap Capacity | 9.3L | ||||
| Cold Trap Size (Dr*H) | Φ217*250mm | ||||
| Vacuum Degree | <10Pa | ||||
| Water Capture Capacity | 4kg/24h | ||||
| Tray Size (D*H) | Φ200*20mm | ||||
| Freeze Drying Time | 24h | ||||
| Loading Capacity/Shelf (Liquid) | 0.3L | ||||
| Total Loading Capacity (Liquid) | 1.2L | 1.8L | 0.9L | ||
| Drying Chamber Size (D*H) | Lower circle Φ260mm, Upper circle Φ240mm Height 450mm | ||||
| Can Load Vials Qty | Φ22mm | 260 | 195 | ||
| Φ16mm | 480 | 360 | |||
| Φ12mm | 920 | 690 | |||
| Refrigerant | R600a+R290+R23 | ||||
| Cooling System | Air cooling | ||||
| Consumption | -60℃: 0.9kW,-80℃: 1.5kW(Optional) | ||||
| Power Supply | 220V/50Hz, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃) | ||||
| Standard Accessory | -60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) | ||||
| Optional Function & Accessory | -80℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models); 800ml wide-mouth flask(for BK-FD12P/PT) | ||||
| External Size (W*D*H) | 480*620*920/1370mm | ||||
| Package Size (W*D*H)mm/ Gross Weight | Main Body | 730*600*1180(80kg) | |||
| Drying Chamber | 400*400*620(15kg) | ||||
| Vacuum Pump | 570*240*360(22kg) | ||||
