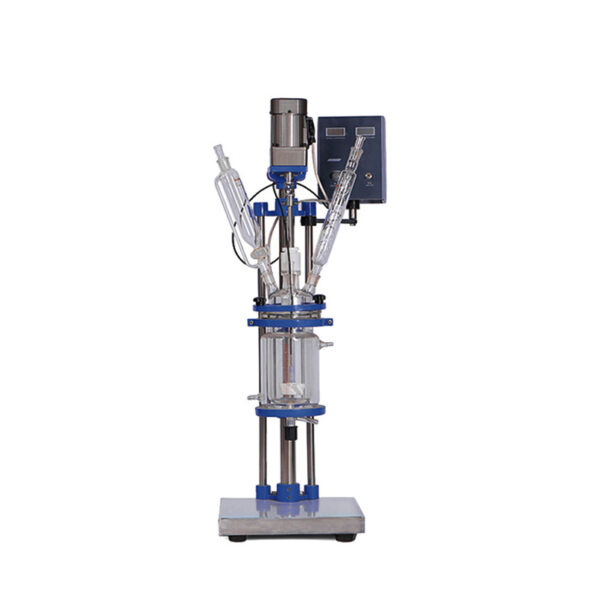

Jacketed Glass Reactor
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Application:
Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Jacketed Glass Reactor
Features:
* GG17 high borosilicate glass, with good chemical and physical properties.
* The evaporation and back-flow of reaction material can be controlled.
* The heat of reaction could be taken away quickly through water, cycling in the jacketed glass.
* The design of large bottle mouth, easier to clean.
* It can be used as a distillation syntheses device.
* The sealing performance is 0.098 Mpa.
* LCD display, easier and more convenient to measure temperature.
Optional Equipment:
* Circulating water vacuum pump: (JGR・1L~5L, recommend mode SHZ-DIII, JGR-10L~100L, recommend model SHZ-95B)
* Refrigerated Circulator
* Circulating water/oil bath
Technical Parameters:
| Model | JGR-1L | JGR-2L | JGR-3L | JGR-5L | JGR-10L | JGR-20L | JGR-30L | JGR-50L | JGR-100L |
| Reaction Flask Capacity | 1L | 2L | 3L | 5L | 10L | 20L | 30L | 50L | 100L |
| Stirring Power | 60W | 120W | 180W | ||||||
| Stirring Speed | 0 〜600rpm(Max.1300 customized) | ||||||||
| Stirring Shaft Diameter | 12mm | 15mm | |||||||
| Motor Torque(g/cm) | 2000 | 2400 | 4800 | 1000 | 1200 | 1500 | 3000 | ||
| Power Supply | AC110/220V, 50/60HZ | ||||||||
| Package Size (W*D*H) | 1260*430*460mm | 1300*580 *540mm | 1310*600 *540mm | 1230*610 *750mm | 1320*630 *750mm | 1650*660*780mm | 1840*720 *910mm | ||
| Gross Weight | 40kg | 46kg | 53kg | 56kg | 81kg | 85kg | 90kg | 100kg | 151kg |
