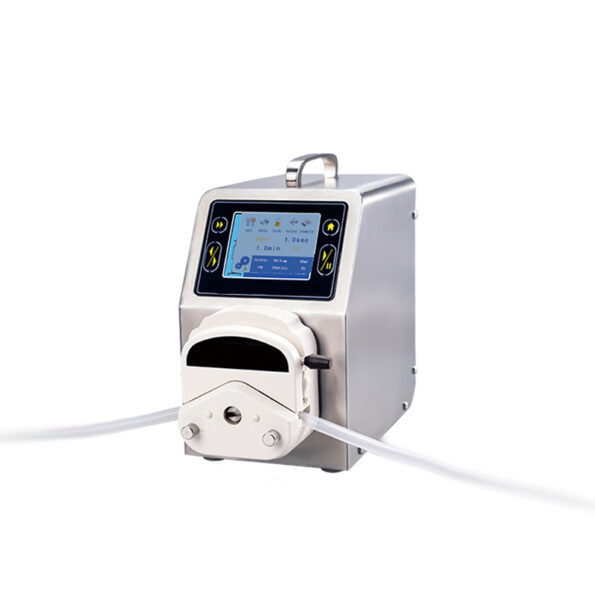

Intelligent Flow Rate Peristaltic Pump FPP Series
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*Storage function-user data storage function:(9 sets of filling data), support RS485/MODBUS communication
protocol, analog control ((0-5V, 0-1OV, 4-20mA…).
*External control function-Multiple mode selection: communication mode, analog mode, foot switch control.Provide
customized services.
*Memory function-data will be stored in time after power off.
*Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value, and the
system will automatically carry out flow calibration to ensure the flow accuracy.
*Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes,
etc
*Suckback functionBy setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid
accuracy.
*Lock screen function-lock screen design, error proof touch, application more secure.
*LCD touch screen, real-time display of operation status and working parameters.
*Whole housing design-stainless steel housing, sturdy and durable , multi-face seamless whole housing design, Long service life, high cost performance.
Intelligent Flow Rate Peristaltic Pump FPP Series
Technical Parameters:
| Model | FPP-BT100LC | FPP-BT300LC | FPP-BT600LC |
| Pump Head | YZ1515X, YZ2515X, DG series(only FPP-BT100LC) | ||
| Speed Range | 0.1 -100rpm(Reversible) | 0.1-300rpm(Reversible) | 0.1 -600rpm(Reversible) |
| Speed Resolution | 0.1 rpm | ||
| Flow Range | 0.0015-380ml/min | 0.007-1140ml/min | 0.007-2280ml/min |
| Filling Precision | <±0.5% | ||
| Display | LCD | ||
| Back Suction Angle | 10°~720° | ||
| Back Suction Speed | 10〜100rpm |  10~300rpm | |
| Optional Accessory | Foot switch | ||
| Environmental Conditions | Temperature: 0 ~ 40 °C; Humidity: < 80%, no condensation | ||
| Consumption | 22W | 35W | 50W |
| Power Supply | AC110/220V±10%, 50/60HZ | ||
| Instrument Size(W*D*H) | 212*140*240mm | ||
| Package Size(W*D*H) | 363*253*353mm | ||
| Gross Weight | 6kg | 6.9kg | |
