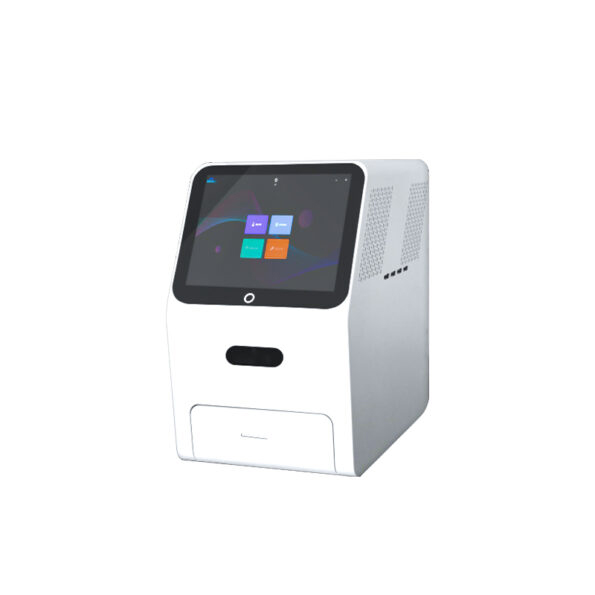

Integrated Automatic Gel Imaging System BK-AGX3
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Applications
Nucleic acid detection with various fluorescent dyes such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel red Gel, Green Texas Red, Fluorescein labeled DNA/RNA, etc.
Integrated Automatic Gel Imaging System BK-AGX3
Features
1.Camera lens, adopt dark field camera module F 1.0 Super aperture 20 million Solutions Analyticity
2.Touch system 12.5 inches touch HD display, one touch imaging, intelligent processing system
3.Special filter, multilayer coated filter is adopted passing of absolute stray light
Technical Parameters
| Model | BK-AGX3 |
| Camera Resolution | 6.0MP |
| Photosensitive Efficiency | ≥79% |
| Exposure Time | 1ms-5000ms |
| Pixel Density | 16 Bits (0-65535) |
| OD | ≥4.8OD |
| Lens | Large aperture autofocus lens F=1:1.2, 20 million auto focus lens |
| UV Transmission | 302nm, optional other transmitted blue light |
| White Light Reflection | LED reflection (cold light) |
| White Light Transmission | White light conversion sample board |
| Filter | Standard 590nm, other optional |
| Shooting Area | 21×21cm |
| Timer Shut Down | 1-60min |
| Touch System | 12.5-inch touch system |
| Power Supply | 110-240V, 50/60Hz |
| Packing Size | 450*462*666mm |
| Gross Weight | 22.3kg |
