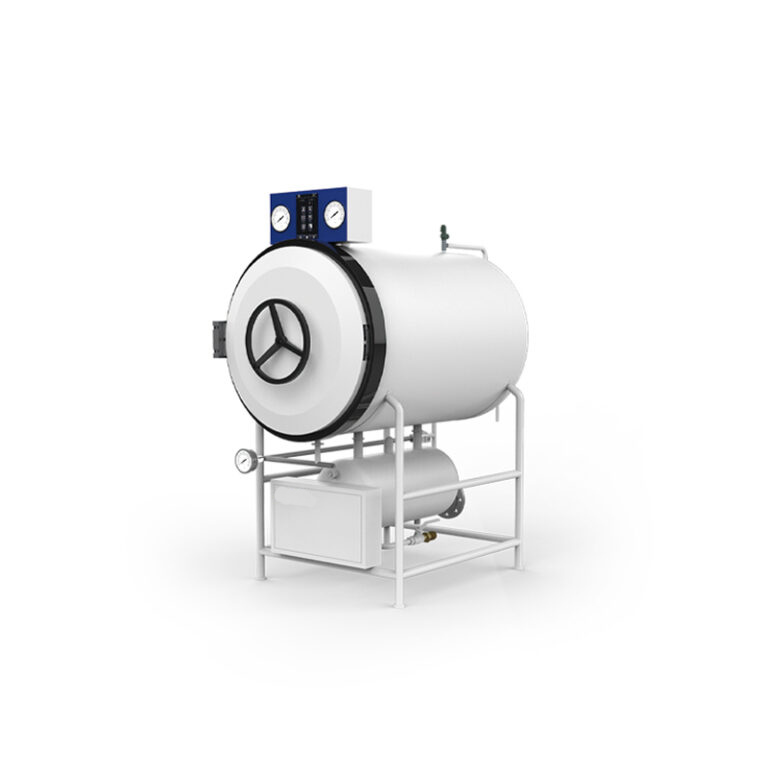

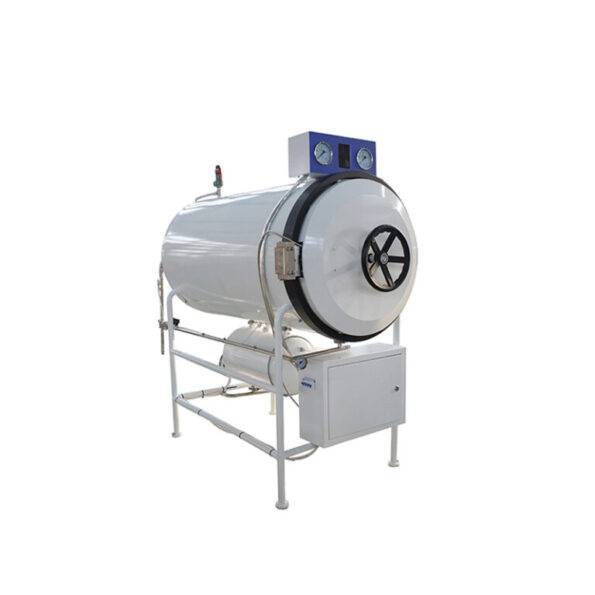

Horizontal Cylindrical Pressure Autoclave BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Introduction:
A sterilization equipment for labs and healthcare, featuring a cylindrical design, operates under high pressure to ensure effective decontamination of instruments and materials.
Features:
1. Brand New Operation Interface
The LCD touch screen can display temperature, time, operating status and fault alarm in real time, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.
2. Drying Function
With auxiliary drying function, it is used to dry sterilized items.
3. Protection Device
Equipped with over-temperature and over-pressure automatic protection devices.
4. Steam Generator
The equipment has a built-in high-speed steam generator, which saves time and effort without external steam source.
5. Automatic Operation of The Program
The equipment is externally connected to the water source, and there is no need for manual water replenishment. After the customer selects the program, the equipment can complete the entire process from water injection to drying without human intervention. After the program is completed, the sound prompts that the sterilization is complete.
6. Programs: Wrapped, Unwrapped, Dressing, Rubber, Drying, DIY solid.
Technical Parameters:
| Model | BKQ-H150 | BKQ-H200 | BKQ-H300 | BKQ-H400 |
| Volume | 150L | 200L | 300L | 400L |
| Design Pressure | 0.28MPa | |||
| Rated Operating Temperature | 121℃/134℃ | |||
| Rated Working Pressure | 0.12MPa/0.23MPa | |||
| Chamber Material | S30408 | |||
| Power Supply | Three-phase 380V, 50/60Hz Three-phase 220V, 50/60Hz Single-phase 220V, 50/60Hz(Note: Be careful when ordering this voltagethe current is close to 75A) | |||
| Rated Power | 16KW | |||
| Ambient Temperature | 5~40℃ | |||
| Sterilization Time Adjustable Range | 0~99min | |||
| Adjustable Drying Time Range | 0~99min | |||
| Adjustable Drying Temperature Range | 115℃~134℃ | |||
| Chamber Size(φ*L)mm | φ500*820 | φ500*1050 | φ650*935 | φ650*1235 |
| Packing Size(L*D*H)mm | 1500*820*1910 | 1730*820*1910 | 1750*950*2030 | 2000*950*2030 |
| Gross Weight(kg) | 320 | 355 | 475 | 535 |
