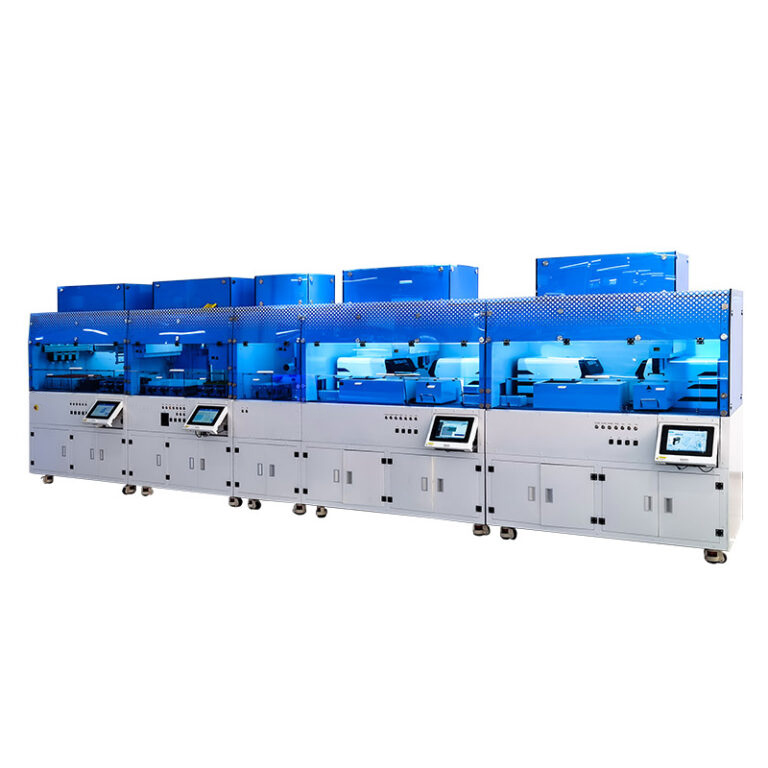

High-throughput Nucleic Acid Detection Workstation
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply

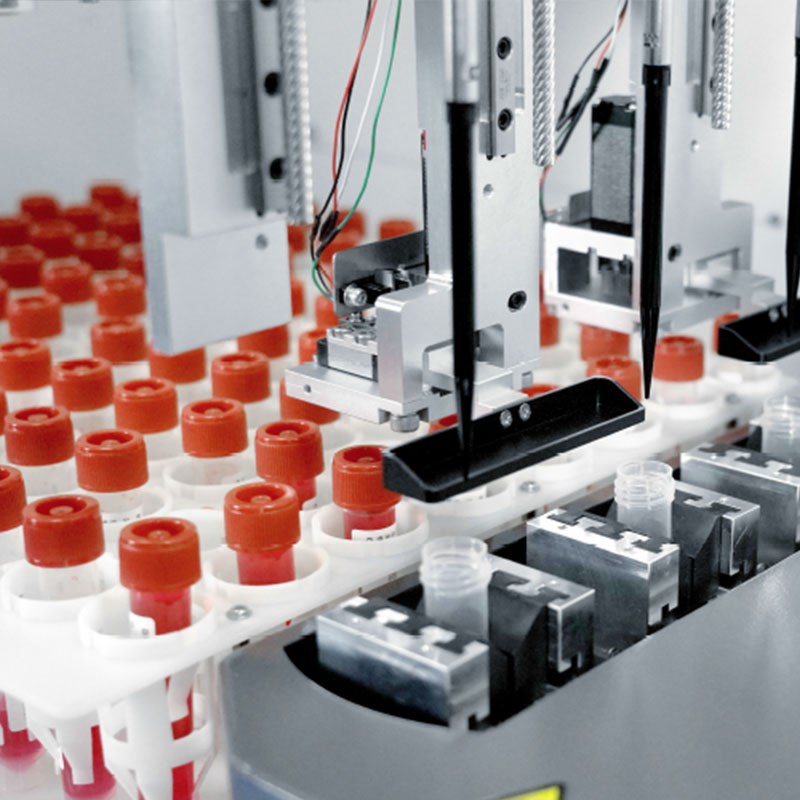

Automated mechanical operation to reduce human error
Equipped with a fast PCR system to improve experimental efficiency
Feature
Technical Parameters
Technical Parameters
| Throughput | 1-96 |
| Speed | Daily inspection volume ≥ 6000 tubes |
| Adding Sample | 2-1000ul |
| Temperature Accuracy | ±0.3℃ |
| Temperature Uniformity | ±0.3℃ |
| Module Temperature Range | 4-100℃ |
| Sample Volume | 10-50ul |
| Fluorescence Channel | 4 channels, FM , VIC , ROX , Cy5 |
| Machine Function | Putting the original tube on the machine + sample splitting + nucleic acid extraction + R C R system construction + amplification detection |
| Sample Loading Method | Flow loading, single sample volume 96 |
| Consumables Added | Flowing consumables, running without stopping |
| Liquid Detection Scheme | Pneumatic liquid level detection scheme, intelligent detection of blocked needle |
| Sample Needle Specifications | 50μl, 200μl, 1000μl optional, disposable black conductive needle with filter |
| Sampling Tube Adaptation | Suitable for conventional 5mL, 10mL, 20/30mL virus sampling tubes |
| Protective Function | Power-on self-test, high temperature alarm, over-temperature protection, needle removal and needle removal protection |
| Disinfection &Decontamination Methods | UV lamp (cup compartment + extraction compartment + extraction area + sealing compartment + testing compartment), multi-directional disinfection |
| Touch Screen | Four 10.1-inch capacitive touch screens |
| External Size | 6300*750*1900mm |
