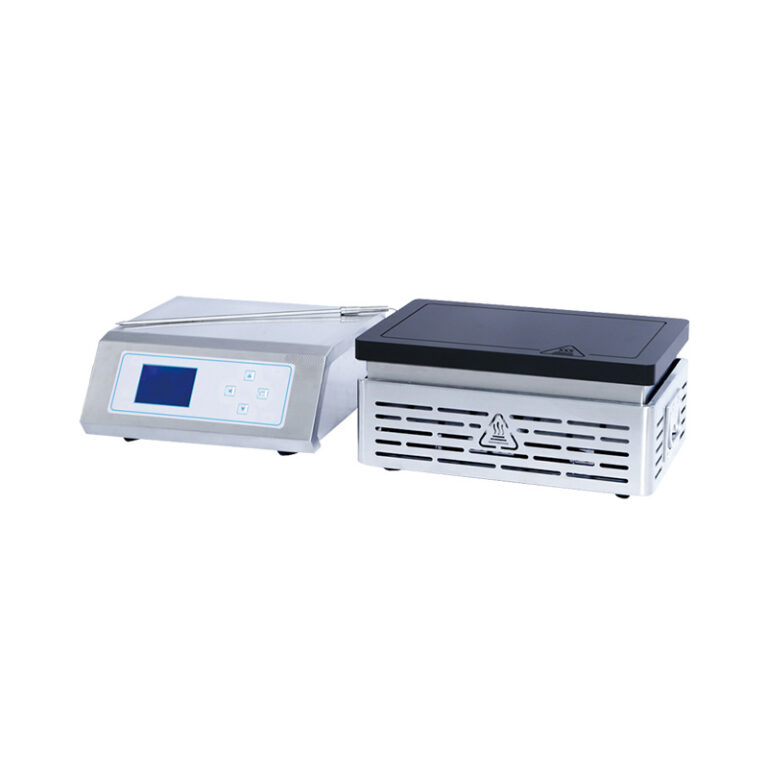

Graphite Hot Plate GH-300 GH-400 GH-450 GH-600
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Double shell design, with anti-corrosion power coating, keeps the normal work of the instrument in acid environment.
Graphite Hot Plate GH-300 GH-400 GH-450 GH-600
Features:
1. PID controller
2. Totally enclosed high purity graphite, keeps temperature uniformity
3. Double shell design, with anti-corrosion power coating, keeps the normal work of the instrument in acid environment.
Technical Parameters:
| Model | GH-300 | GH-400 | GH-450 | GH-600 |
| Plate Size | 300*200mm | 400*280mm | 450*350mm | 600*400mm |
| Range of Temperature | RT+10~450°C | |||
| Temperature Control Accuracy | ±0.1 °C | |||
| Material(Hot plate) | Graphite with anti-bacteria powder coating | |||
| Temp. Fluctuation Degree | ±1.0°C | |||
| Power Supply | AC220V, 50/60HZ | |||
| Consumption | 1000W | 1500W | 2000W | 3000W |
| External Size(W*D*H)mm | 300*275*210 | 400*355*230 | 450*425*230 | 600*475*230 |
| Package Size(W*D*H)mm | 350*330*260 | 520*450*345 | 570*520*345 | 740*580*345 |
| Gross Weight(kg) | 10 | 15 | 17 | 28 |
