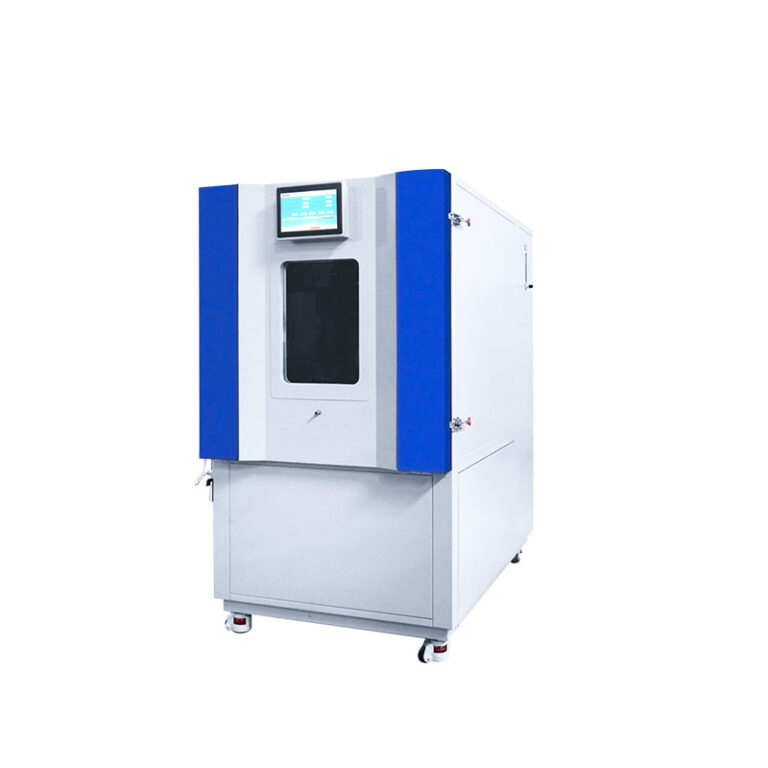

Formaldehyde Emission Test Chamber

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Introduction:
BJPX-FE801-3 is suitable for the determination of formaldehyde emission of various wood-based panels, composite wood floors, and interior decoration materials such as carpets, carpet pads, and carpet adhesives, and can be used for the detection of other volatile harmful gases. The indoor climate environment is simulated realistically, and the detection results are closer to the real environment, so they are real and reliable.

  • Formaldehyde Emission Test Chamber

    Request a Call Back

    •  Ask a Question

      Formaldehyde Emission Test Chamber

      Ask a Question


        Share
      Formaldehyde Emission Test Chamber
      Features: * Overtemperature alarm, dew point overtemperature alarm, low water level alarm. * Real-time curve, system temperature, humidity, dew point temperature can be viewed in the display screen. * Temperature and humidity controller, touch screen and PLC control module, microcomputer automatic control. * The box structure adopts jacket design. * Power off protection function.   Technical Parameter:
      Model BJPX-FE801-3
      Temp Range 15~40℃
      Temp Accuracy ±0.5℃
      Humidity Range 40~80%RH
      Humidity Accuracy ±3%RH
      Air Exchange Rate Range 0.2~2m3/h(Air change rate 0.2~2 times/h)
      Air Exchange Rate Accuracy Ventilation rate±1%
      Air Flow Rate 0.1~2m/s
      Air Rate Accuracy ≤0.05m/s
      Test Chamber Size 1±0.02m3
      Internal Size 800*1000*1150mm
      Pressure 10±5Pa
      Sealing Under 1KPa relative pressure, leakage rate ≤1* m3/min
      Constant Temperature Box Polyurethane and insulation board Outer wall: steel plate, white spraying Inner wall: 304 stainless steel plate
      Background Concentrations Formaldehyde<0.006mg/m3 TVOC<0.05mg/m3 Single VOC<0.005mg/m3
      Consumption Starting power≤4kw Running power 2kw
      Power Supply Standard: 220V 50/60Hz Optional: 110V 50/60Hz
      External Size 1750*1150*1860mm
      Net Weight
      450kg
