Dispensing Peristaltic Pump BK-T100-BF
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Applications
Peristaltic pumps are mainly used for various liquid transfer. The peristaltic pump driver provides power to drive the pump head to run, and the rotor in the pump head rotates, relying on the pumping efficiency generated by the alternate extrusion and release of several rotors along an elastic hose to work. The squeezed fluid in the tube produces flow output, and when the tube returns to its original state by its own elasticity after the pressure disappears, the volume increases, a vacuum is generated, the fluid is sucked in, and the cycle is repeated.

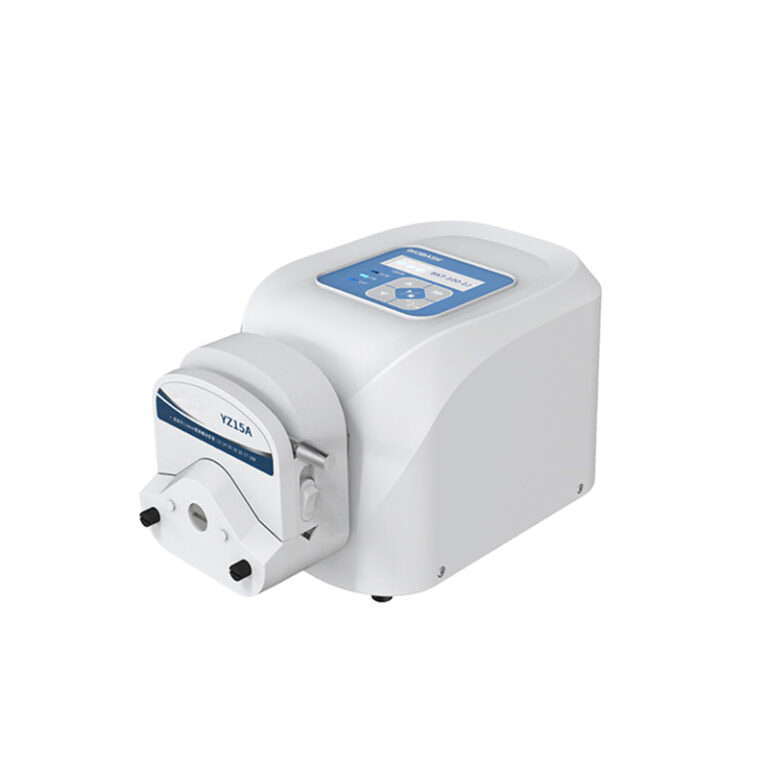

Standard Peristaltic Pump BKT-100-2J
Features：
1. Full speed function: realize fast filling and emptying.
2. Speed regulation function: The speed can be adjusted manually, or controlled through an external control interface.
3. Direction function: reversible forward and reverse.
4. Display function: display the current speed, direction and status.
5. Power-off memory function: memorize the working state before power-off (continuous work for more than 5s)
Technical Parameters：
| Model | BKT-100-2J |
| Pump Head | YZ15A |
| Speed Range | 0.1-100rpm |
| Speed Resolution | 0.1rpm |
| Flow Range | 0.0002-380Ml/min |
| Working Condition | 10-40℃, ≤80% |
| Display | LED displays current speed |
| Adjustment Way | Continuous adjustment of membrane keys |
| Protection Class | IP31 |
| Suitable Pump Tube | 13# 14# 19# 16# 25# 17# 18# |
| Power | 30W |
| Power Supply | 110V/220V, 50/60Hz |
| Packing Size | 335*255*210mm |
| Gross Weight | 3kg |
