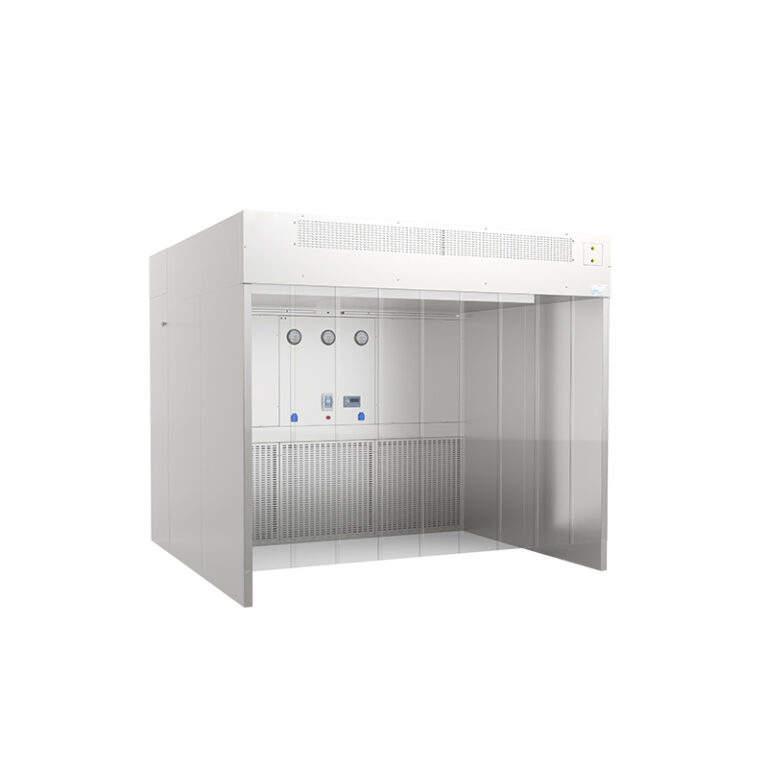

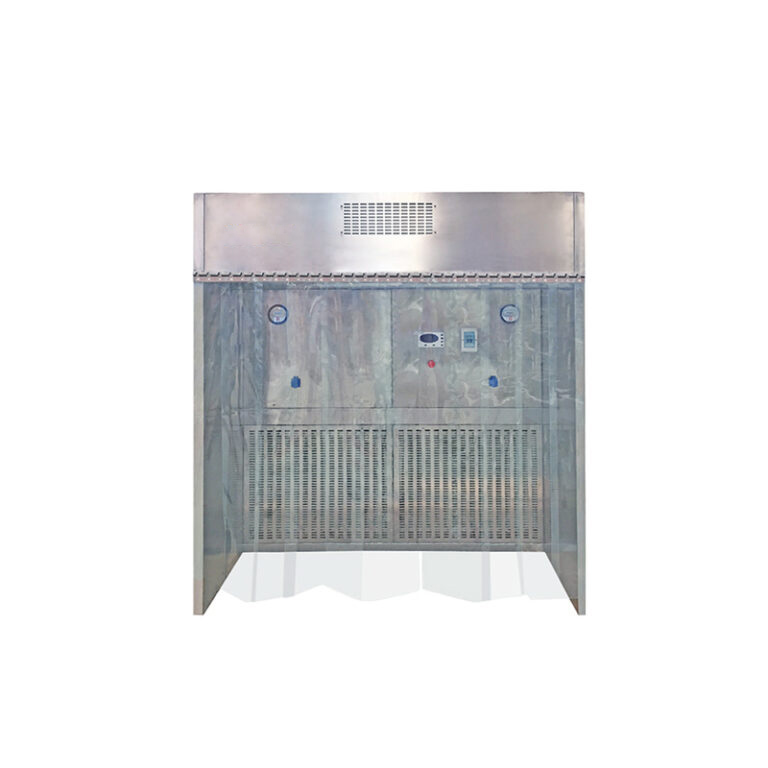

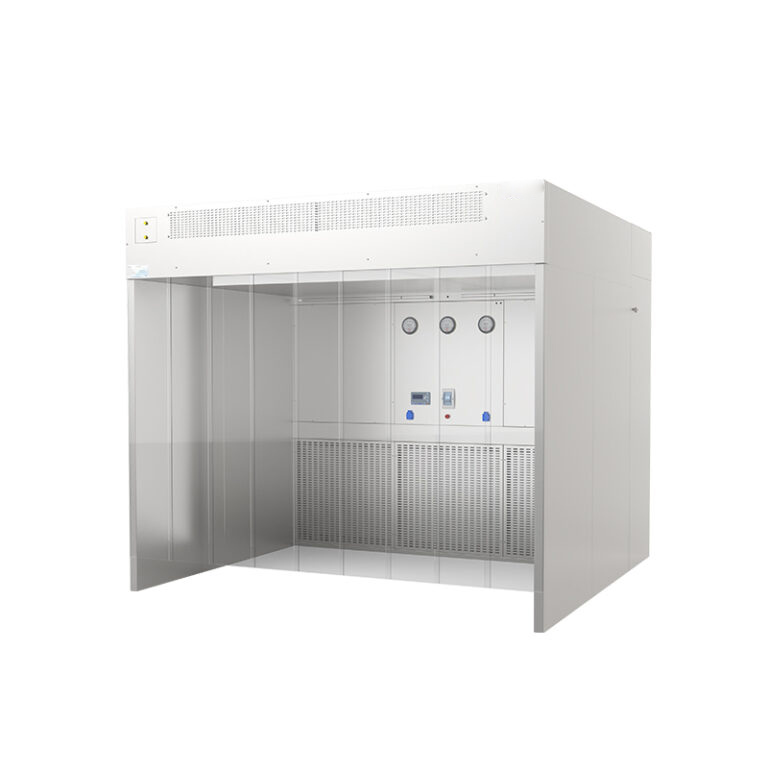

Dispensing Booth (Sampling or Weighing Booth)
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKDB-1200 BKDB-1800 BKDB-2400
Introduction:
Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or wei
ghing booth.
Features:
1. Customized design is welcome.
2. Unique designed air duct effectively controls the noise.
3. Smooth transitions of wall and ground can eliminate the blind angle.
4. Differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
8. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.
Technical Parameters:
Technical Parameters:
| Model | BKDB-1200 | BKDB-1800 | BKDB-2400 |
| Clean Level | ISO 5(Class 100), Class A | ||
| HEPA Filters | 99.995% efficiency at 0.3μm | ||
| Air Volume | Supply air volume: ≤7500m³/h, Exhaust air volume: ≤2250m³/h, Adjustable | ||
| Material | Fully stainless steel | ||
| Air Velocity | 0.3~0.6m/s, adjustable | ||
| Pressure Gauge | 3pcs | ||
| Noise | ≤75dB | ||
| UV Lamp | 30W*1 | 40W*1 | 30W*2 |
| Emission of 253.7 nanometers, with UV timer | |||
| Illuminating Lamp | 14W*4 | 16W*4 | 16W*4&14W*2 |
| LED lamp, Illumination: ≥500lux | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
| Consumption | 600W | 1000W | 1700W |
| Sockets | 2pcs | ||
| Work Area Size(W*D*H) | 1200*1200*2000mm | 1800*1800*2000mm | 2400*1800*2000mm |
| External Size(W*D*H) | 1300*1700*2400mm | 1900*2300*2400mm | 2500*2400*2400mm |
| Gross Weight | 420kg | 750kg | 840kg |
| Package Size(W*D*H) | 1440*2540*1980mm | 2020*760*2420mm 2020*660*495mm 1950*530*2160mm | 2640*960*2380mm 2640*780*680mm 2640*560*2250mm |
| Customized design for clean level, size or material is available | |||
