Colorimeter BCM-110 BCM-200
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Colorimeter BCM-110 BCM-200
Colorimeter BCM-110 BCM-200

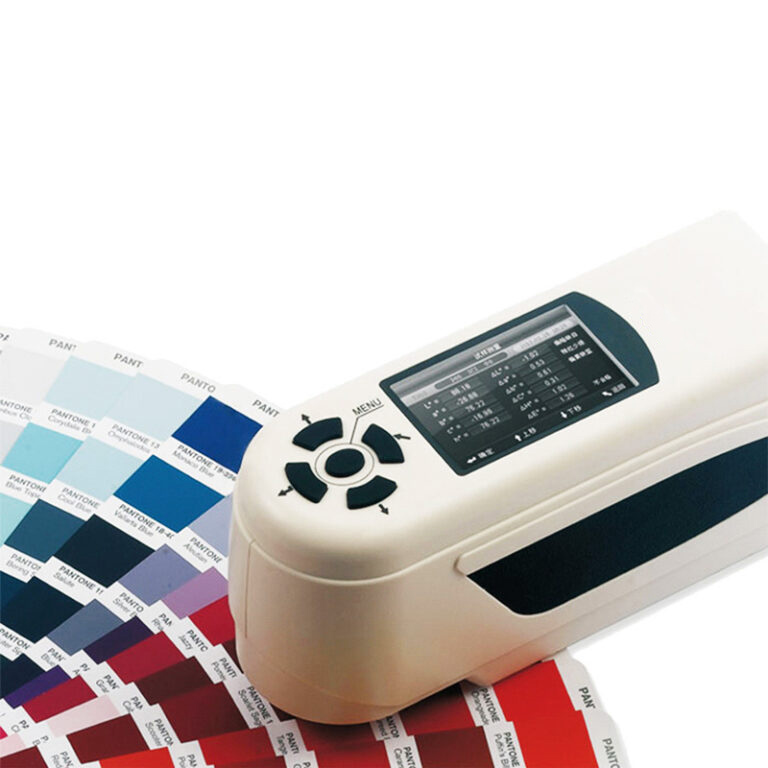

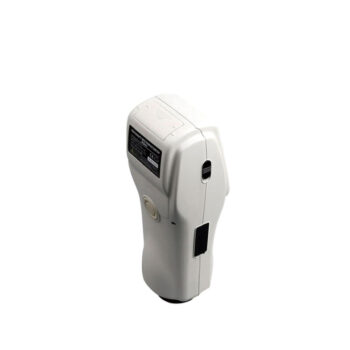

Features for BCM-110:
* Built-in white plate parameters. No need to calibrate each time.
* Double locating: illuminating locating and precise cross locating.
* Switchable double measurement end face: large area stable end face and small area measurement for concave-convex end face.
* New integrating sphere optical path design: eliminating the stray light of main optical path and auxiliary optical path.
* Equipped with rechargeable-capacity Li-ion battery.
* Configured CQCS3 software to realize more functions by connecting PC computure
* Hand-head structure, small and convenient

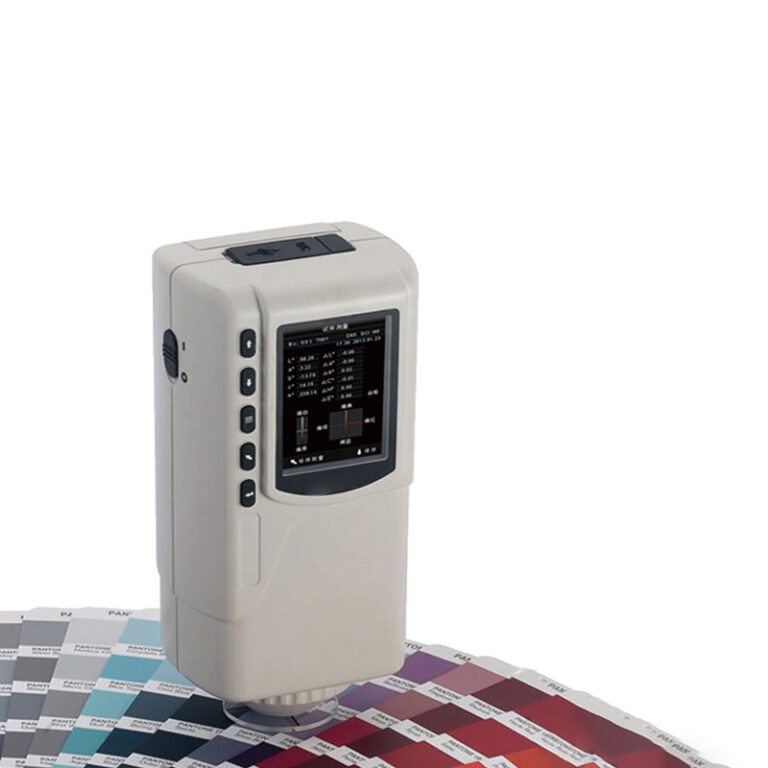

Features for BCM-200:
* Leading Humanity Design and Convenient Operation, Auto White and Black Calibration at Startup, Structure Design in line with Ergonomics
* Stable Measurement Performance
* Convenient and Fast Locating
* PC Software -CQCS3 Software realize more function expansion.
a. The corresponding software serial number and password protection.
b. Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
* Advanced Power Management Design
a. Using high capacity Li-ion battery in colorimeter. It can be repeatedly charged.
b. Measuring more than 3000 times on one charge.
Technical Parameters:
| Model | BCM-110 | BCM-200 |
| llluminatingA/iewing Geometry | 8/d | |
| Measuring Aperture | φ4mm | φ8mm |
| Detector | Silicon photoelectric diode | |
| Color Space | CIEL*a*b*C*h* CIEL*a*b*CIEXYZ | |
| Color Difference Formula | ΔE*ab ΔL*a*b ΔE*C*h | |
| Light Source | D65 | |
| Light Source Device | LED blue light excitation | |
| Display | TFT LCD | |
| Errors Between Each Equipment | ≤0.80ΔE*ab | ≤0.50ΔE*ab |
| Storage | 100pcs standards, 20000pcs samples | 100pcs standards, 20000pcs samples |
| Repeatability | Standard deviation within AE*ab 0.08 Average of 30 measurements of standard white plate | |
| Lamp Life | 3 years, more than 1 million time | 5 years, more than 1.6 million time |
| Charging Time | 8 hours-100% electricity | 2 hours(8 hours for first charge)-100% electricity |
| Measurement Times Before Recharging | 3000 times in 8 hours | |
| Ambient Temp./Humidity Range | -10~40°C, relative humidity 0-85% without condensation | |
| Data Interface | USB | |
| Optional Accessory | Miniature thermal printer, Powder test box | Universal Test Components, Powder test box, Miniature thermal printer |
| Power Supply | Rechargeable li-ion battery 3.7V@3200mAh | |
| External Size(W*D*H) | 205*67*80mm | 205*70*100mm |
| Package Size(W*D*H) | 450*230*380mm | |
| Net Weight | 0.5kg | 0.45kg |
| Volume Weight | 4kg | |
