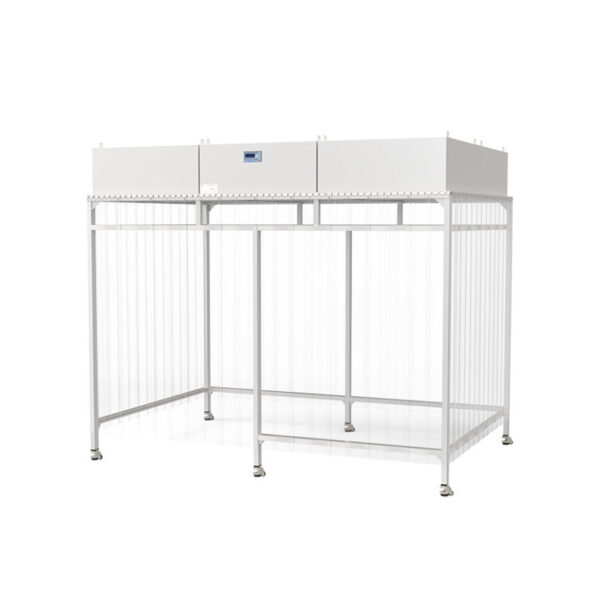

Clean Booth(Down Flow Booth)
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKCB-1500 BKCB-2000 BKCB-3000 BKCB-5000
Introduction:
Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.
Features:
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement(Universal wheel can be installed).
Technical Parameters:
| Model | BKCB-1500 | BKCB-2000 | BKCB-3000 | BKCB-5000 |
| External Size(W*D*H) | 2000*1500*2530mm | 3000*2000*2530mm | 4000*3000*2530mm | 5000*5000*2530mm |
| Internal Size(W*D*H) | 1920*1380*2140mm | 2920*1880*2115mm | 3880*2880*2095mm | 4880*4880*2095mm |
| HEPA Filters | 99.995% efficiency at 0.3μm | |||
| Consumption | 800W | 1500W | 2800W | 5000W |
| FFU Nos. | 4pcs | 6pcs | 12pcs | 25pcs |
| Clean Level | ISO 5(Class 100), Class A | |||
| Control System | Microprocessor control system | |||
| Rectangular Tube Material | Aluminium alloy | |||
| Wall Material | Anti-static dustproof curtain | |||
| Blower | Built-in centrifugal blower, Speed adjustable | |||
| UV Lamp | 40W*2 | 40W*2 | 40W*3 | 40W*5 |
| Emission of 253.7nanometers, with UV timer | ||||
| Illuminating Lamp | 16W*1 | 16W*2 | 16W*3 | 16W*5 |
| LED Lamp, Illumination: ≥500lux | ||||
| Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
| Noise | ≤75db | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
| Gross Weight | 390Kg | 670Kg | 1100Kg | 2900Kg |
| Net Weight | 355kg | 625kg | 1020kg | 2800kg |
| Package Size(W*D*H) | 2110*930*920mm 2280*660*500mm | 3080*980*1280mm 3080*660*550mm | 3200*880*980mm*1 3200*1820*1350mm*1 | 4080*980*1280mm*3 1260*660*1280mm 5080*460*500mm |
| Customized design for clean level, size or material is available | ||||
