Carbon & Sulfur Analyzer
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Introductions:
High-frequency Infrared Carbon & Sulfur Analyzer can determine the percentage of carbon and sulfur in steel, iron, alloy, nonferrous metal, cement, mineral, glass and other material.
Carbon & Sulfur Analyzer
Technical Parameters:

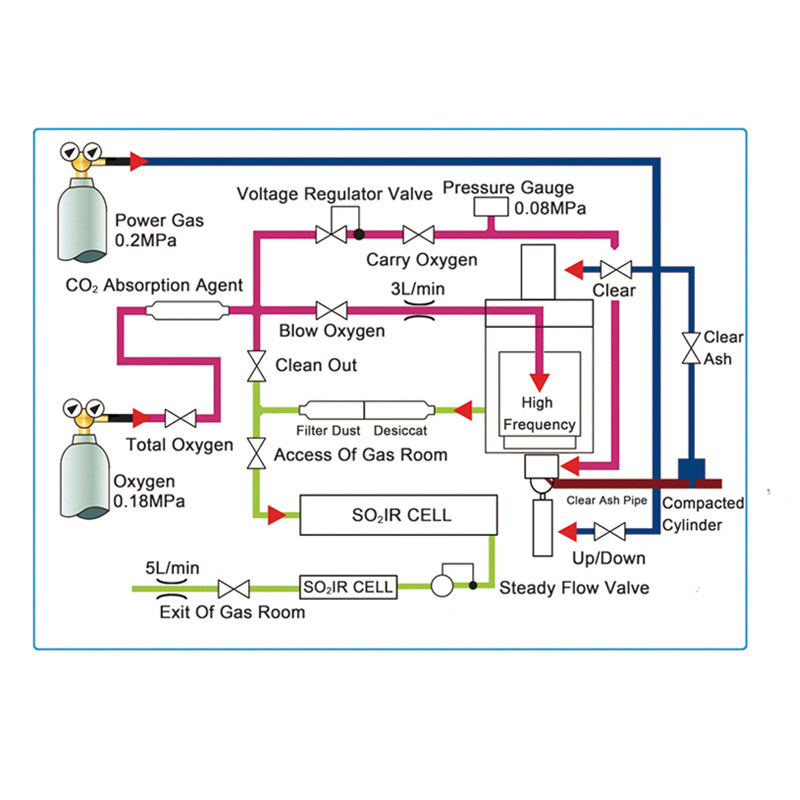

| Working Principle | High-frequency inductive combustion and infrared absorption system |
| Sample Weight (Solid steel) | Standard 0.5g |
| Accuracy | C/S: 0.1 ppm |
| Analysis Time | 25-60s adjustable (normally: 35s) |
| Working Cycle | 24 hours |
| Model | BK-CSA5 | BK-CSA6 |
| Appearance | Desktop detector, with desktop high-frequency furnace, save space | Separate work station, with vertical high-frequency furnace |
| Analysis Range | C: 0.0005%-6.0000% (can be extended to 99.999%) S: 0.0005%-0.5000% (can be extended to 99.999%) | C: 0.0001 %-10.0000% (can be extended to 99.999%) S: 0.0001 %-3.50000% (can be extended to 99.999%) |
| Analysis Pool | 2 pools | 2 pools (optional 4 pools) |
| Consumption | 2.2KW | 2.5KW |
| Power Supply | AC220V±10%, 50/60HZ | |
| Package Size(W*D*H) | 1380*760*980mm | 1670*750*960mm, 750*580*1430mm |
| Gross Weight | 193kg | 150kg, 180kg |
| Standard Accessories | Main unit, high frequency automatic inductive combustion furnace, electric balance | |
| 1000 times effective analysis of spare parts | ||
