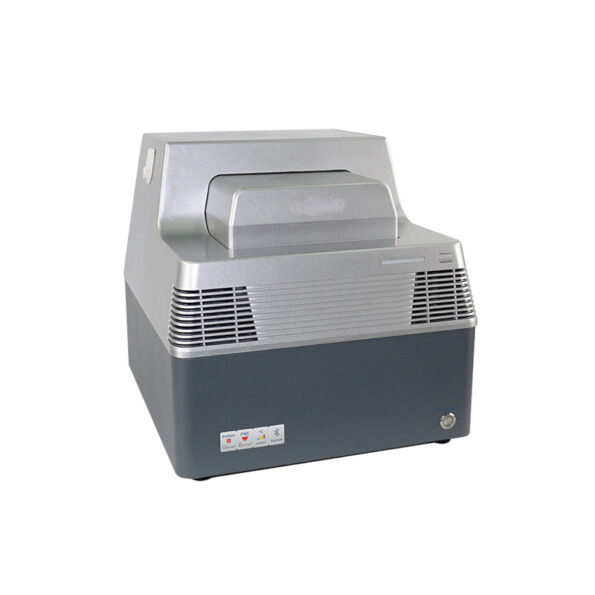

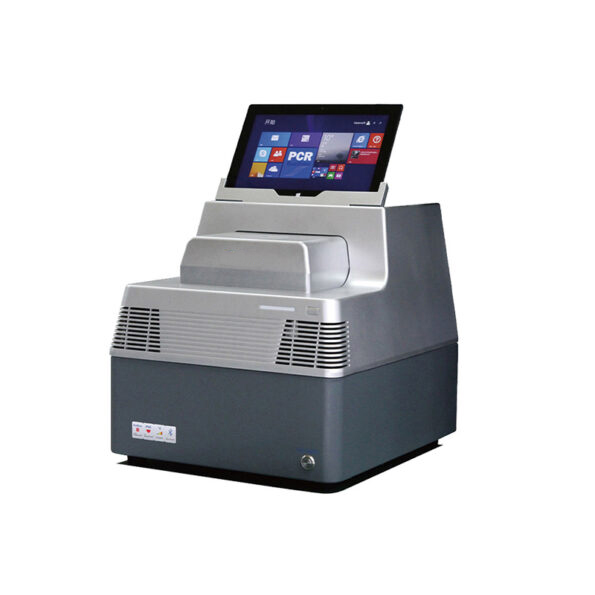

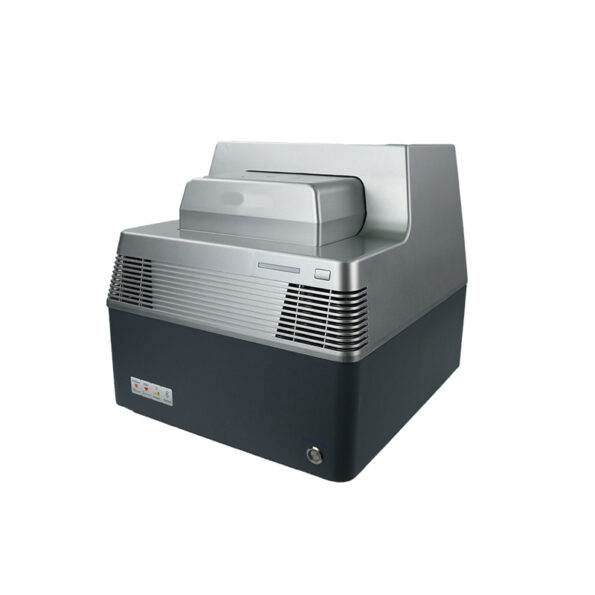

KAZKAZ BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features：
1. Whole block scanning and formulated line scanning mode, 96-well double-colour scaning takes only 5.5s
2. 6 channels fluorescencedetection,no cross talk between different channels.
3. Unique bottom detection,compatible to reaction volume down to 5μl
4. New automatic hot lid,automatic open and close which is prevenT reagent evaporation
5. LED excitation light source with super long service life
6. New TE module with special technique to ensure long service life
7. Available for a variety of scientific research and clinical applications.
BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler
Models:
Technical Parameters
| Product Name | Fluorescence Quantitative PCR Detection System | |||||
| Model | FQD-96A | |||||
| Sample Capacity | 96x0.2ml PCR plate, 12x8-strip tubes, 96*0.2ml single tube(Transparent Bottom) | |||||
| Reaction system | 5~100μl | |||||
| Dynamics Range | 1-1010 | |||||
| Medical instrument registration certificate | G.X.Z. 20153400273 | |||||
| Channel | 4 | |||||
| Emission Wavelength | 500-800nm | |||||
| Detection path | F1 | F2 | F3 | F4 | F5 | F6 |
| Suitable probe.dye | FAM,SYBR GREEN I | HEX/VIC/TET/JOE/CY3/NED/TAMRA | ROX,TEXAS-RED | Cy5 | Cy5.5 | Reserved path |
| Excitation wavelength | 300~800nm | |||||
| Detection wavelength | 500~800nm | |||||
| Module temp. range | 4-105℃(resolution:0.1℃) withSOAK Low Temp.storage Function | |||||
| RampRate | 4.0℃/s(max) | |||||
| Temp. Control accuracy | ±0.1℃ | |||||
| Temp. uniformity | ≤ ±0.3℃ | |||||
| Temp. control mode | Block mode andTube Mode (Automaticcontrolbasedonliquid level) | |||||
| Operation mode | Continuous operation | |||||
| Gradient Temp. Range | 1-36℃ | |||||
| Hot-lid Temp. Range | 30-110℃(Adjustable, Defaultby105℃ and Automatic Hot-lid) | |||||
| FluorescenceintenseDetection Repeatability | 5% | |||||
| Scanning Mode | Full plate scanning and designated line scanning | |||||
| Programming | Max 20 Segments for Each Program, Max 99 Cycles | |||||
| Operation Mode | Continuous | |||||
| Scanning time | 5.5s | |||||
| Special function | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curveanalysis,6 independent temperature zones, HRMmulti-channel crosstalk calibration, background correction, auto gain, customized parameters,etc | |||||
| Operation system | Microsoft:Windows7/Windows8.1/ Windows10 Software:excel2000/2002/2003/2007/2012 | |||||
| Min computer configuration | RAM:512M,hardware space:10GB CPU:Pentium 4 virtual memory≥1000MB | |||||
| Power supply | 100-240V 50/60Hz 600W | |||||
| Dimension(L*W*H) | 410*386*352mm | |||||
| Port method | SupportUSBandRS232data port andBluetoothport | |||||
| Certification | Ferrotec Peltier/CE/EMC/RoHS2.0/PICC Product quality liability insurance/IVD/MET | |||||
| Packing size | 720*680*640mm | |||||
| Gross weight | 55kg | |||||
