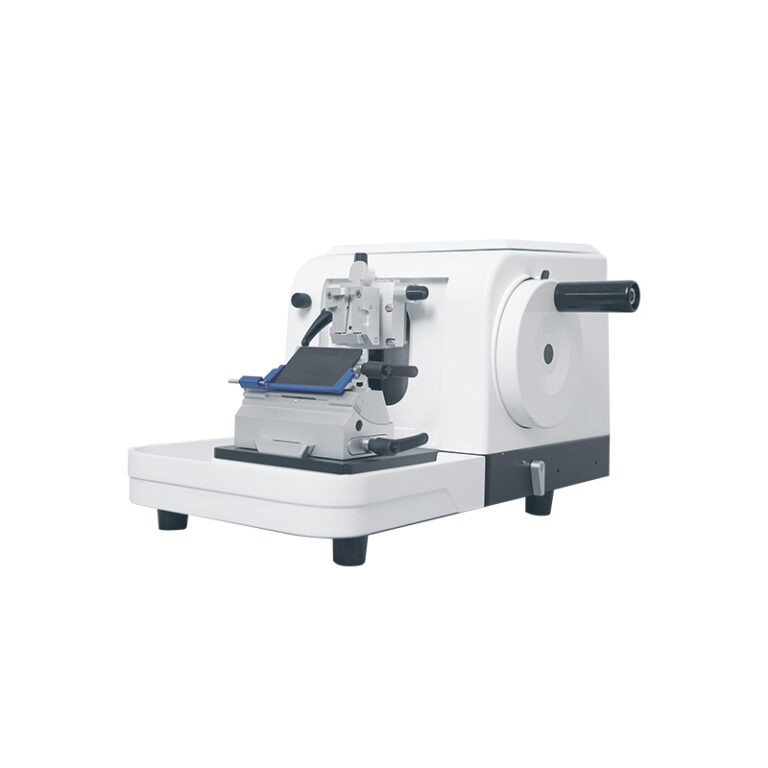

Automatic Microtome BK-2178

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Introduction:
Microtome is used for sectioning thin and uniform tissue slices. The BK-2178 Microtome can section slices and trimmings between 0 and 60μm with a minimum adjustable index value of 0.5μm, which enables fast and accurate slicing operations. Equipped with a lengthening blade adapter and tool post to protect the safety of the operator and enable better tool retracting.

  • Automatic Microtome BK-2178

    Request a Call Back

    •  Ask a Question

      Automatic Microtome BK-2178

      Ask a Question


        Share
      Automatic Microtome BK-2178
      Features: * Precision cross-roller guide, equipped with stainless steel holder, to ensure long-lasting operation of the equipment. * Equipped with multi-angle adjustment device, easy to use. (Optional embedding chuck) * Magnetic removable waste chute, easy to clean. * Two-piece storage board, which can place blade embedding box and other related disposable items. * Large hand wheel double lock, and can be single-locked at any point, also double-locked at the highest point and any point, to ensure the safe exchange of knives and samples. Technical Parameters:
      Model BK-2178
      Sectioning Thickness Range 0~60μm
      Trimming Thickness Range 0~60μm
      Mini. Sectioning Thickness 0.5μm
      Precision ±5%
      Max Specimen Size 50×70(mm)
      Specimen Stroke Horizontal: 28mm, vertical: 52mm
      Tool Holder Stroke The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm.
      Sample Adjustment Direction Horizontal 8° Vertical 8° Rotation 360°
      External Size(L*W*H) 537x465x306(mm)
      Net Weight 29kg
      Packing Size(L*W*H) 597*523*355mm
      Gross Weight 39kg
