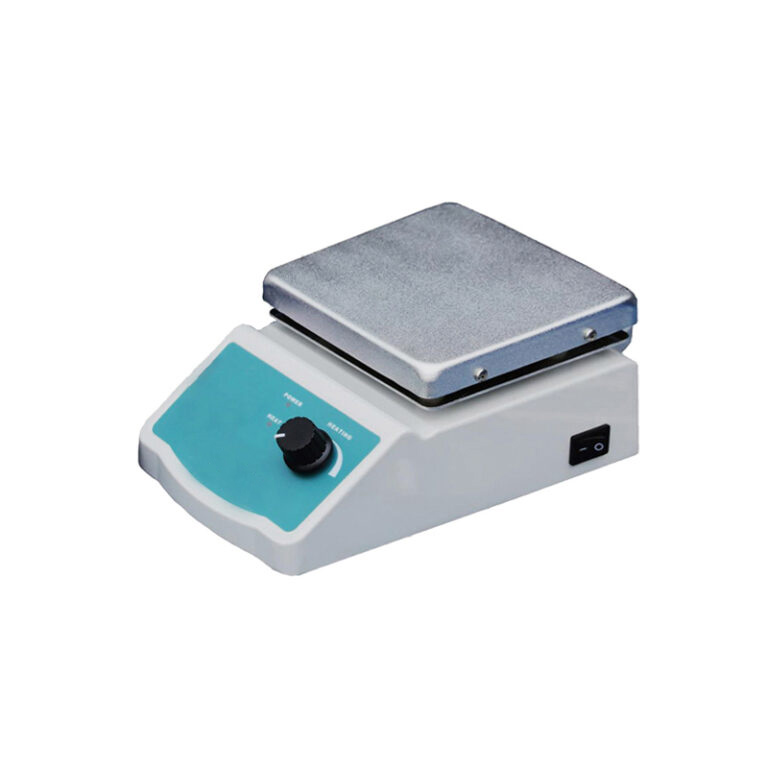

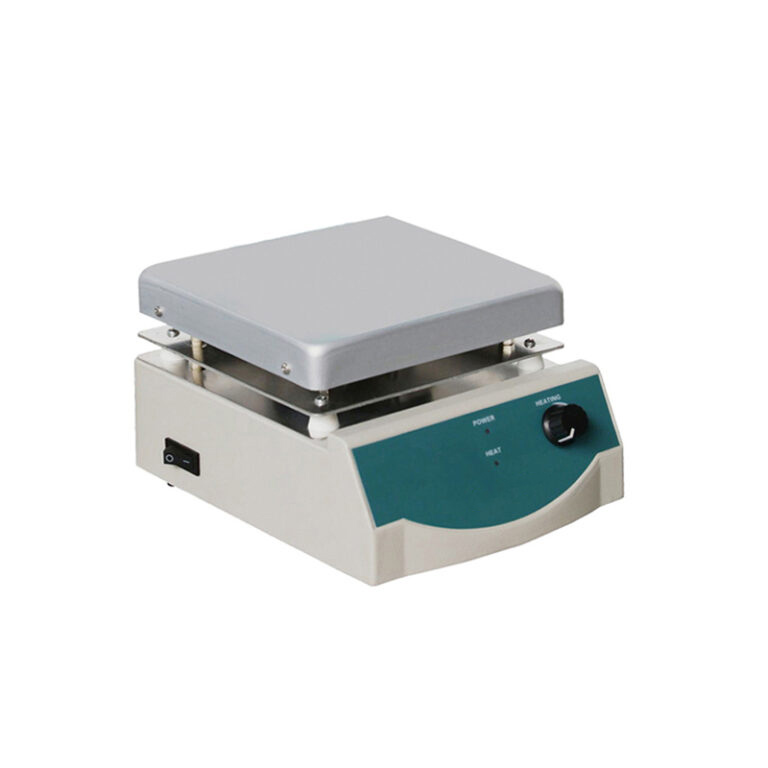

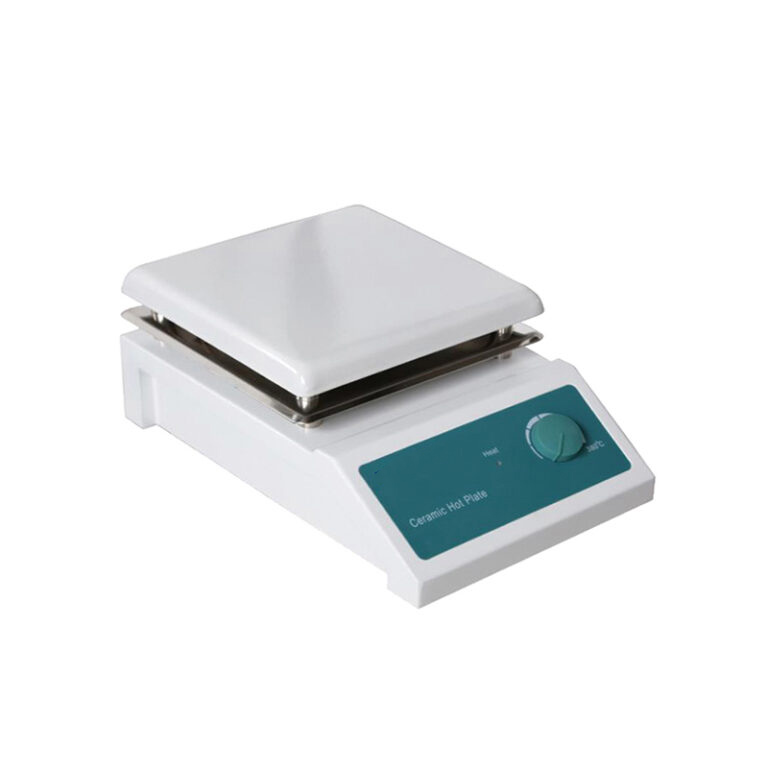

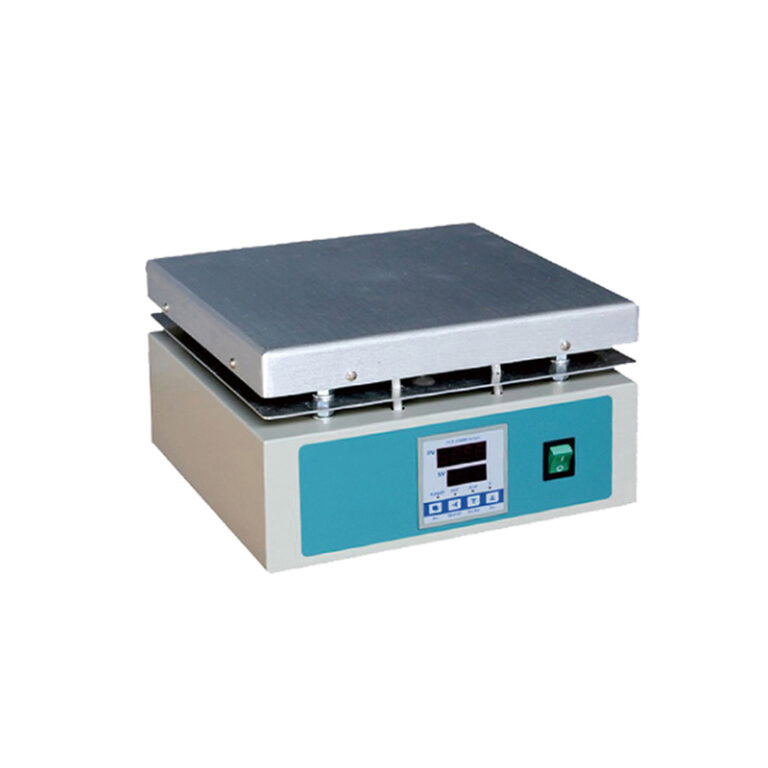

Aluminum/Ceramic Hot Plate
Brand:
Kazkaz Technologies
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*LED display (AH-400D/AH-600D)
*Heating can proceed simultaneously
Enclosed hot plate with flame protection, fast warm-up and durability
Aluminum/Ceramic Hot Plate
Technical Parameters:
| Model | AH-120E | AH-170E | CH-190E | AH-400E/D | AH-600E/D |
| Plate Size | 120*120mm | 170*170mm | 190*190mm | 400*400mm | 400*600mm |
| Max. Temperature | RT~380°C | RT 〜350°C | |||
| Work Plate Material | Aluminum | Ceramic | Aluminum | ||
| Power Supply | AC110/220V±10%, 50/60HZ | AC220V±10%,50/60Hz | |||
| Consumption | 180W | 500W | 600W | 2000W | 3000W |
| External Size(W*D*H)mm | 200*120*90 | 265*185*190 | 320*190*125 | 400*400*180 | 400*600*180 |
| Package Size(W*D*H)mm | 250*180*190 | 280*210*220 | 390*240*230 | 450*470*220 | 470*650*220 |
| Gross Weight(kg) | 3 | 3.4 | 6 | 9.8 | 14.2 |
Related Products
Brand: Kazkaz Technologies
Graphite Hot Plate GH-300 GH-400 GH-450 GH-600
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Using a new heating method, the heating body is made of isostatically pressed high-purity graphite with excellent thermal conductivity, which has excellent corrosion resistance.
Brand: Kazkaz Technologies
Glass Ceramic Hot Plate HP550-S
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
*LED display.
*Totally enclosed glass ceramic heating plate, provides chemical-resistant and most efficient heat transfer.
*Separate safety circuits with fixes safety temperature of 580°C.
*External temperature control is possible by connecting the temperature sensor (PT 1000) with and accuracy at ±0.5°C.
*Alarm: The HOT warning will flash when the heating plate temperature is over 50°C, even the heating plate is turn off.
Brand: Kazkaz Technologies
KAZKAZ SSH Series Electronic Digital Hot Plates
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features：
1. PID controller.
2. Totally enclosed high quality stamping cold – rolled steel heating plate, with no open fire
3. SSH-E type, adopts electric temperature control, could adjust temperature.
SSH-D type, with LCD display, easy to observe and control temperature.
4. Control style: SSH-E electric type SSH-D digital type.
Brand: Kazkaz Technologies
KAZKAZ CH-300 CH-400 Laboratory Electric Ceramic Hot Plate
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Features:
1. PID controller
2. Totally enclosed ceramic heating plate, with halogen-light, heating up fast, safe and reliable.
Brand: Kazkaz Technologies
Graphite Hot Plate GH-300 GH-400 GH-450 GH-600
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Double shell design, with anti-corrosion power coating, keeps the normal work of the instrument in acid environment.
