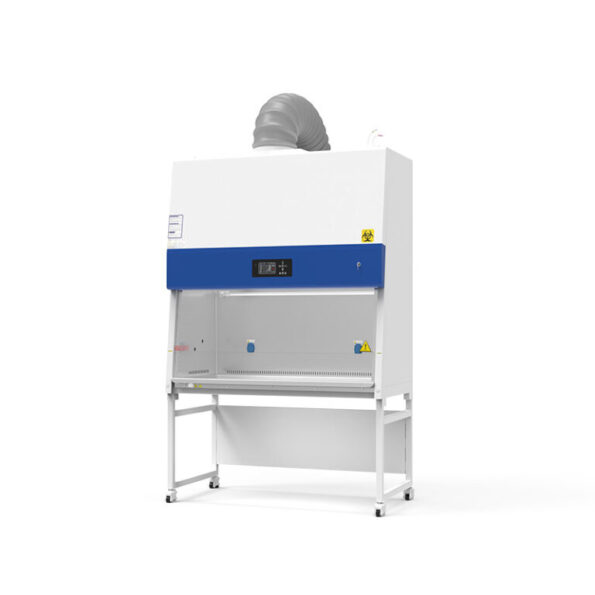

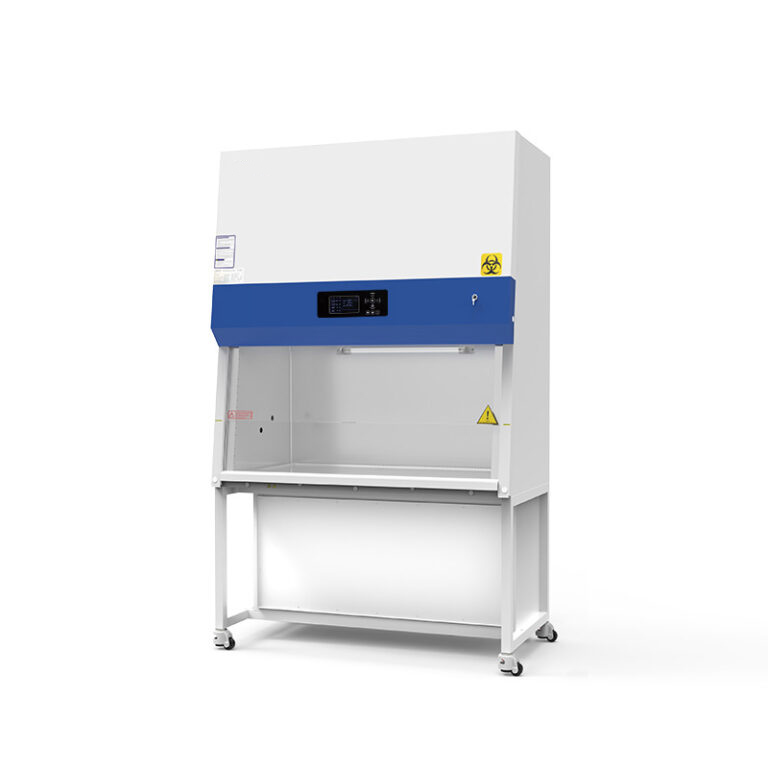

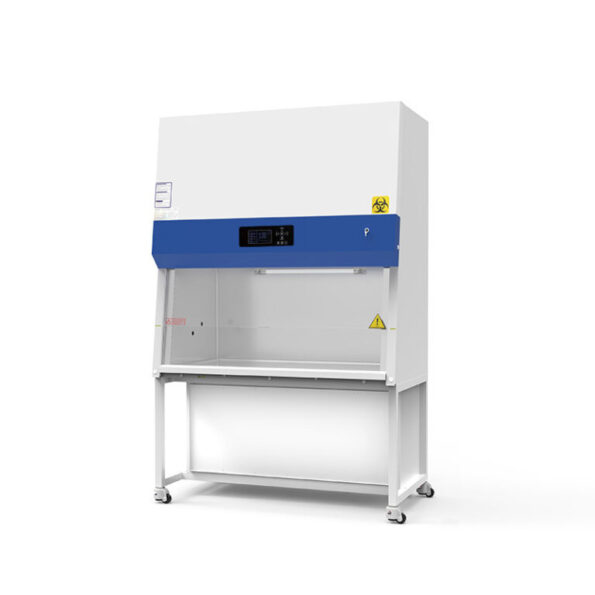

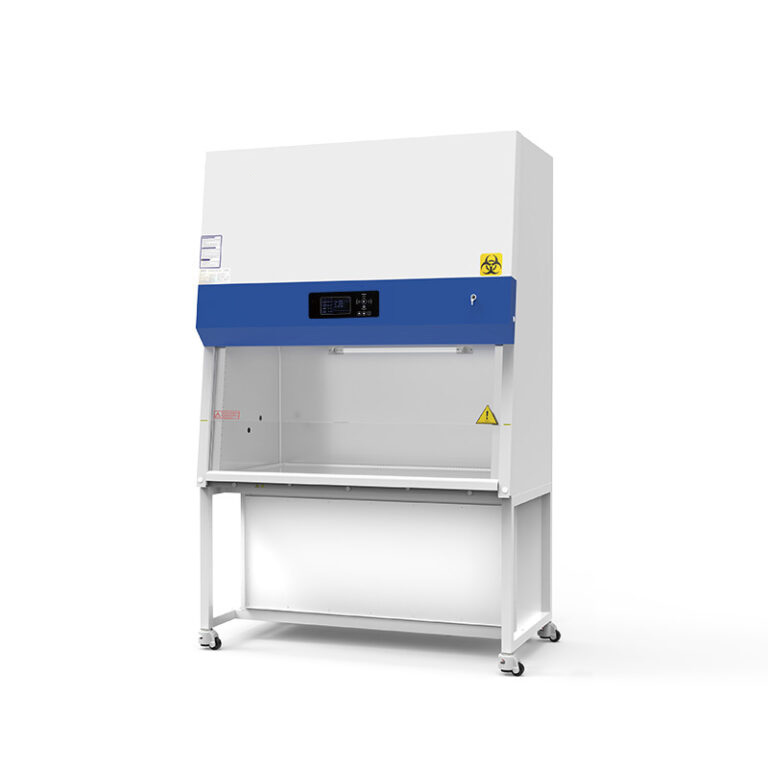

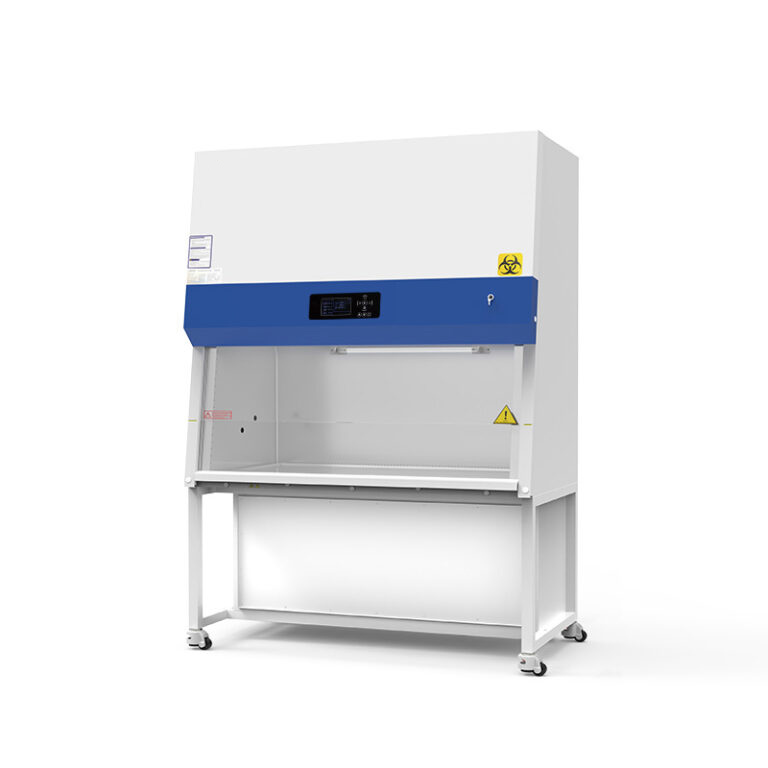

AC Series Class II B2 Biological Safety Cabinet BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Introduction:
The AC Series Class II B2 Biological Safety Cabinet is a high-performance containment unit designed for laboratories handling hazardous biological materials and chemical compounds. Unlike traditional Class II cabinets, the B2 model provides 100% total exhaust, ensuring that all potentially harmful air is completely expelled from the laboratory, making it ideal for applications requiring both biological and chemical safety.

  • AC Series Class II B2 Biological Safety Cabinet BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X

    Request a Call Back

    •  Ask a Question

      AC Series Class II B2 Biological Safety Cabinet BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X

      Ask a Question


        Share
      Features: 1. Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing. 2. Automatically adjust the wind speed. 3. With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms. 4. The integrated design of the operation area makes it easy to disassemble and clean. 5. The cabinet is separated from the base. The height of the adjustable base can be customized. 6. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window. 7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets. 8. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on. 9. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product. 10. The front window glass has a one-key lift function. 11. The cabinet is designed with a 10° inclination angle, which is in line with ergonomic principles, with a larger viewing angle, convenient operation and more humanization. 12. The one-piece hand rest has a large fat surface, which has a larger contact area with the arm and is more comfortable. AC Series Class II B2 Biological Safety Cabinet Technical Parameters:
      Model BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X
      External Size(W*D*H) 1100*775*2250mm 1300*775*2250mm 1500*775*2250mm 1800*775*2250mm
      Internal Size(W*D*H) 940*600*660mm 1150*600*660mm 1350*600*660mm 1625*600*660mm
      Tested Opening Safety height 200mm(8")
      Max Opening 480mm
      Inflow Velocity 0.53±0.025m/s
      Downflow Velocity 0.33±0.025m/s
      ULPA Filter Two, 99.9995% efficiency at 0.12μm, filter life indicator
      Front Window Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
      Noise ≤65dB
      UV Lamp 30W*1 30W*1 40W*1 40W*1
      UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination
      LED Lamp 12W*2 14W*2 16W*2 16W*2
      Illumination ≥1000Lux
      Consumption 1300W 1300W 1300W 1300W
      Waterproof Socket Two, total load of two sockets: 500W
      Display LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
      Control System Microprocessor
      Airflow System 0% air recirculation, 100% air exhaust
      Visual and Audio Alarm Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure
      Material Work Zone: 304 stainless steel
      Main Body: Cold-rolled steel with anti-bacteria powder coating
      Work Surface Height 770mm(can be customized) 800mm(Can be customized)
      Caster Footmaster caster
      Power Supply AC220V, 50/60Hz; 110V, 60Hz
      Standard Accessory LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct
      Optional Accessory Water and gas tap, Electric height adjustable base stand, Armrest
      Gross Weight 243kg; 52kg 282kg; 64kg 300kg; 64kg 408kg; 64kg
      Package Main Body Exhaust Blower(W*D*H) 1230*990*1840mm 1430*990*1840mm 1630*990*1840mm 1930*990*1840mm
      930*800*700mm 930*860*740mm 930*860*740mm 930*860*740mm
