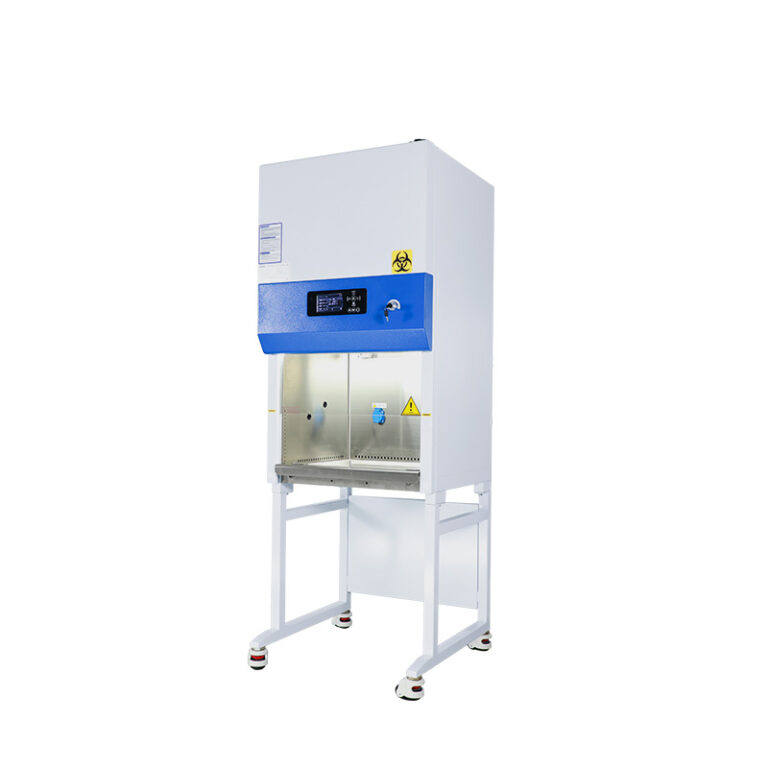

AC Series Class II A2 Biological Safety Cabinet BSC-700IIA2-Z

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Model BSC-700IIA2-Z

Introduction:
Biological safety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.

  • AC Series Class II A2 Biological Safety Cabinet BSC-700IIA2-Z

    Request a Call Back

    •  Ask a Question

      AC Series Class II A2 Biological Safety Cabinet BSC-700IIA2-Z

      Ask a Question


        Share
      Features: 1. Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing. 2. Automatically adjust the wind speed. 3. With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms. 4. The integrated design of the operation area makes it easy to disassemble and clean. 5. The cabinet is separated from the base. The height of the adjustable base can be customized. 6. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window. 7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets. 8. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on. 9. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product. 10. The front window glass has a one-key lift function 11. The one-piece hand resting surface has a larger contact area with the arm and is more comfortable. Technical Parameters:
      Model BSC-700IIA2-Z
      External Size(W*D*H) 700*650*1920mm(700*650*1280mm without base stand)
      Internal Size(W*D*H) 600*500*540mm
      Tested Opening Safety height 200mm
      Max Opening 380mm
      Inflow Velocity 0.53±0.025m/s
      Down Flow Velocity 0.33±0.025m/s
      ULPA Filter Two, 99.9995% efficiency at 0.12μm, filter life indicator
      Front Window Motorized
      Noise ≤65dB
      UV Lamp 15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
      LED Lamp 8W*2
      Illumination ≥1000Lux
      Consumption ≤500W
      Socket Two, total load of two sockets: 500W
      Display LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
      Control System 70% air recirculation, 30% air exhaust
      Visual and Audio Alarm Filter replacement, window over height, abnormal air flow velocity, High filter pressure alarm, abnormal power failure
      Material Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria power coating
      Work Surface Height 750mm with base stand
      Power Supply AC220V, 50/60Hz; 110V, 60Hz
      Standard Accessory Cabinet*1, Base stand*1, LED Lamp*2, UV lamp*2, Remote control, Drain valve*1, Waterproof Socket*2, Foot swith
      Optional Accessory Water and gas tap, Electric height adjustable base stand, Armrest
      Package Size(W*D*H) Carton: 820*910*1500mm
      Gross Weight 165kg(145kg without base stand)
