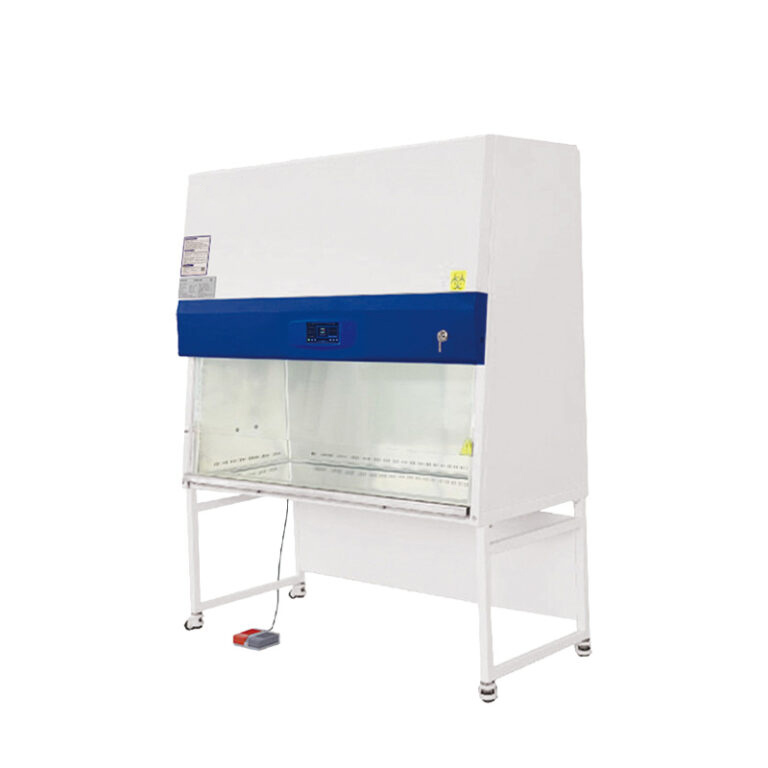

AC Series Class II A2 Biological Safety Cabinet

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Model BSC-1100â…¡A2-X BSC-1300â…¡A2-X BSC-1500â…¡A2-X BSC-1800â…¡A2-X BSC-2000â…¡A2-X

Introduction:
Biosafety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety

  • AC Series Class II A2 Biological Safety Cabinet

    Request a Call Back

    •  Ask a Question

      AC Series Class II A2 Biological Safety Cabinet

      Ask a Question


        Share
      Features: 1. Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing. 2. Automatically adjust the wind speed. 3. With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms. 4. The integrated design of the operation area makes it easy to disassemble and clean. 5. The cabinet is separated from the base. The height of the adjustable base can be customized. 6. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window. 7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets. 8. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on. 9. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product. 10. The front window glass has a one-key lift function 11. The cabinet is designed with a 10° inclination angle, which is in line with ergonomic principles, with a larger viewing angle, convenient operation and more humanization. 12. The one-piece hand rest has a large flat surface, which has a larger contact area with the arm and is more comfortable.   Technical Parameters:
      Model BSC-1100IIA2-X BSC-1300IIA2-X BSC-1500IIA2-X BSC-1800IIA2-X BSC-2000IIA2-X
      External Size(W*D*H) 1100*755*2200mm 1300*755*2200mm 1500*755*2200mm 1800*755*2200mm 1950*775*2200mm
      Internal Size(W*D*H) 940*600*660mm 1150*600*660mm 1350*600*660mm 1625*600*660mm 1800*600*660mm
      Tested Opening Safety height 200mm(8")
      Max Opening 480mm
      Inflow Velocity 0.53±0.025m/s
      Downflow Velocity 0.33±0.025m/s
      ULPA Filter Two, 99.9995% efficiency at 0.12μm, filter life indicator
      Front Window Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
      Noise ≤65dB
      UV Lamp 30W*1 30W*1 40W*1 40W*1 40W*1
      UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
      LED Lamp 12W*2 14W*2 16W*2 16W*2 12W*4
      Illumination ≥1000Lux
      Consumption 600W 800W 1300W 1300W 1700W
      Waterproof Socket Two, total load of two sockets: 500W
      Display LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
      Control System Microprocessor
      Airflow System 70% air recirculation, 30% air exhaust
      Visual and Audio Alarm Abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm, abnormal power failure
      Material Work Zone: 304 stainless steel
      Main Body: Cold-rolled steel with anti-bacteria powder coating
      Work Surface Height 770mm(Can be customized) 800mm(Can be customized)
      Caster Footmaster caster
      Power Supply AC220V, 50/60HZ;110V, 60HZ
      Standard Accessory LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs
      Optional Accessory Water and gas tap, Electric height adjustable base stand, Armrest
      Gross Weight 220kg 280kg 316kg 366kg 420kg
      Package Size(W*D*H) 1230*990*1840mm 1430*990*1840mm 1630*990*1840mm 1930*990*1840mm 2080*990*1840mm
